IG-150-NC

Internal Grinding Machine IG-150-NC / IG-150-2NC is an economical but efficient inner diameter Grinders with a conversational man-machine control interface, which makes the operation more intuitive. The feed axis of the equipment adopts precision ball screw and servo motor. The left and right sliding table of NC Series is driven by hydraulic. For 2NC Series, the left and right sliding table adopts ball screw and servo motor.

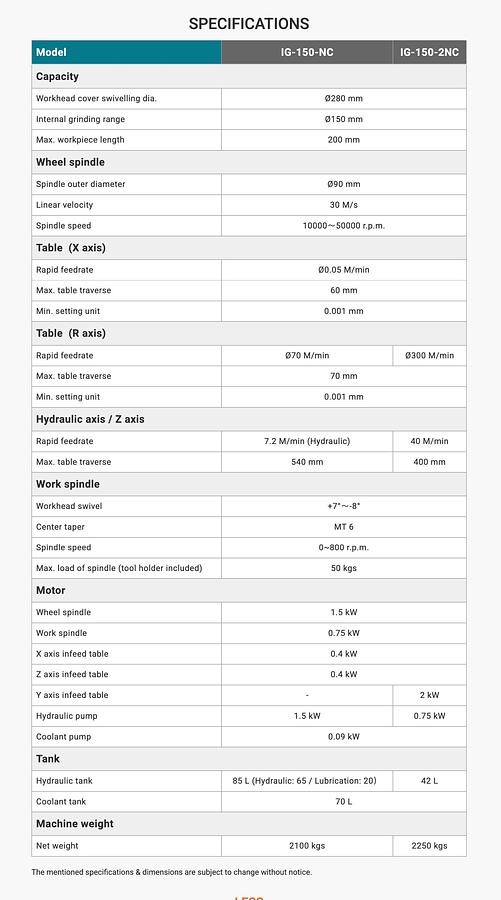

IG NC Series
Ø150 mm Internal grinding range
200 mm Max. workpiece length
60 / 70 mm Max. table traverse ( X / Z )
