Alignment
& Calibration
Services

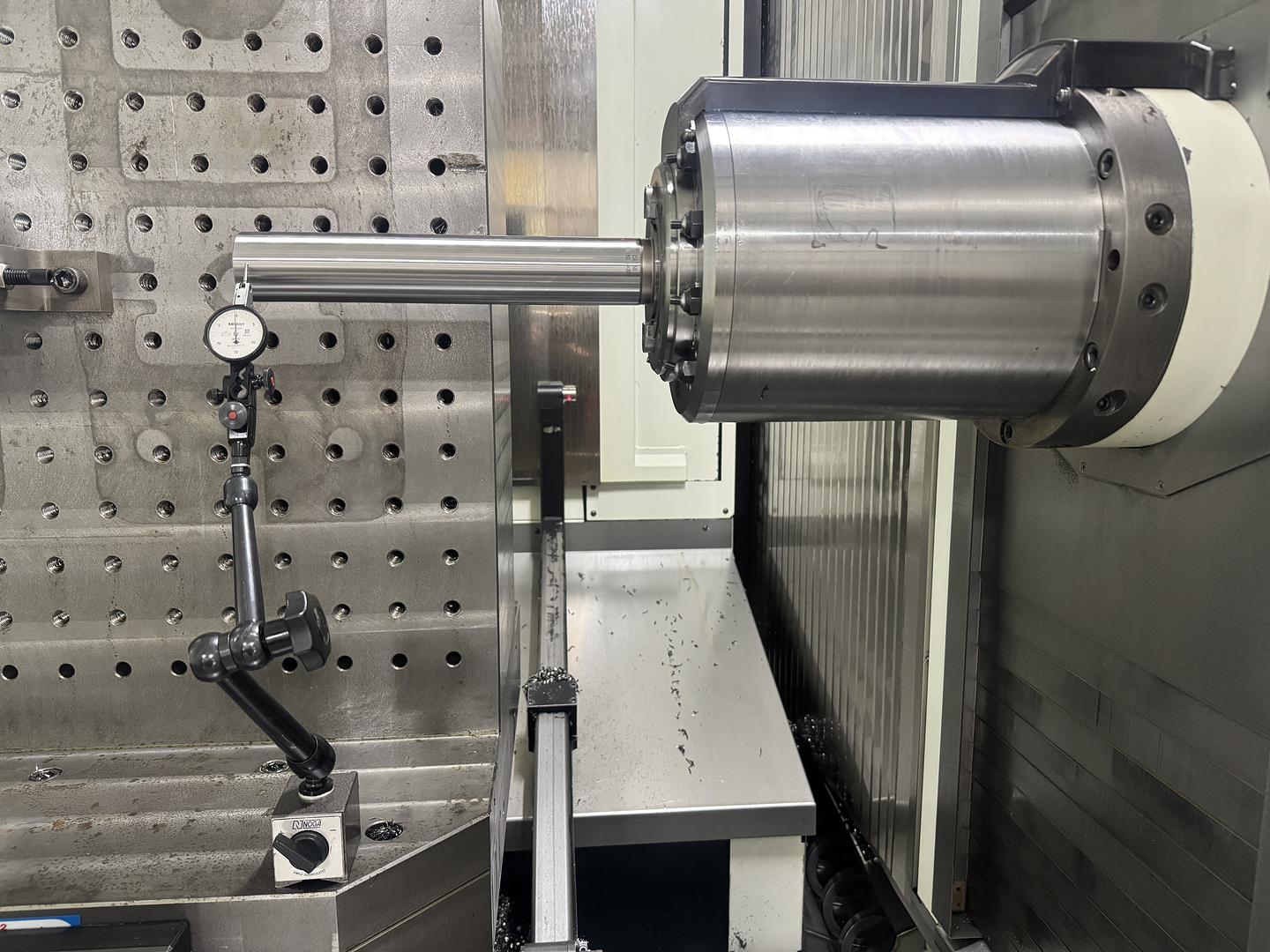

We provide professional CNC alignment and calibration services designed to restore and maintain the accuracy, consistency, and performance of your machine tools. Proper alignment and calibration are essential for ensuring every axis moves correctly and that the machine produces parts within required tolerances.
Even small deviations in geometry or calibration can lead to dimensional errors, poor surface finishes, and increased tool wear—making this service critical for both quality and efficiency.
- Geometry Evaluation
- Axis Alignment
- Machine Leveling
- Spindle Orientation
- Positioning Calibration
- Control Parameters

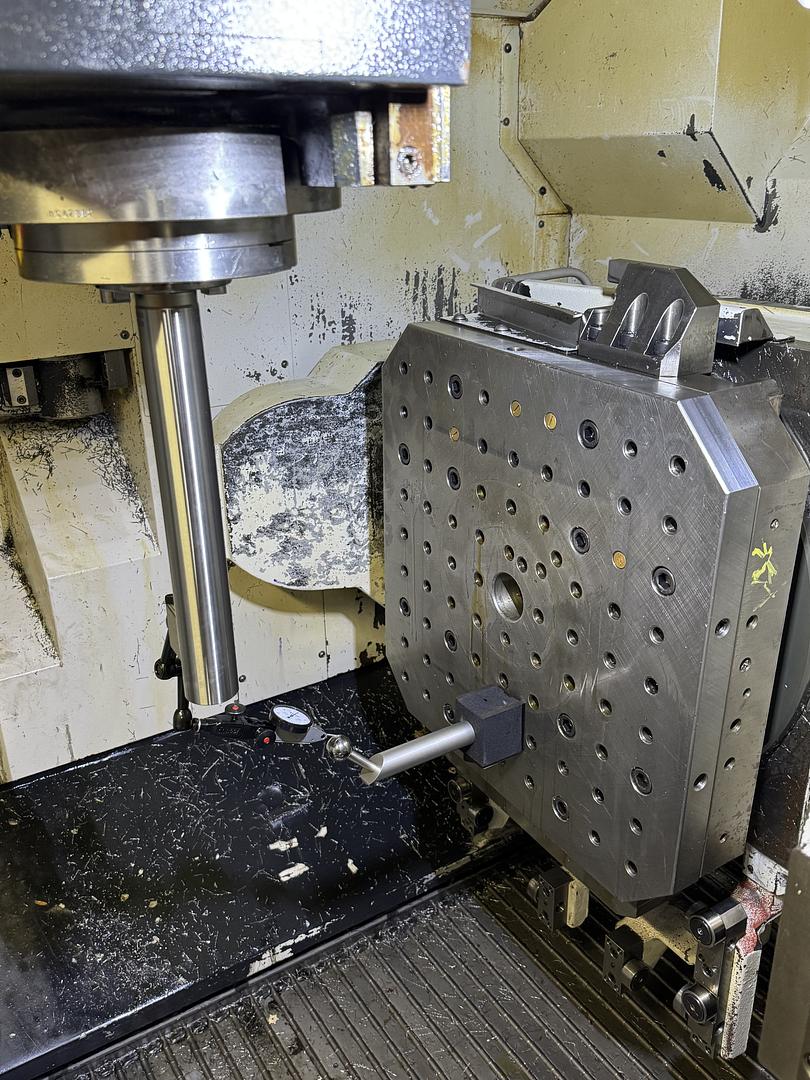

Our Process
Our process begins with a comprehensive evaluation of your machine's geometry—including axis alignment, spindle orientation, and overall structural condition. Using precision measurement tools, we assess how each component performs during operation and identify any deviations from factory specifications, determining whether issues stem from mechanical misalignment, calibration drift, or both.
Once the evaluation is complete, we perform precise alignment adjustments and calibration procedures to restore proper machine geometry and motion accuracy. This may include leveling the machine, correcting axis alignment, calibrating positioning systems, and fine-tuning control parameters to ensure consistent movement and repeatability across the full range of travel.

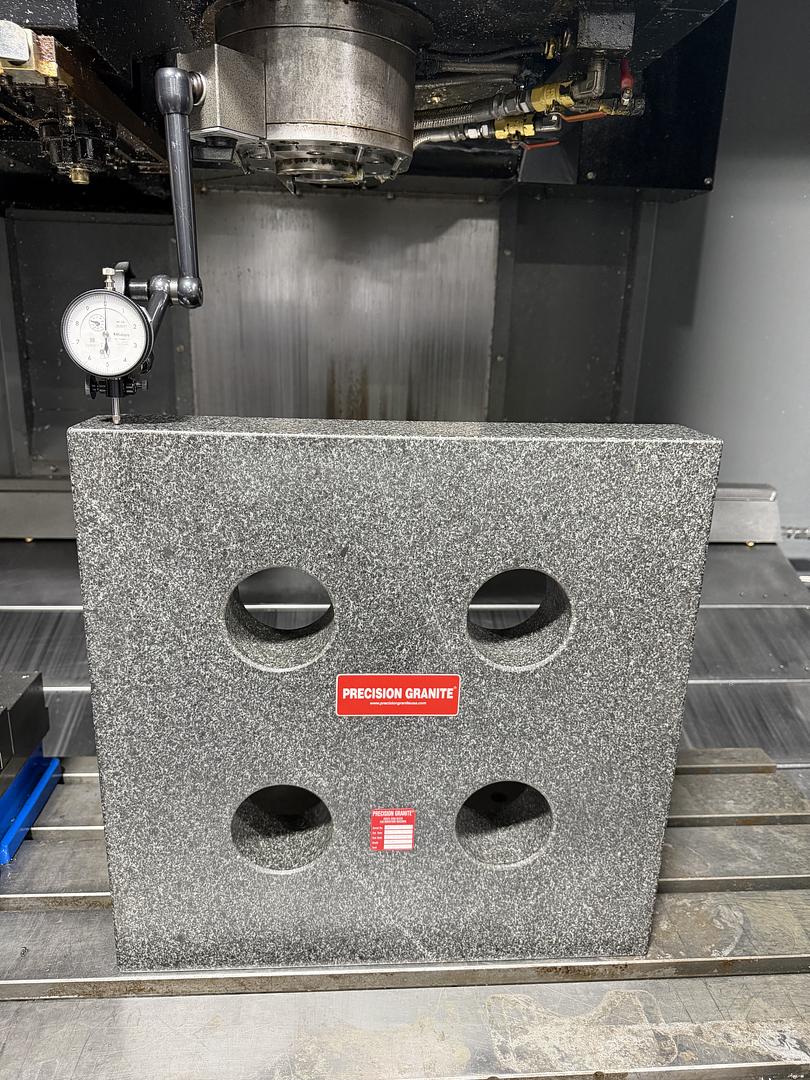

Mill Alignments
At MVC CNC Services, we provide precise mill alignment services to ensure your CNC milling machines maintain flatness, perpendicularity, and overall geometric accuracy across all axes. Proper alignment is essential for producing high-quality parts, as even small deviations can lead to dimensional errors, poor surface finishes, and inconsistencies across production runs. Our process begins with a detailed evaluation of the machine’s geometry, including table flatness, spindle alignment, and axis perpendicularity.
Using precision measurement tools, we assess how each axis moves in relation to the others to identify any misalignment, wear, or deviation that may be affecting machining performance. Once issues are identified, we perform targeted adjustments to restore proper alignment throughout the machine.
This may include correcting axis squareness, adjusting guideways, and recalibrating key components to ensure smooth, accurate motion. These corrections are essential for maintaining tight tolerances and ensuring that parts are produced exactly as programmed.
Key Service Areas
Geometry Evaluation
A detailed assessment of axis alignment, spindle orientation, and structural condition using precision measurement tools—identifying all deviations from factory specifications before any corrections are made.
Alignment Adjustments
Precise mechanical corrections restore proper machine geometry—leveling the machine, correcting axis alignment, and ensuring smooth, accurate movement throughout each axis's full range of travel.
Positioning Calibration
Calibration of positioning systems and control parameters restores repeatability and consistency across all programmed movements, returning the machine to optimal operating condition.
Performance & Longevity
Accurate alignment reduces scrap, improves surface finish, and extends the life of critical components—especially important for operations requiring tight tolerances or high production volumes.
Precision
Alignment
Services
Select a service below to expand details.

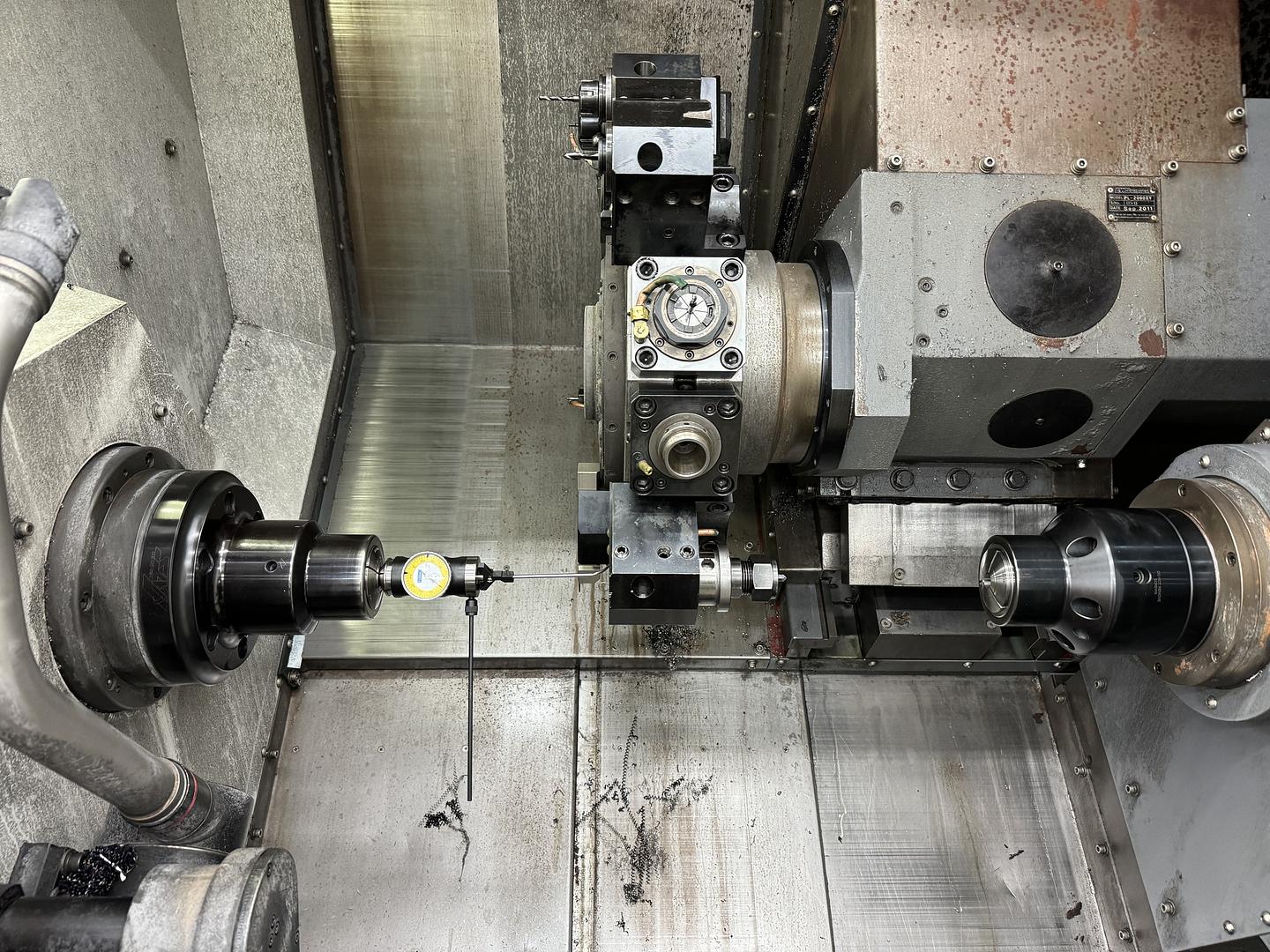

ALathe Alignments
Even minor deviations in spindle orientation or axis movement can cause taper, dimensional inaccuracies, and poor surface finish. We evaluate the lathe's geometry—spindle alignment, bed condition, and axis travel—then perform targeted corrections including guideway adjustments and axis fine-tuning.
Results are validated with test cuts checking for taper, roundness, and dimensional consistency under actual cutting conditions—ensuring your lathe performs correctly in production, not just in theory.
BMill Alignments
Small deviations in table flatness, spindle alignment, or axis perpendicularity lead to dimensional errors and inconsistent part quality. Using precision measurement tools, we evaluate all axis relationships and perform targeted corrections—adjusting axis squareness, guideways, and critical components to restore accurate motion within tight tolerances.
Routine alignment checks also help catch early wear before it develops into more costly repairs or production delays.
CCenter of Rotation & Squareness
In multi-axis machining, rotational positioning errors cause significant dimensional inaccuracies. We use advanced measurement techniques to identify any offset, then perform precise calibration and parameter adjustments to align the rotational axis with the machine's coordinate system—ensuring accurate interpretation during complex operations such as contouring, angled drilling, and 4- or 5-axis cutting.
Alongside this, we provide squareness checks—evaluating axis relationships and restoring true perpendicularity—giving your machine the geometric foundation needed for consistent, high-quality parts.
Precision Starts Here
Schedule Your Alignment
& Calibration Service
