VIG-50 / 80 / 120

Our CNC Vertical Grinding Machines have excellent machining capabilities and accuracy. The X and Y axes adopt cross roller type linear guideways, which have extra heavy loading capacity. The machine base adopts honeycomb tubular and cross guideway structure providing a stable foundation. In terms of thermal countermeasures, we have increased the isolation area between the processing area and the machine base to reduce thermal deformation and prevent dirt from entering the machine base. At the same time, the equipment is also equipped with an ATC automatic tool change system to achieve efficient tool change.

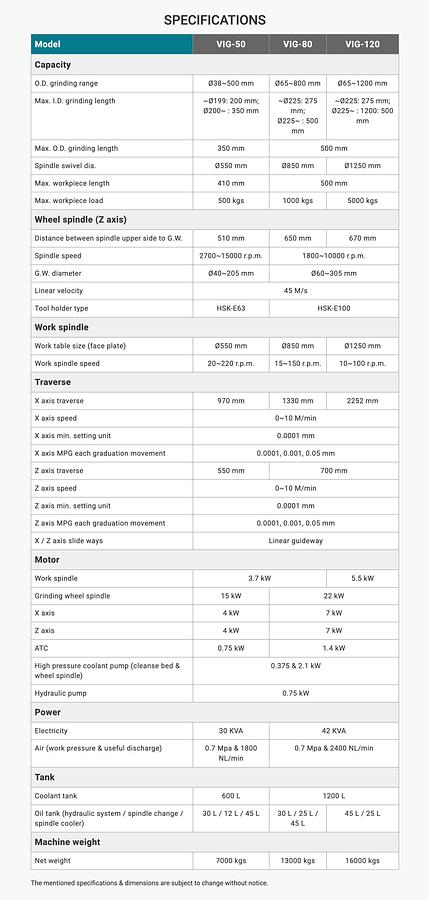

VIG CNC Series
Ø550 / 850 / 1250 mm Work table size (face plate)
410 / 500 / 500 mm Max. workpiece length
500 / 1000 / 5000 kgs Max. workpiece load
