MicroTurn Grind Mill Turn

Compact vertical design combining submicron turning with a precision grinding wheel and internal grinding spindles.

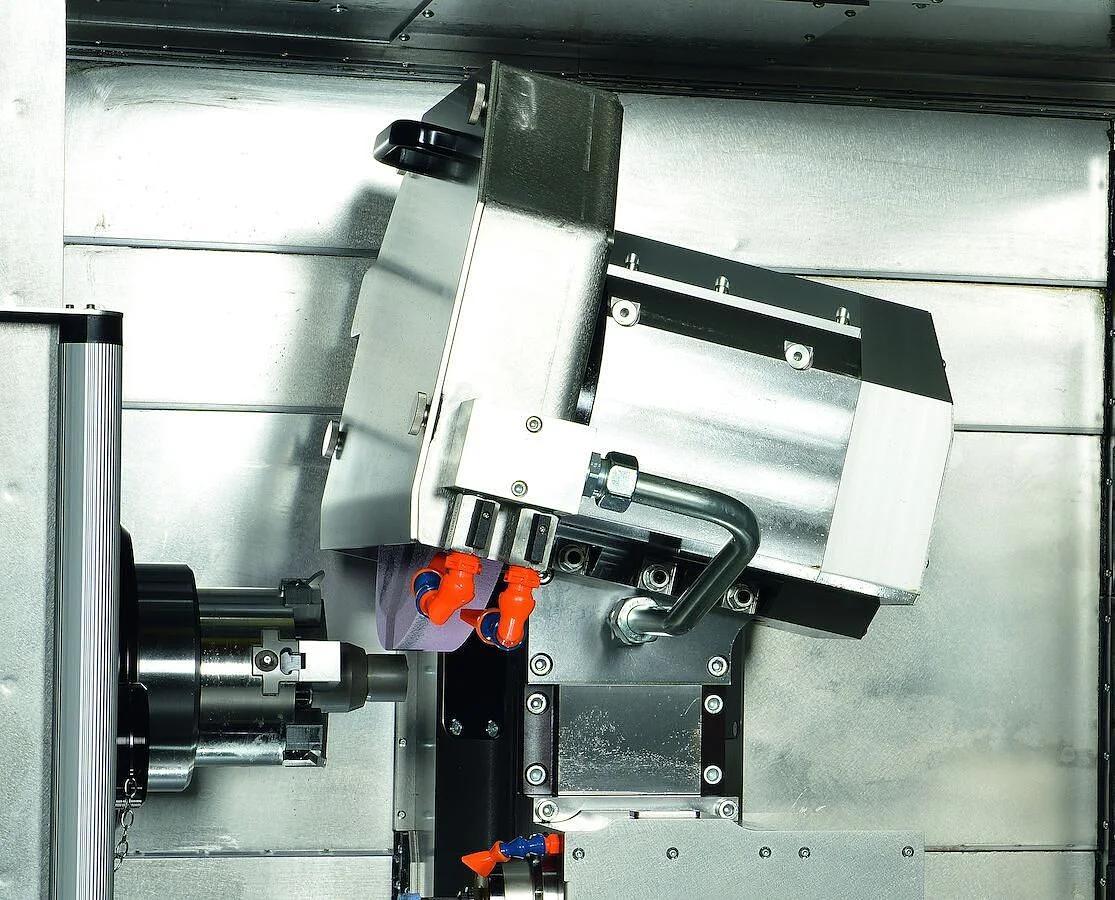

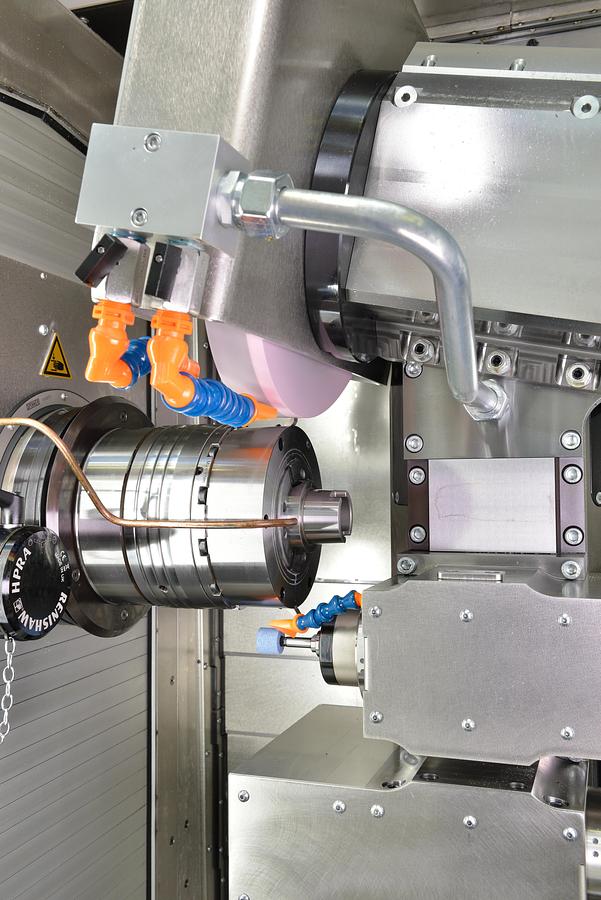

Our MicroTurn Grind is the first true combination of an ultraprecision hard turning machine and an internal and external grinding machine. You can not only fine-turn your workpieces with high precision in the hard condition (heat-treated), but also grind them using a 400mm (15.74″) external grinding wheel and up to two high-performance internal grinding spindles.

Hard machining of threads, recesses and contours is also possible thanks to the machine’s full turning functionality with up to 10,000 rpm on the workpiece spindle. Grinding of non-circular polygon shapes can also be accomplished with the high-precision C-axis interpolation of the workpiece at creep speed.

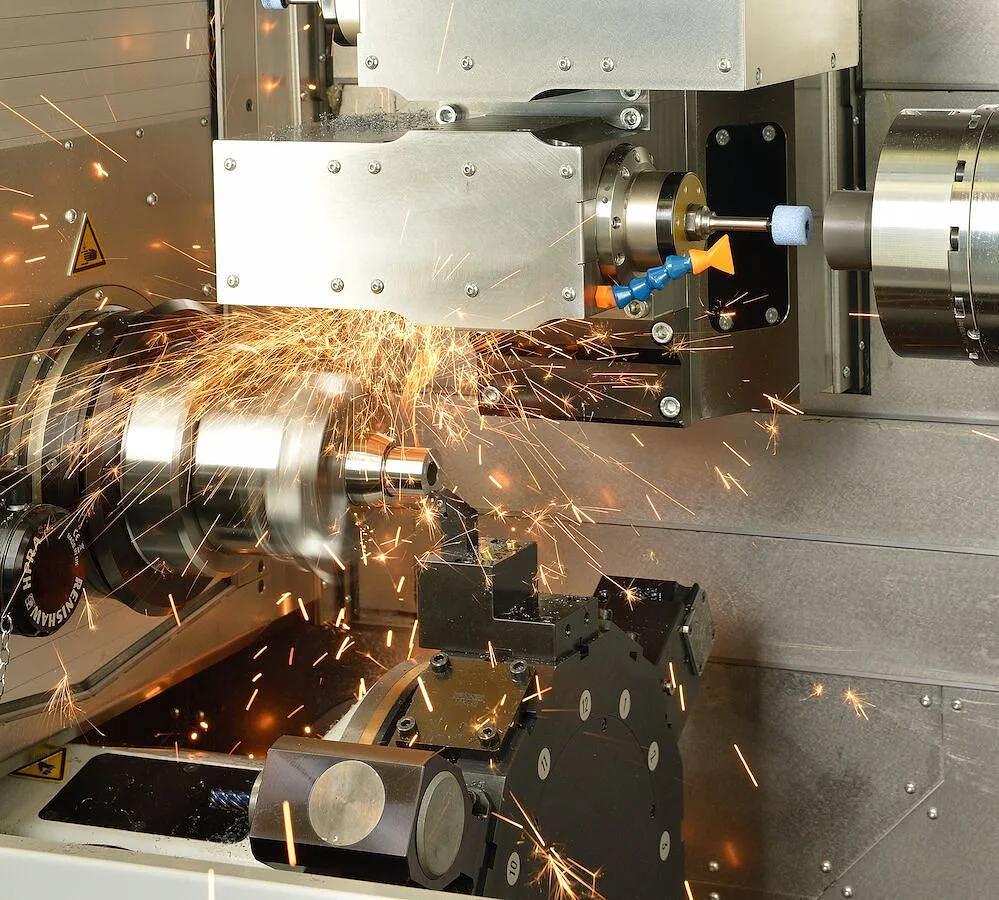

The indexing turret mounted at the bottom of the work area allows high-precision soft and hard turning of internal and external contours on both spindle one and spindle two. Milling operations with live tools and Y-axis are also possible, e.g., for soft and hard milling of surfaces, keyways, and other contour elements – all during the same operation.
