TC800L Big Bore CNC Lathe
Location:Boca Raton, FL
Description

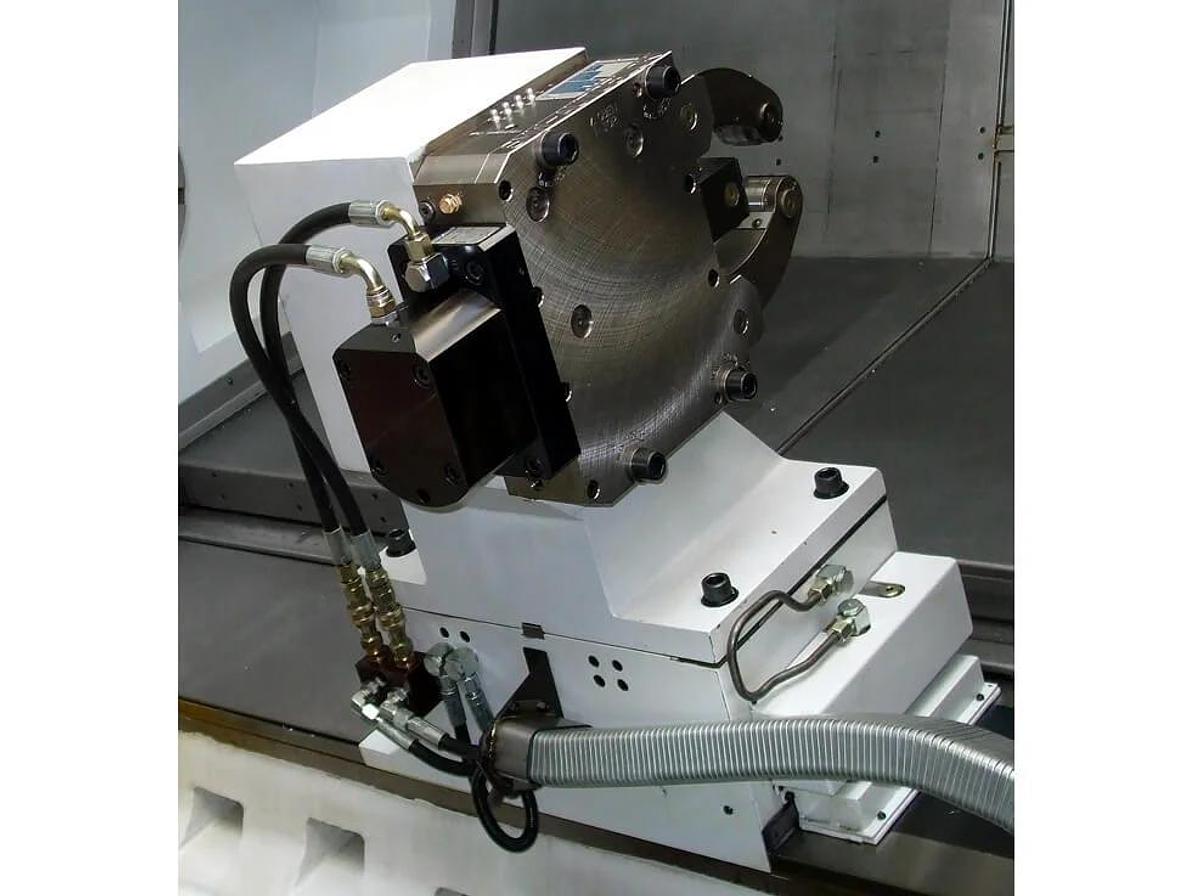

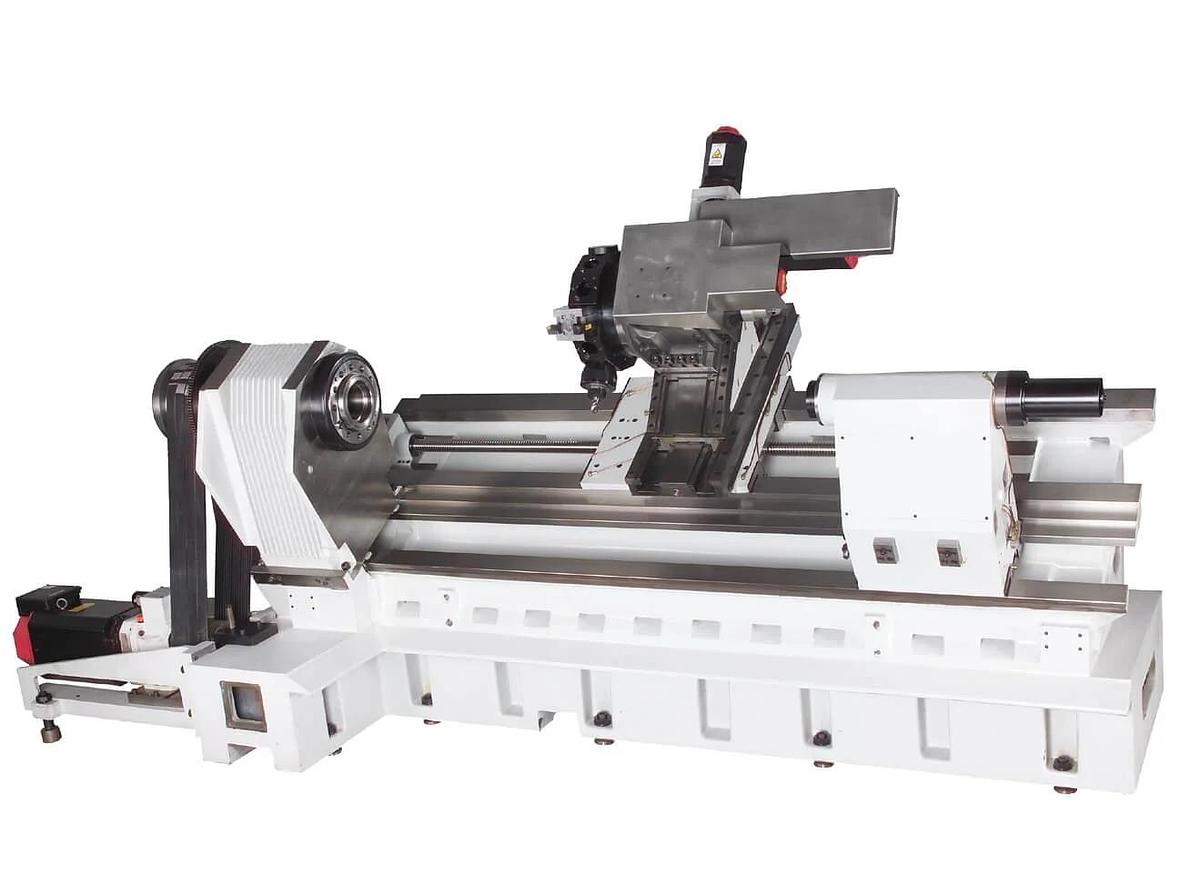

Big bore slant bed lathe with programmable steady rest. Optional Y-axis, live tooling and sub spindle.
Big bore CNC lathe for large and long work requiring a steady rest. If you are looking for a workhorse long bed CNC lathe with Y-axis, live tooling and a sub spindle the TC610L is a great choice.
Specifications
| Manufacturer | Spinner |
| Model | TC800L Big Bore Lathe |
| Condition | New |
| Stock Number | 00008 |
| Bar Capacity | 4.33 in | 110 mm |
| Swing Diameter | 31.49 in | 800 mm |
| Max Turning Diameter | 19.69 in | 500 mm |
| Max Turning Length | 62.20 in | 1580 mm |
| X | 14.17 in | 360 mm |
| Y | +2.56 / -2.17 in | +65 / -55 mm |
| Z | 62.20 in | 1580 mm |
| Speed | 5,000 rpm |
| Nose | A6 |

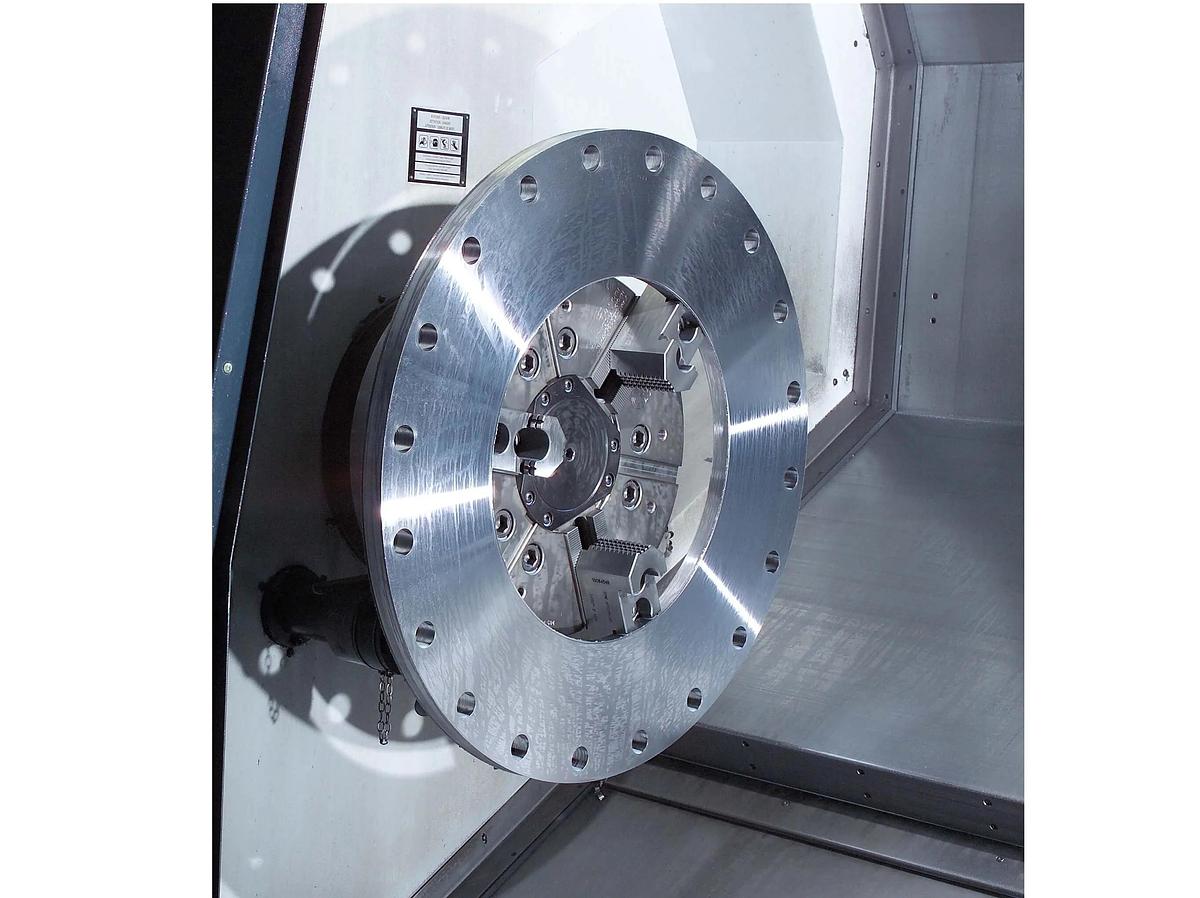

| Power Chuck | 12.4 in | 315 mm |
| Performance (S6 40%) | 31.5 hp | 23.5 kW |
| Torque Gear 1 (S6 40%) | 1,659.5 ft-lb | 2,250 Nm |
| Torque Gear 2 (S6 40%) | 414.5 ft-lb | 562 Nm |
| Chuck Diameter | 8.3 in | 210 mm |
| Torque (S6 40%) | 110.6 ft-lb | 150 Nm |
| Rapid Traverse X | 590 ipm | 15 m/min |
| Rapid Traverse Y | 945 ipm | 24 m/min |
| Rapid Traverse Z | 945 ipm | 24 m/min |

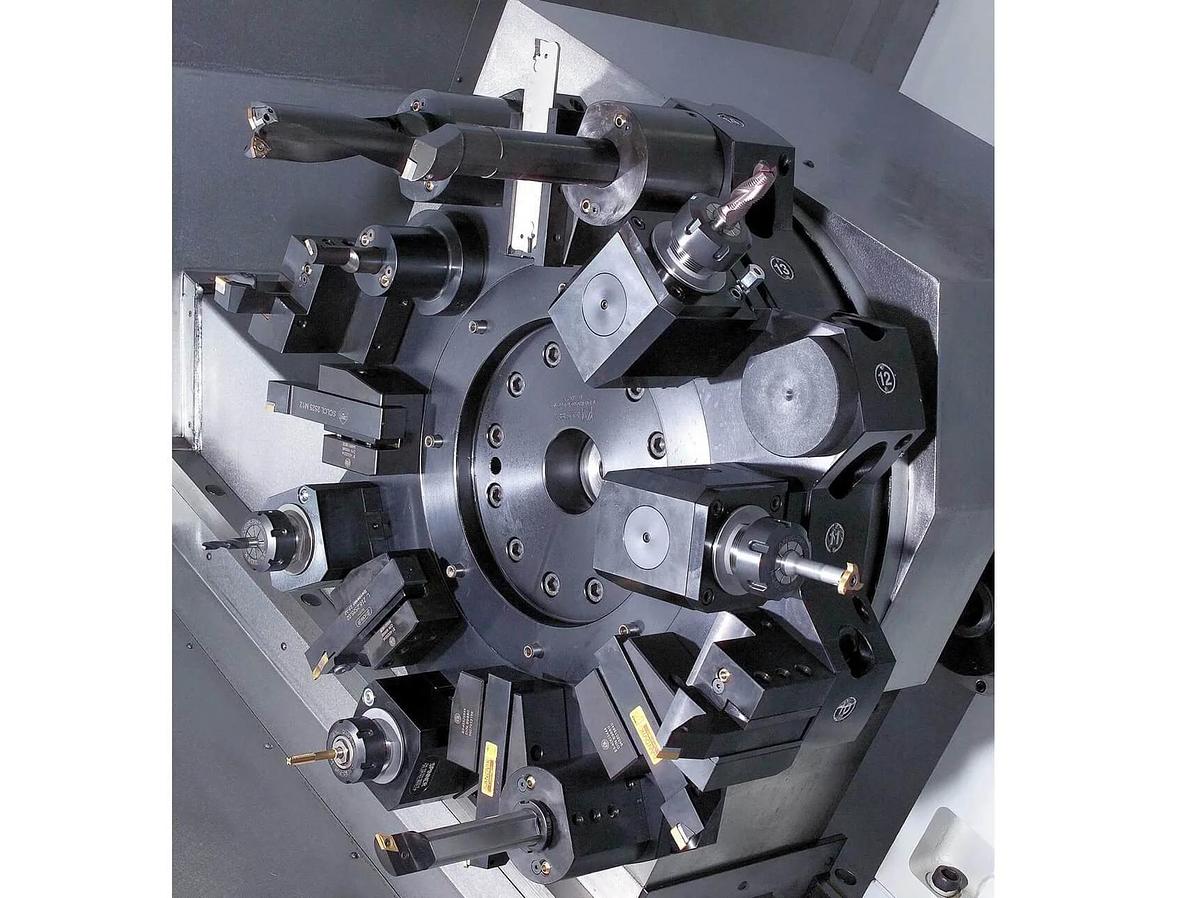

| Stations | 12 / VDI50 |
| Live Tooling | 4,000 rpm |
| Performance | 22.1 hp | 49.6 kW |
| Torque | 59 ft-lb | 80 Nm |
| Length | 227.6 in | 5,780 mm |
| Wide | 120.7 in | 3,065 mm |
| Height | 82.9 in | 2,105 mm |
| Weight | 18,739 lbs | 8,500 kg |
