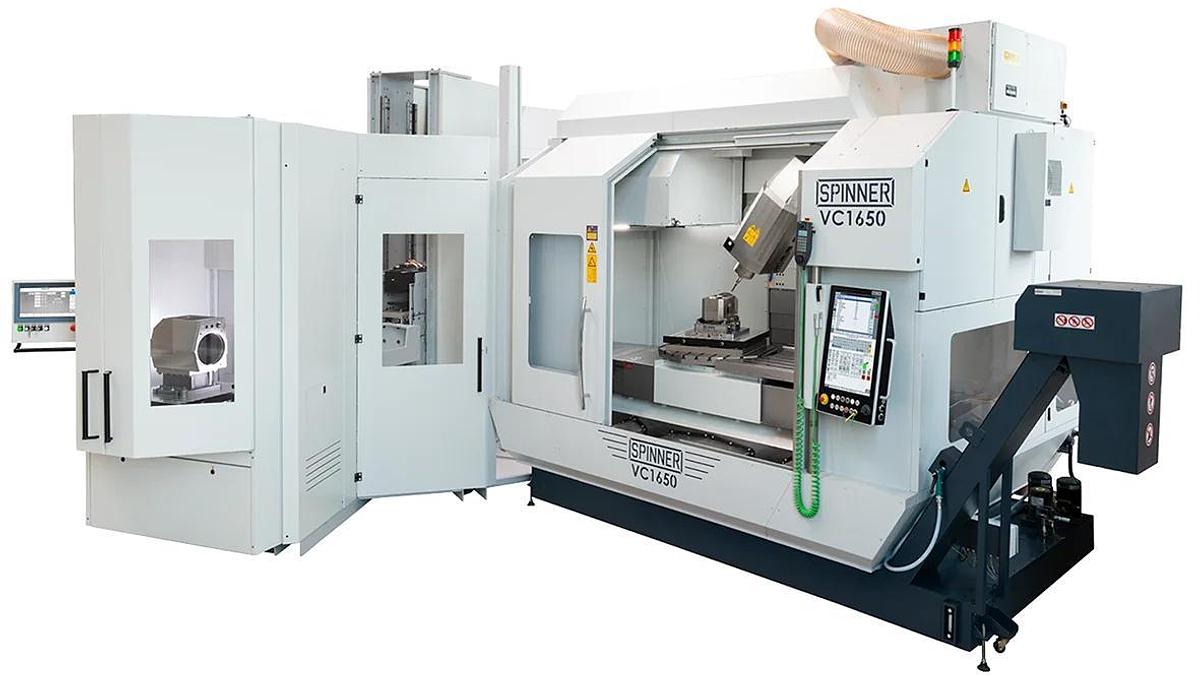

VC1650-5A Swivel Head 5-Axis CNC
Location:Boca Raton, FL
Description
Swivel head + side table, 5-axis simultaneous vertical machining center for heavy parts.

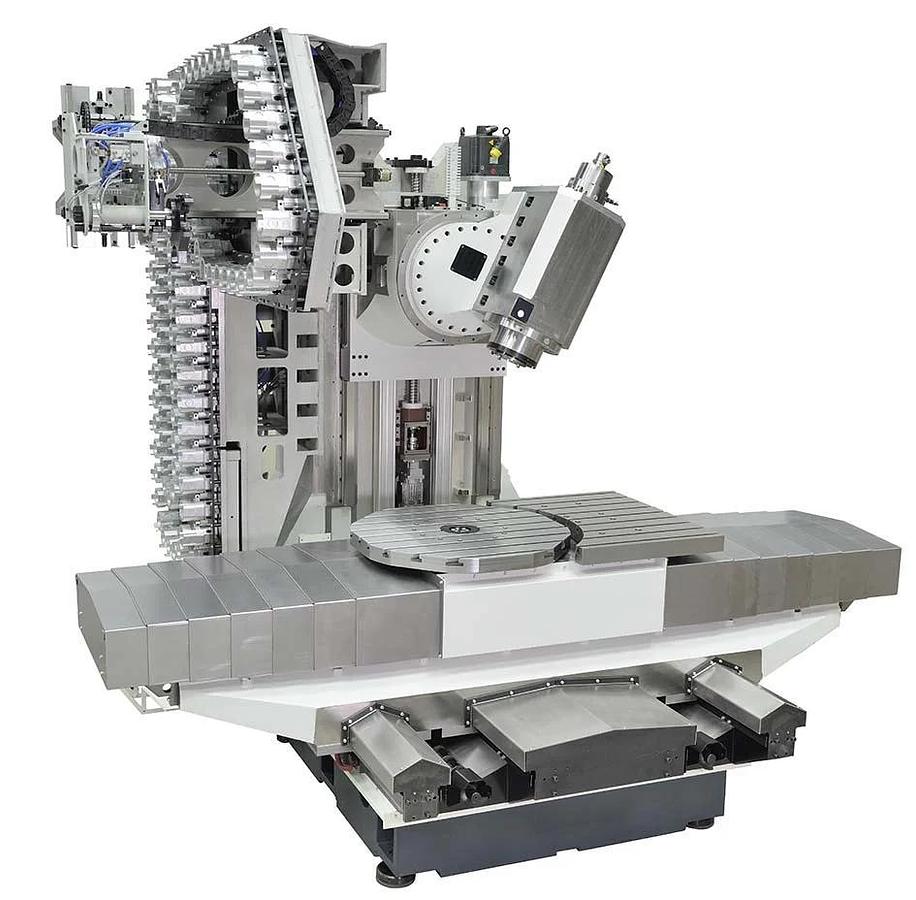

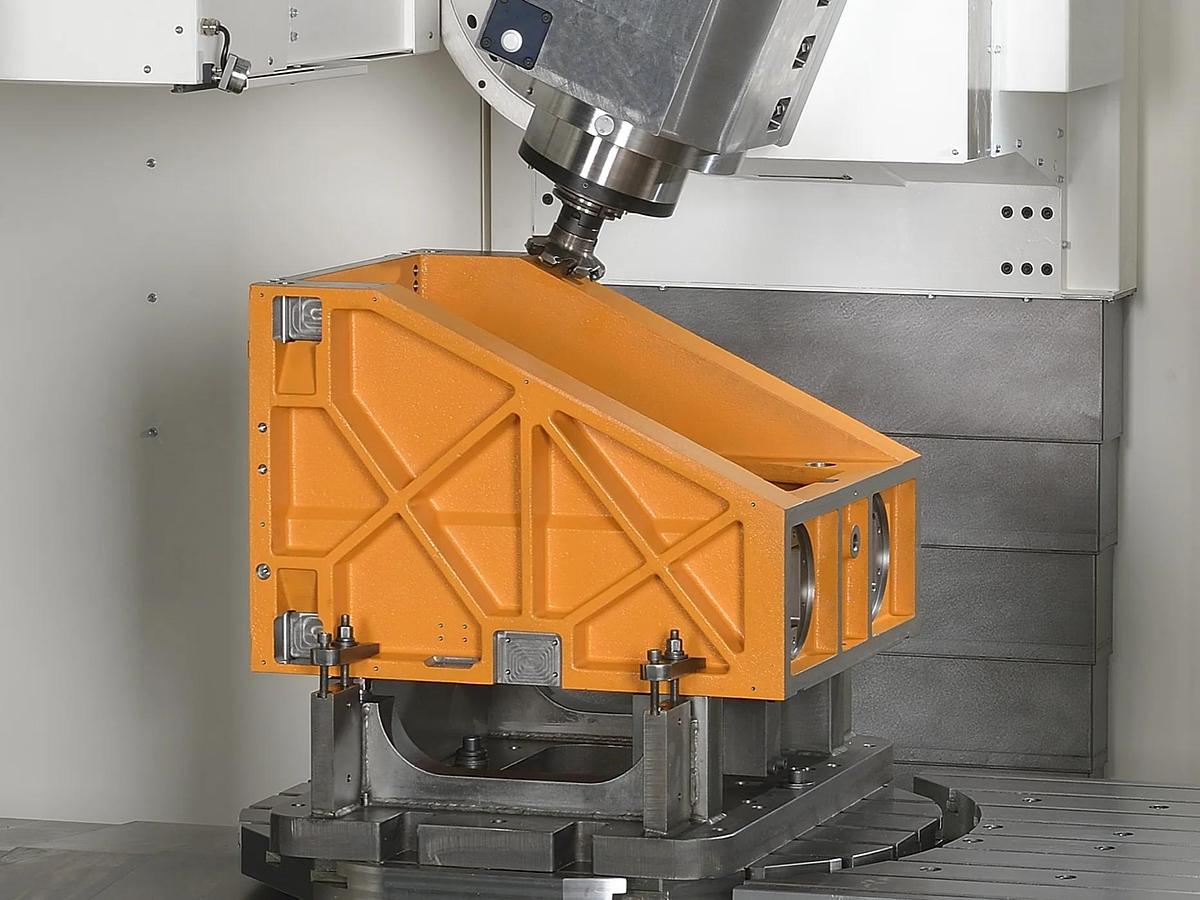

The VC1650-5A is a swivel head style 5-axis vertical machining center for high performance 5-axis simultaneous machining with spindle speeds up to 18,000 rpm. This machine has an integrated C rotary table that revolves around the Z-axis allowing for large heavy parts to be machined. The machine offers 5-sided and full 5-axis simultaneous machining for high accuracy applications such as mold-making.
Specifications
| Manufacturer | Spinner |
| Model | VC1650-5A Swivel Head |
| Condition | New |
| Stock Number | 00004 |
| Rotary Dimensions | 34.25 in dia | 870 mm dia |
| Max Rotary Load | 4,409 lbs | 2,000 kg |
| Full Table | 57.1 in x 34.25 in | 1450 mm x 870 mm |
| T-Slots | 18H7 |
| X | 64.96 in | 1650 mm |
| Y | 32.28 in | 820 mm |
| Z | 32.28 in | 820 mm |
| B | +110 / - 1 deg |
| Speed | 14,000 rpm |
| Performance | 29.5 hp | 22 kW |
| Torque | 86.3 ft-lb | 117 Nm |
| Tool Holder | SK40 |
| Rapid Traverse X | 1,771 ipm | 45 m/min |
| Rapid Traverse Y | 1,771 ipm | 45 m/min |
| Rapid Traverse Z | 1,771 ipm | 45 m/min |
| Number of Stations | 138 |
| Max Tool Diameter | 3.15 in | 80 mm |
| Max Tool Diameter w/o Adjacent | 5.90 in | 150 mm |
| Max Tool Length | 15.75 in | 400 mm |
| Max Tool Weight | 22 lbs | 10 kg |
| Length | 139.8 in | 3,550 mm |
| Wide | 108.3 in | 2,750 mm |
| Height | 126 in | 3,200 mm |
| Weight | 35,274 lbs | 16,000 kg |
