TTS-65 Duplex / Triplex
Location:Boca Raton, FL
Description

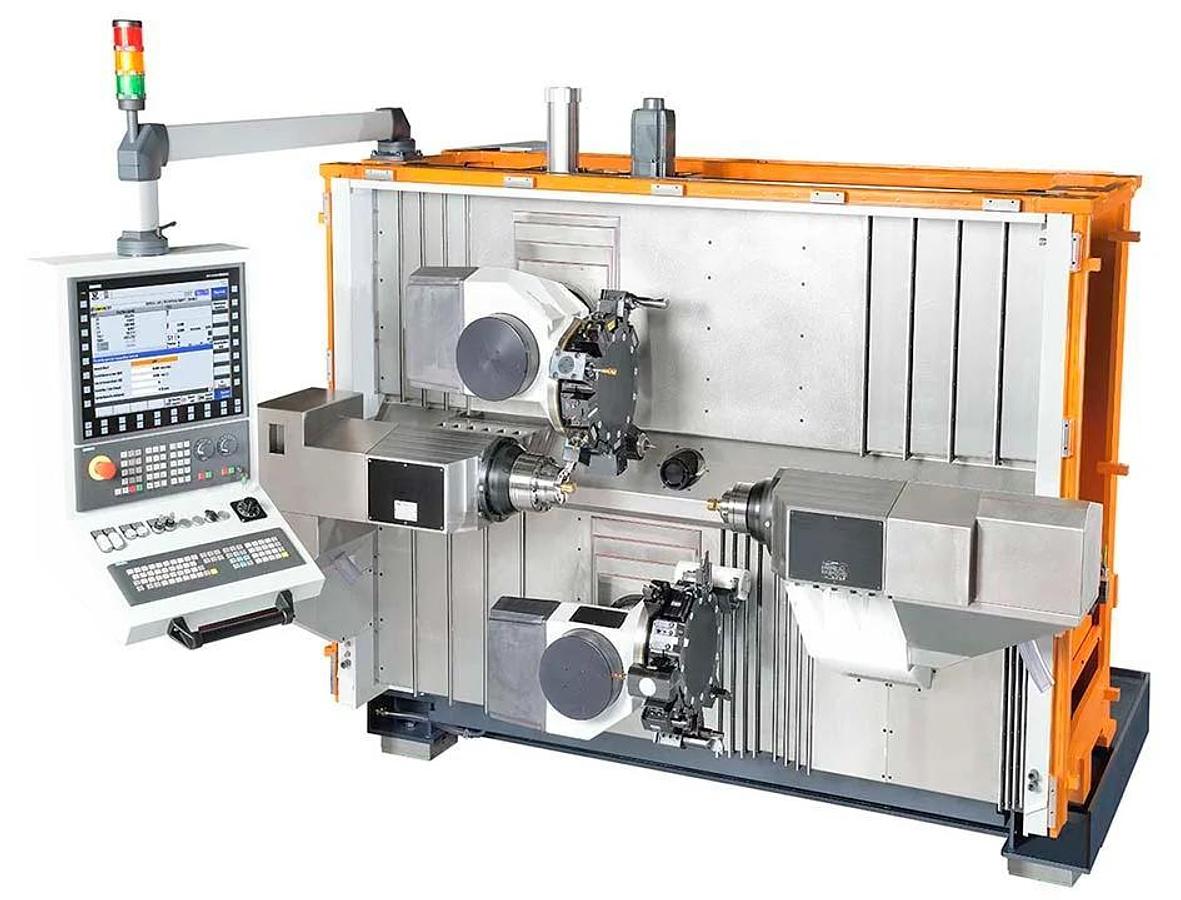

Ergonomic vertical lathe design with up to three turrets moving simultaneously for crazy fast cycle times.

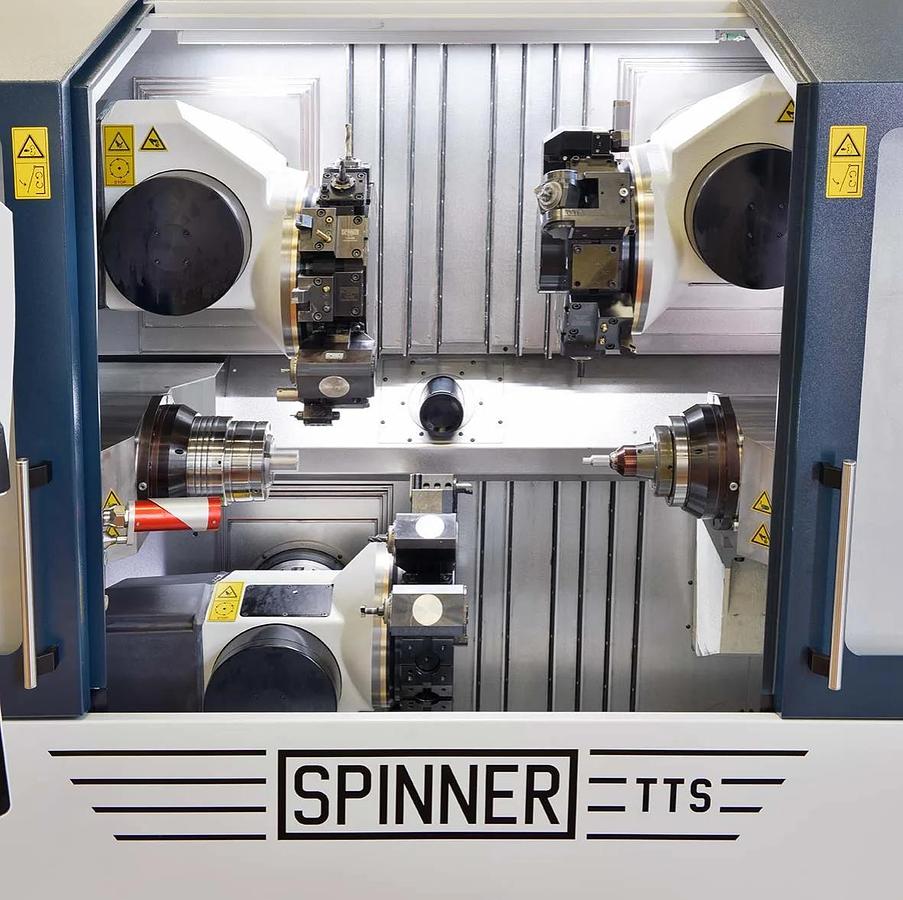

The TTS-42/65 is a multi turret high-performance turning center for simultaneous machining for medium and high volume turning of complex workpieces with up to three independent high-speed servo driven turrets made by Spinner. All turrets operate independently on the main or counter-spindle or can work on one spindle at the same time if desired.

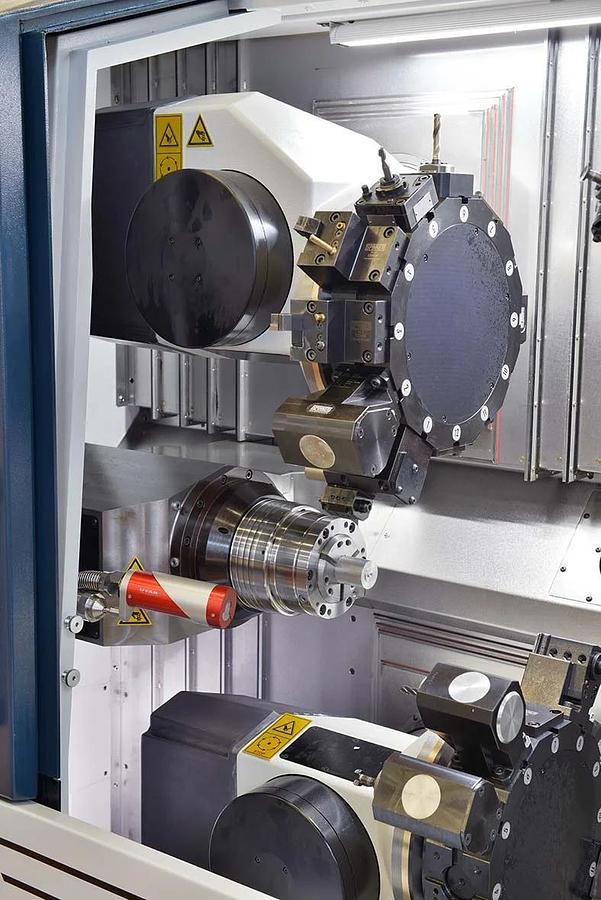

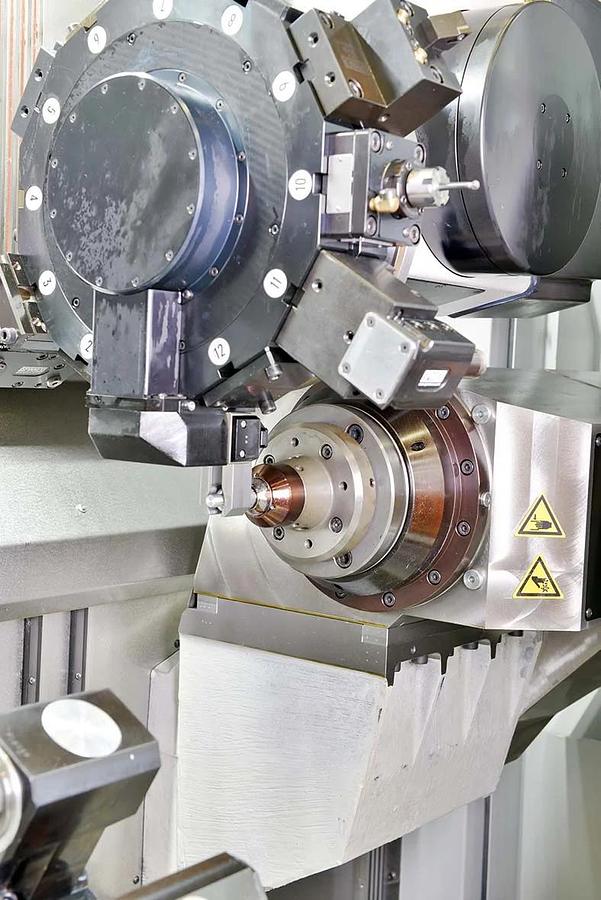

Each turret features our special anti-vibration damping system which absorbs micro vibrations generated during the machining the process for up to 50% higher cutting performance than turrets without damping technology. This makes it possible to finish turn on the counter-spindle while roughing on the main spindle with no negative effect on part finishes.
Specifications
| Manufacturer | Spinner |
| Model | TTS-65 Duplex / Triplex |
| Condition | New |
| Stock Number | 00017 |
| Bar Capacity (Std) | 2.56 in | 65 mm |
| Bar Capacity (Opt) | 1.65 in | 42 mm |
| X1 / X2 / X3 | 7.08 in | 180 mm |
| Y1 / Y3 | +-1.7 in | +-45 mm |
| Z1 / Z3 | 27.1 in | 688 mm |
| Z2 | 24.4 in | 620 mm |
| Speed | 7,000 rpm |
| Nose | 4.3 in | 110 mm |
| Power Chuck | 5.5 in | 140 mm |
| Performance (S6 40%) | 29.5 hp | 22 kW |
| Torque (S6 40%) | 94.4 ft-lb | 128 Nm |
| Rapid Traverse X | 1,181 ipm | 30 m/min |
| Rapid Traverse Y | 1,181 ipm | 30 m/min |
| Rapid Traverse Z | 1,181 ipm | 30 m/min |
| Stations per Turret | 12 / BMT45 |
| Live Tooling | 8,000 rpm |
| Performance | 5.8 hp | 4.3 kW |
| Torque | 10 ft-lb | 13.6 Nm |
| Length | 194.5 in | 4,940 mm |
| Wide | 137 in | 3,480 mm |
| Height | 105.1 in | 2,670 mm |
| Weight | 17,416 lbs | 7,900 kg |
