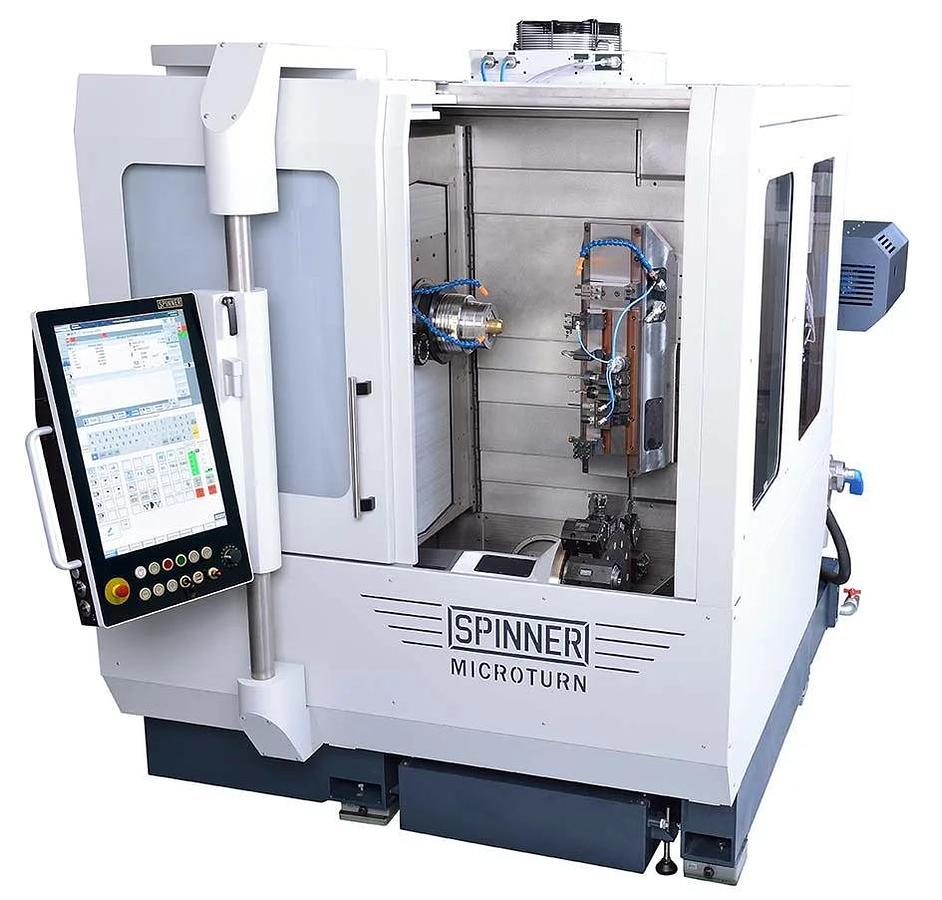

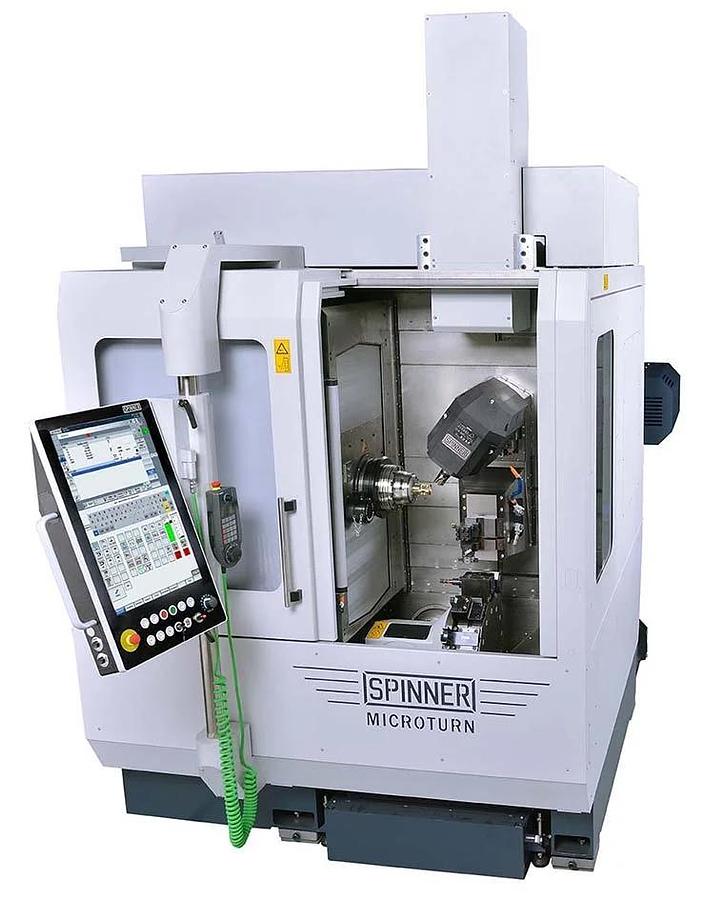

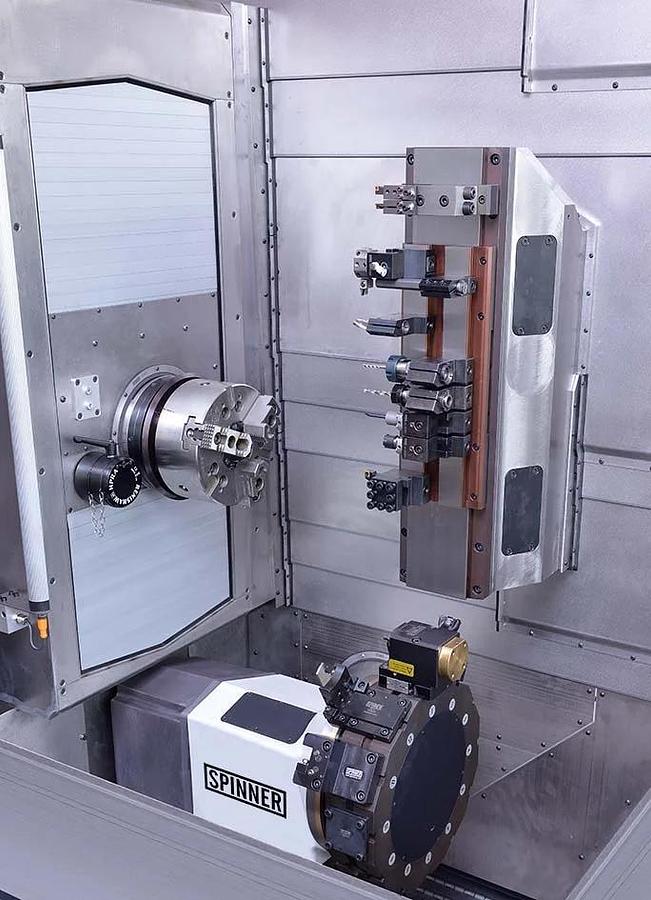

MicroTurn LTBS Mill Turn
Location:Boca Raton, FL
Description
Compact vertical design combining submicron + hard turning with full 5-axis machining.

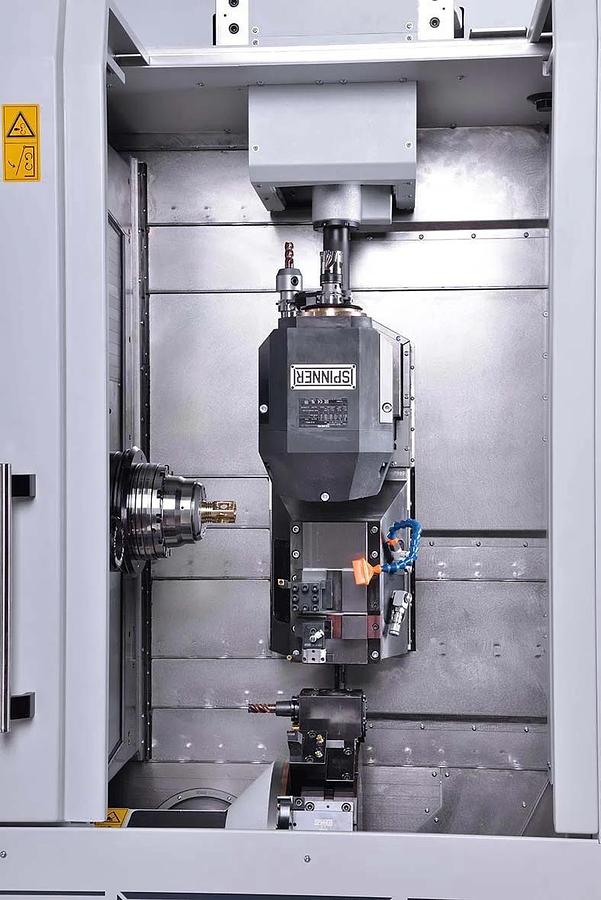

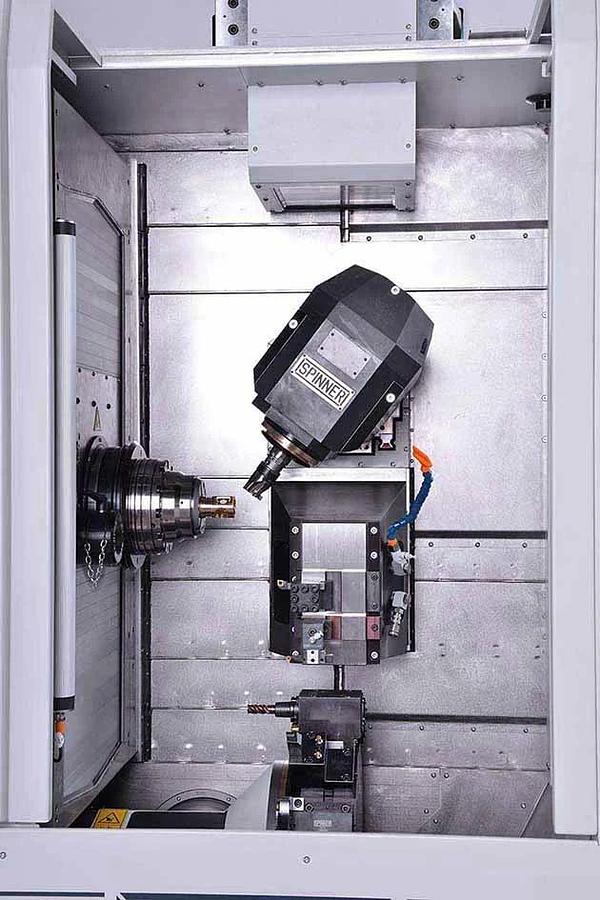

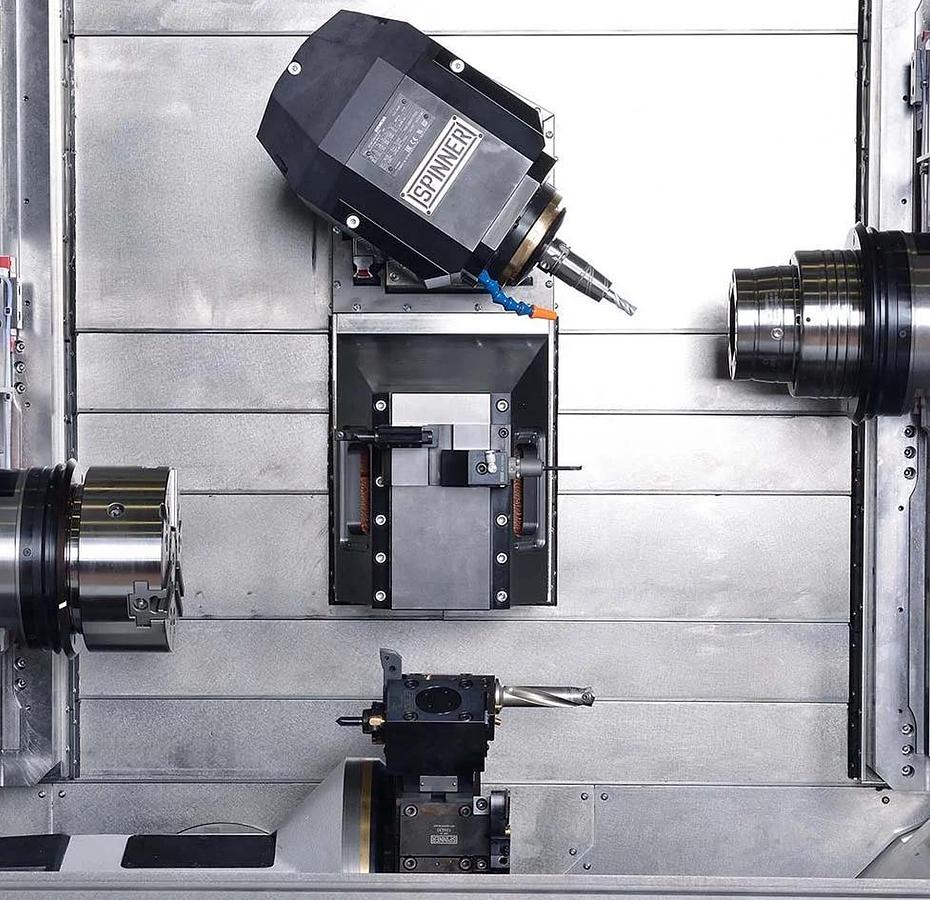

The MicroTurn LTBS mill turn is the combination of a submicron finishing precision turning center with dual spindles, a 12-station turret with live-tools, and a full 5-axis machining center with rotating 12,000 rpm B-axis milling spindle.

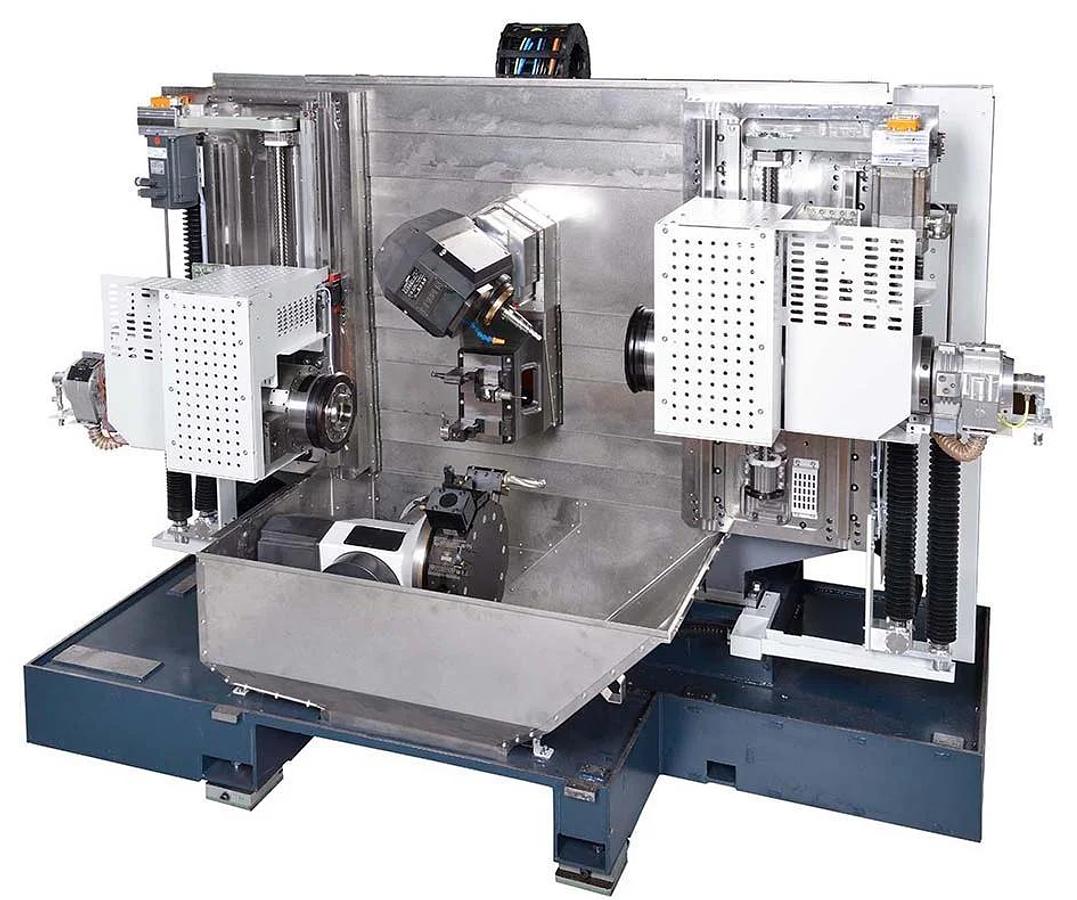

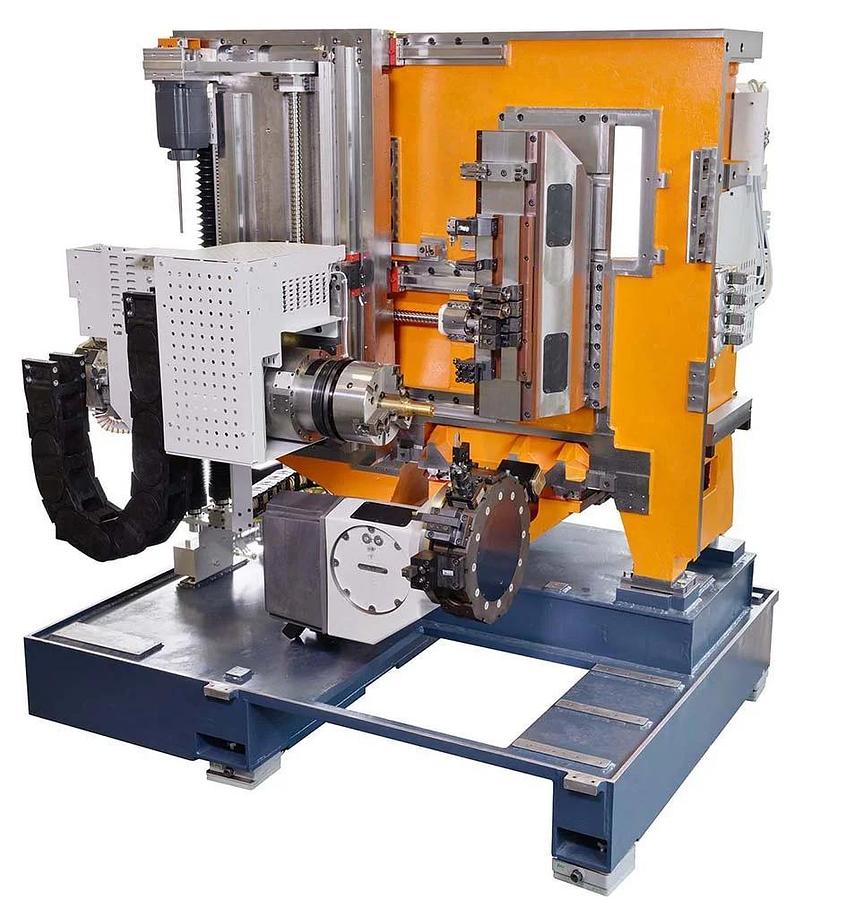

Our unique design produces the highest level of production and precision in one machine. This sophisticated design makes it possible to perform soft turning, hard turning, and micro-finishing due to extremely low thermal growth utilizing the rigid bed-mounted linear slide.
All linear and rotary axis are equipped with linear scales.
It’s difficult to find another machine on the market of similar precision and capability within a small 10′ x 10′ x 10′ footprint.
Specifications
| Manufacturer | Spinner |
| Model | MicroTurn LTBS |
| Condition | New |
| Stock Number | 00002 |
| Swing Diameter | 23.94 in | 608 mm |
| Max Turning Length | 9.84 in | 250 mm |
| Max Turning Diameter | 5.91 in | 150 mm |
| Bar Capacity | 2.05 in | 52 mm |
| X | 23.6 in | 600 mm |
| Z | 13.7 in | 350 mm |
| Y1 Turret | +-1.9 in | +-50 mm |
| Y2 Milling Spindle | +-1.9 in | +-50 mm |
| B | +-180 deg |
| Speed | 12,000 rpm |
| Nose | A6 |
| Chuck Diameter | 8.27 in | 210 mm |
| Performance | 20.1 hp | 15 kW |
| Torque | 12.5 ft-lb | 17 Nm |
| Options | 6,000 / 7,000 / 10,000 rpm |
| Rapid Traverse X | 944.8 ipm | 24 m/min |
| Rapid Traverse Y | 590.5 ipm | 15 m/min |
| Rapid Traverse Z | 944.8 ipm | 24 m/min |
| Turret | 12 Station BMT45 |
| Live Tooling | 8,000 rpm / 5.8 hp / 10 ft-lb |
| Gang Tooling | Linear Gang-Style for Micron Accuracy and Hard-Turning |
| B-Axis Tooling | 72 Station HSK40 |
| Length | 119 in | 3030 mm |
| Wide | 112 in | 2840 mm |
| Height | 114 in | 2890 mm |
| Weight | 16,976 lbs | 7,700 kg |
