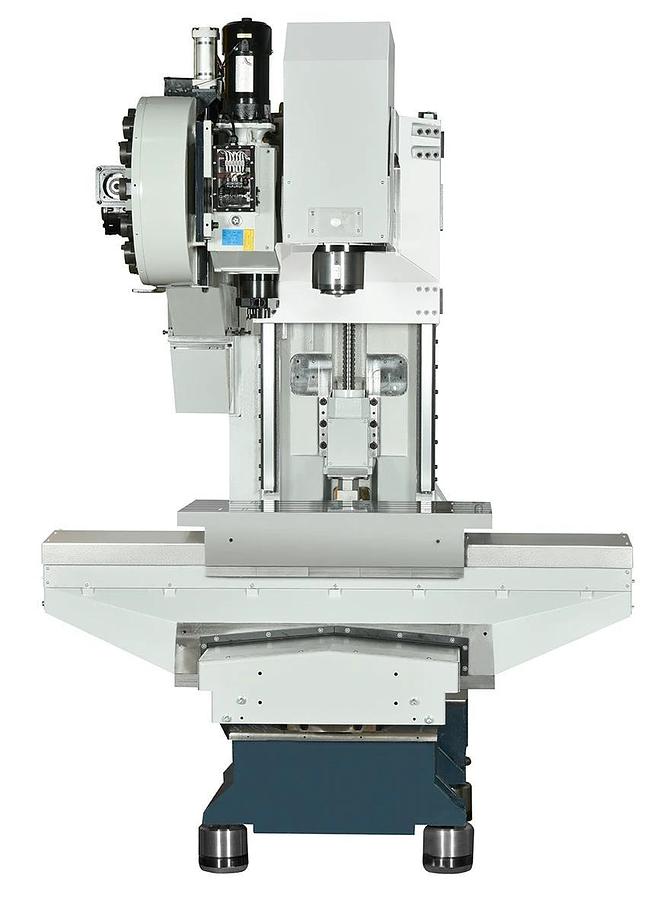

VC850 Vertical Machining Center
Location:Boca Raton, FL
Description
Precision vertical machining center in a compact footprint with easy to reach table.
The VC850 is a 3-axis Vertical Machining Center for high performance cutting with spindle speeds up to 18,000 rpm. This machine is perfect for workpieces up to 35.4 x 20.1 x 17.7 in / 1,102 lbs and accommodates parts of many different sizes and materials. It is available with the most modern controls such as Fanuc, Heidenhain, and Siemens.
Designed as a compact machining center, the VC850 has a patented one-piece way covers in the X & Y axis, eliminating the accordion style cover, and reducing the required floor space up to 30% over similar machines with the same working area. The overall design is perfect where there is very limited floor space.
Specifications
| Manufacturer | Spinner |
| Model | VC850 Mid CNC Mill |
| Condition | New |
| Stock Number | 00013 |
| Table Dimensions | 35.4 x 20.1 in | 900 x 510 mm |
| Max Table Load | 1,102 lbs | 500 kg |
| T-Slots | 6 x 18H7 |
| X | 33.46 in | 850 mm |
| Y | 20.10 in | 510 mm |
| Z | 20.10 in | 510 mm |
| Speed | 12,000 rpm |
| Performance | 30.3 hp | 23 kW |
| Torque | 79.7 ft-lb | 108 Nm |
| Optional | 18,000 rpm |
| Rapid Traverse X | 1,575 ipm | 40 m/min |
| Rapid Traverse Y | 1,575 ipm | 40 m/min |
| Rapid Traverse Z | 1,575 ipm | 40 m/min |
| Number of Stations | 32 / SK40 (opt 48) |
| Max Tool Diameter | 2.95 in | 75 mm |
| Max Tool Diameter w/o Adjacent | 4.92 in | 125 mm |
| Max Tool Length | 11.81 in | 300 mm |
| Max Tool Weight | 15.43 lbs | 7 kg |
| Length | 72.83 in | 1,850 mm |
| Width | 70.87 in | 1,800 mm |
| Height | 95.28 in | 2,420 mm |
| Weight | 9,921 lbs | 4,500 kg |
