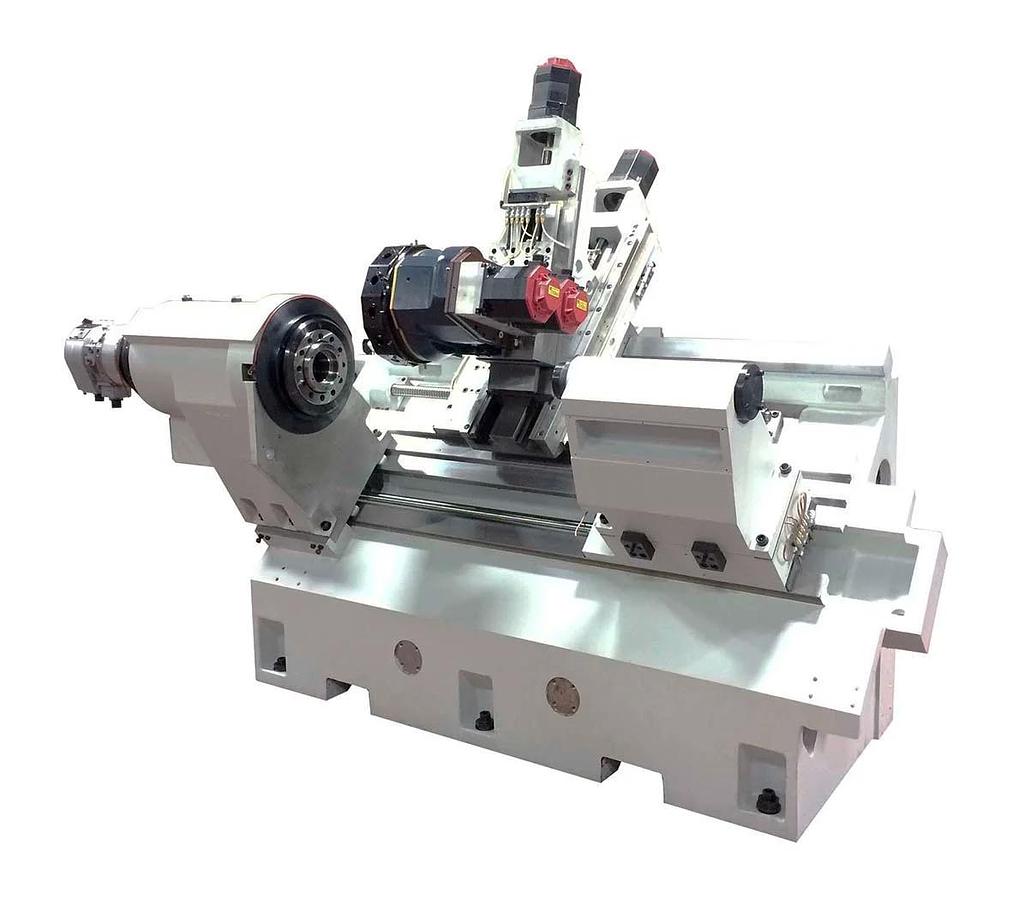

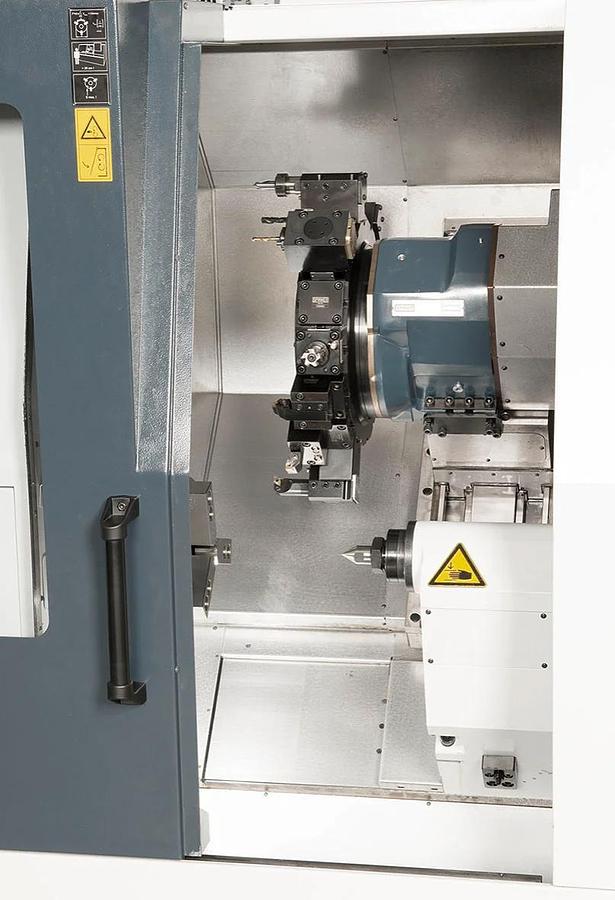

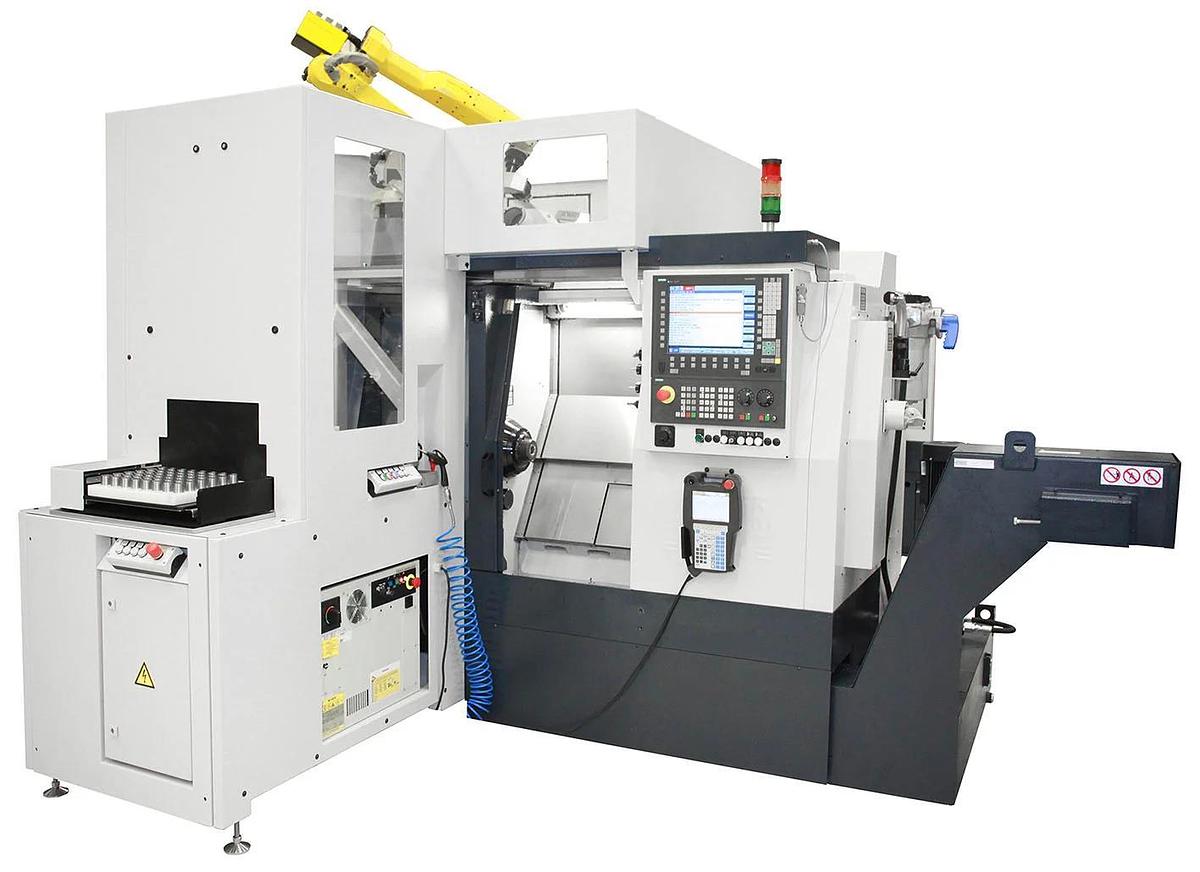

TC600 Y-Axis + Live Tool CNC Lathe
Location:Boca Raton, FL
Description
Precision slant bed lathe with optional true Y-axis, live tooling and a hard turning package.
Precision box way CNC lathe that is capable of hard turning. If you are looking for a workhorse mid-sized CNC lathe with Y-axis, live tooling, sub spindle and a compact footprint the TC600 is a great choice.
Specifications
| Manufacturer | Spinner |
| Model | TC600 Y-Axis + Live Tool |
| Condition | New |
| Stock Number | 00009 |
| Bar Capacity (Std) | 2.56 in | 65 mm |
| Bar Capacity (Opt) | 3.35 in | 85 mm |
| Swing Diameter | 23.62 in | 600 mm |
| Max Turning Diameter | 15.75 in | 400 mm |
| Max Turning Length | 25.59 in | 650 mm |
| X | 10.83 in | 275 mm |
| Y | +1.97 / -1.58 in | +50 / -40 mm |
| Z | 27.56 in | 700 mm |
| Speed | 6,000 rpm |
| Nose | 4.33 in | 110 mm |
| Power Chuck | 6.5 in | 165 mm |
| Performance (S6 40%) | 24.1 hp | 18 kW |
| Torque (S6 40%) | 84.8 ft-lb | 115 Nm |
| Rapid Traverse X | 590 ipm | 15 m/min |
| Rapid Traverse Y | 590 ipm | 15 m/min |
| Rapid Traverse Z | 945 ipm | 24 m/min |
| Stations | 16 / BMT45 |
| Live Tooling | 6,000 rpm |
| Performance | 22.1 hp | 16.5 kW |
| Torque | 25.8 ft-lb | 35 Nm |
| Length | 110.2 in | 2,800 mm |
| Wide | 68.9 in | 1,750 mm |
| Height | 82.3 in | 2,090 mm |
| Weight | 12,786 lbs | 5,800 kg |
