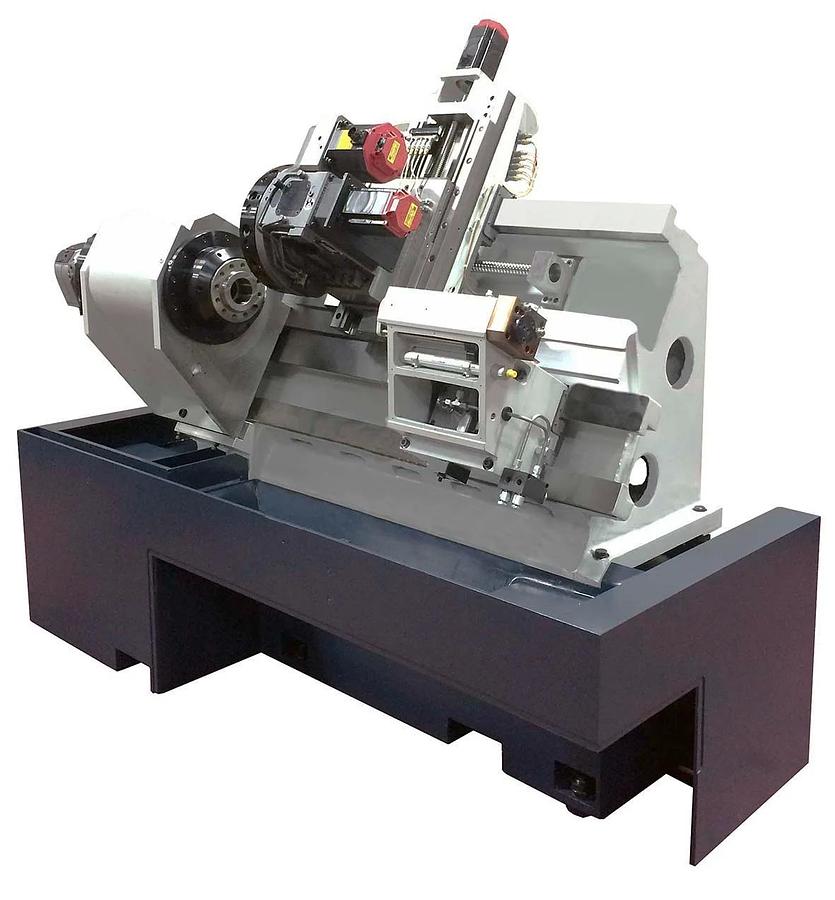

TC400 Box Way CNC Lathe
Location:Boca Raton, FL
Description
Precision slant bed lathe with optional live tooling and hard turning package.
Precision box way CNC lathe that is capable of hard turning. If you are looking for a workhorse mid-sized CNC lathe with a compact footprint the TC400 is a great choice.
Specifications
| Manufacturer | Spinner |
| Model | TC400 Box Way CNC Lathe |
| Condition | New |
| Stock Number | 00010 |
| Bar Capacity (Std) | 2 in | 52 mm |
| Bar Capacity (Opt) | 1.65 in | 42 mm |
| Swing Diameter | 15.75 in | 400 mm |
| Max Turning Diameter | 11 in | 280 mm |
| Max Turning Length | 19.69 in | 500 mm |
| X | 7.87 in | 200 mm |
| Z | 20.28 in | 515 mm |
| Speed | 5,000 rpm |
| Nose | A6 |
| Chuck Dia | 8.2 in | 210 mm |
| Performance (S6 40%) | 31.5 hp | 23.5 kW |
| Torque (S6 40%) | 110.6 ft-lb | 150 Nm |
| Rapid Traverse X | 590 ipm | 15 m/min |
| Rapid Traverse Z | 945 ipm | 24 m/min |

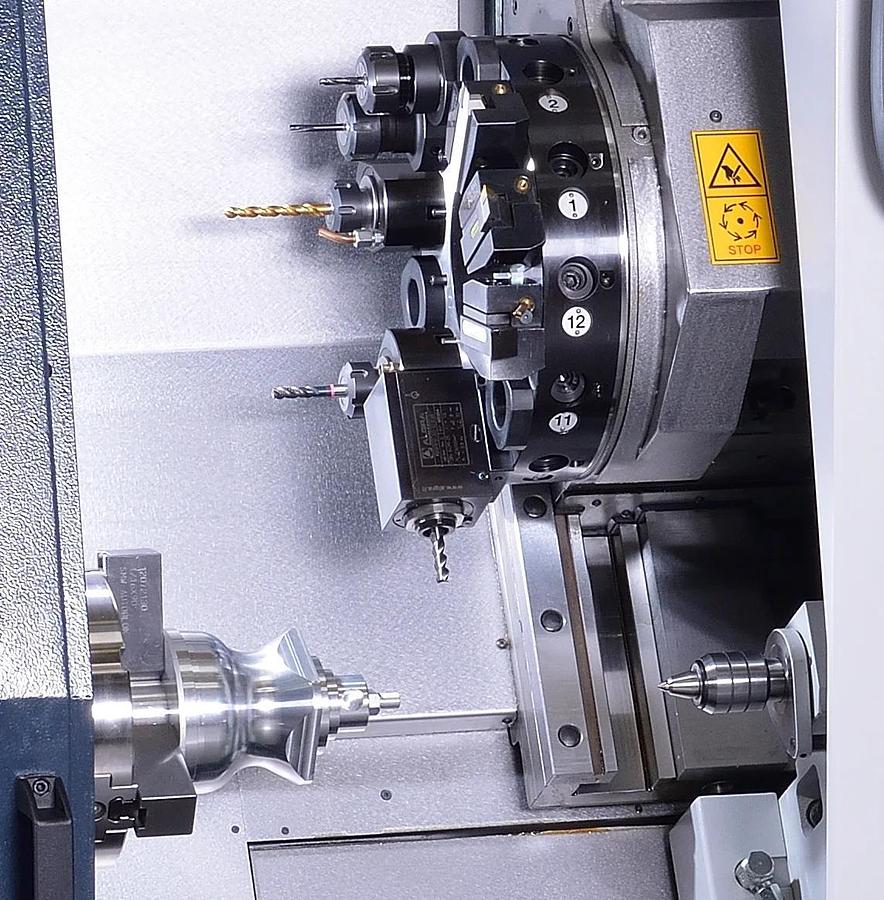

| Stations | 12 / VDI30 |
| Live Tooling | 4,500 rpm |
| Performance | 22.1 hp | 16.5 kW |
| Torque | 25.8 ft-lb | 35 Nm |
| Length | 86.4 in | 2,195 mm |
| Wide | 53.1 in | 1,350 mm |
| Height | 73.4 in | 1,865 mm |
| Weight | 6,614 lbs | 3,000 kg |
