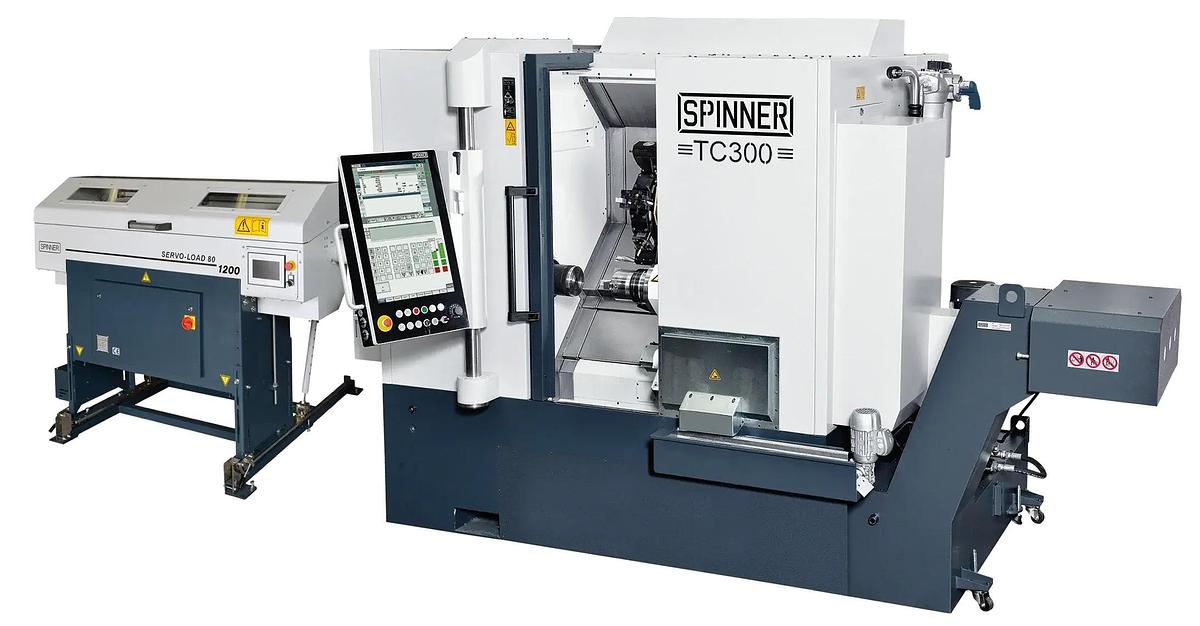

TC300 Compact CNC Lathe
Location:Boca Raton, FL
Description

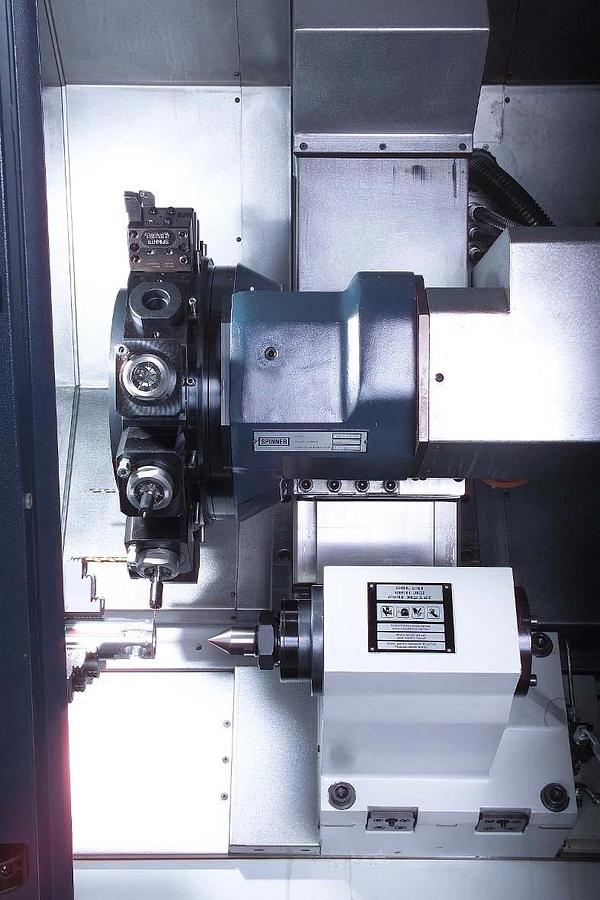

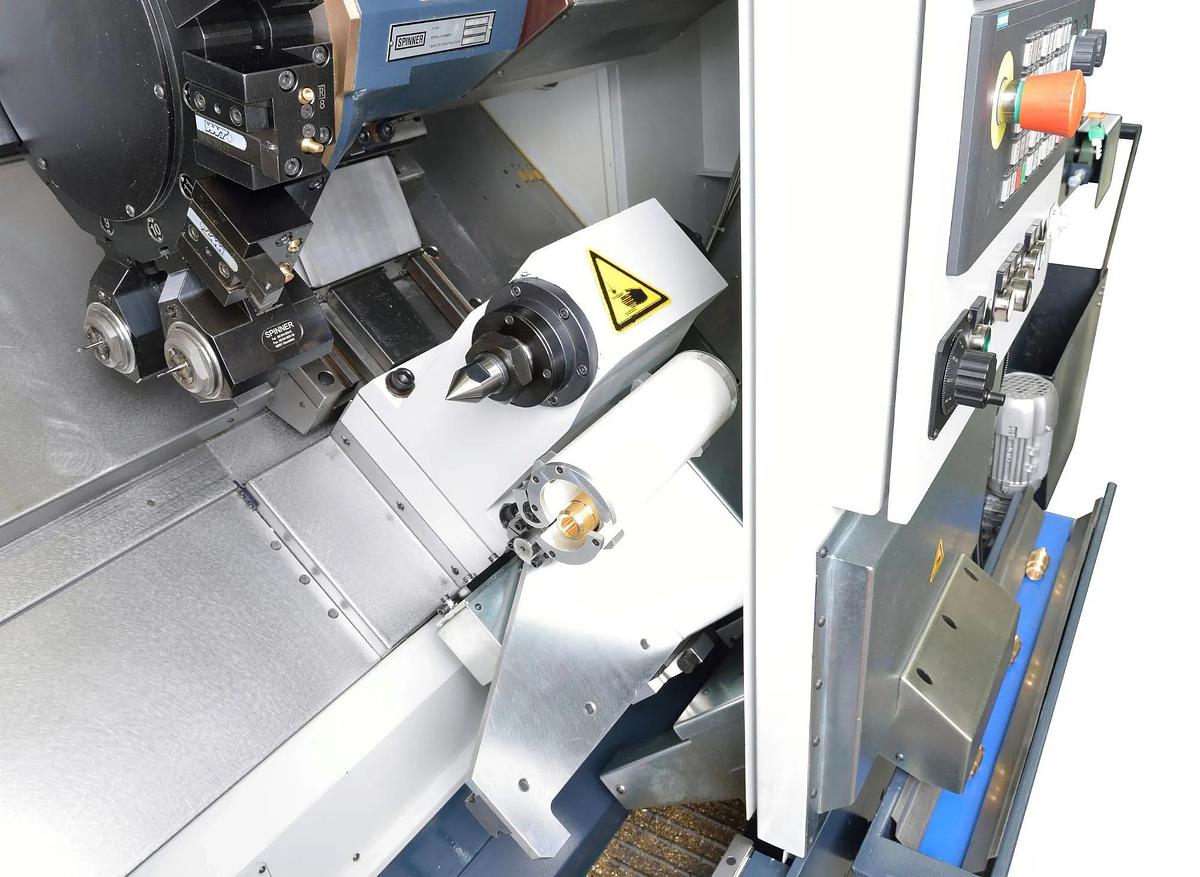

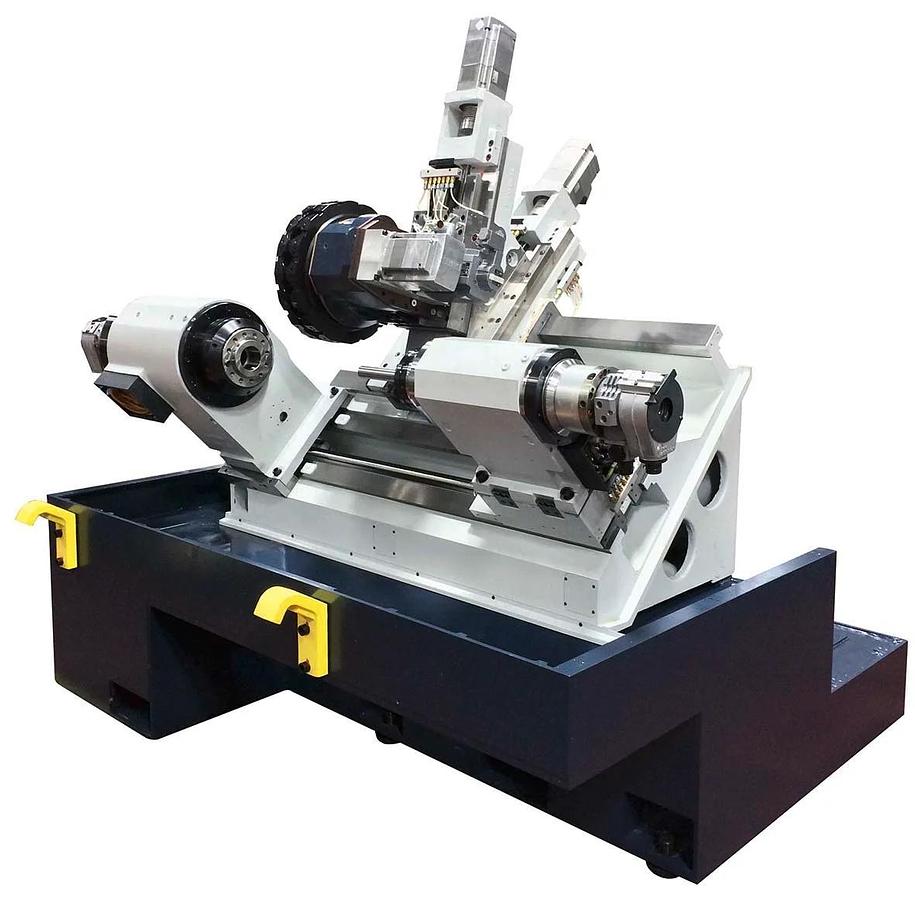

Compact precision slant bed lathe with optional true Y-axis, live tooling and sub-spindle.
Compact CNC lathe designed for precision turning. The TC 300 is a great choice when dimensional accuracy is critical but also best surface quality, form, and positional tolerance in the event of small and medium sized precision parts.
It is available in different versions, including variants with up to two spindles and a Y-axis. Design features and options:
Specifications
| Manufacturer | Spinner |
| Model | TC300 Small CNC Lathe |
| Condition | New |
| Stock Number | 00011 |
| Bar Capacity | 2.0 in | 52 mm |
| Swing Diameter | 15.7 in | 400 mm |
| Max Turning Diameter | 7.9 in | 200 mm |
| Max Turning Length | 13.8 in | 350 mm |
| X | 7.1 in | 180 mm |
| Y | +1.58 / -1.58 in | +40 / -40 mm |
| Z | 18.9 in | 480 mm |
| Speed | 7,000 rpm |
| Nose | 3.9 in | 100 mm |
| Chuck Diameter | 6.5 in | 165 mm |
| Performance (S6 40%) | 14.75 hp | 11 kW |
| Torque (S6 40%) | 60.5 ft-lb | 82 Nm |
| Rapid Traverse X | 590 ipm | 15 m/min |
| Rapid Traverse Y | 590 ipm | 15 m/min |
| Rapid Traverse Z | 945 ipm | 24 m/min |
| Stations | 12 / BMT45 |
| Live Tooling | 6,000 rpm |
| Performance | 7.4 hp | 5.5 kW |
| Torque | 25.8 ft-lb | 35 Nm |
| Length | 88.5 in | 2,247 mm |
| Wide | 75.8 in | 1,925 mm |
| Height | 84.8 in | 2,155 mm |
| Weight | 8,157 lbs | 3,700 kg |
