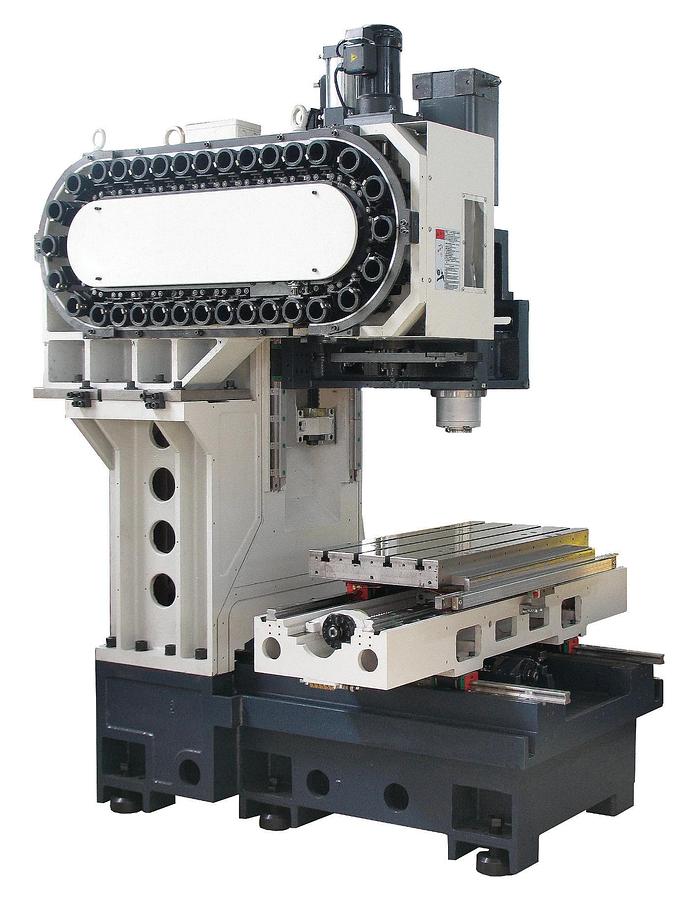

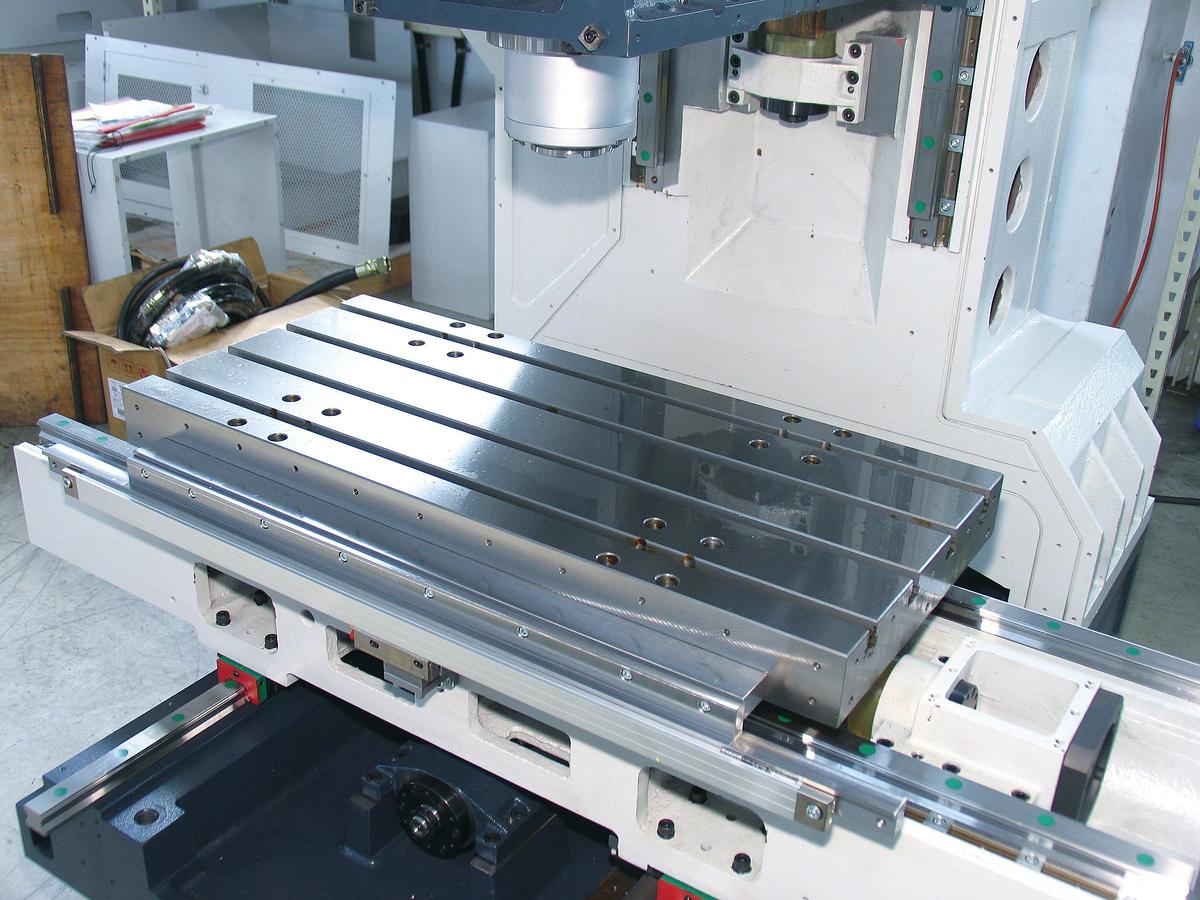

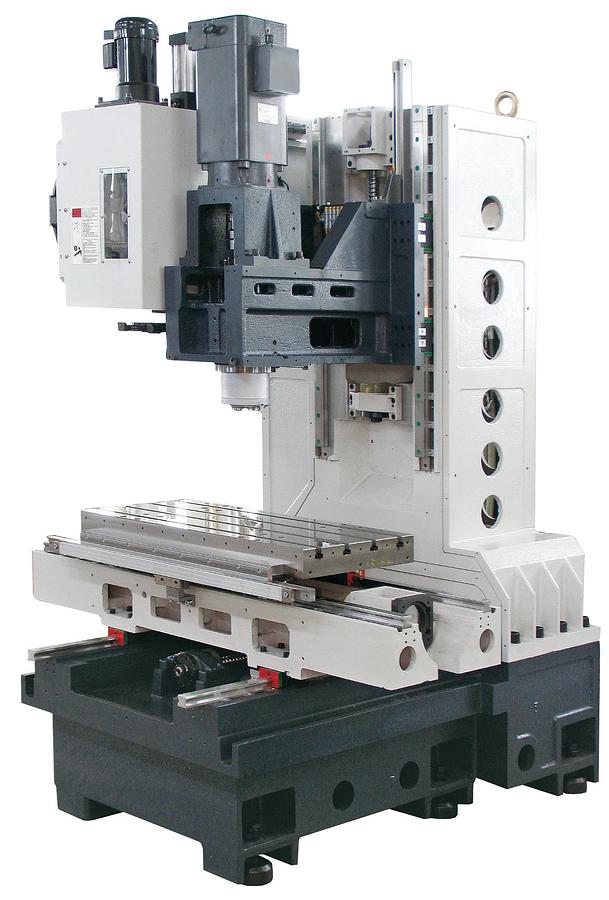

VC750 Vertical Machining Center
Location:Boca Raton, FL
Description
Precision value-priced vertical machining center in a compact footprint with easy to reach table.
The VC750 is a 3-axis Vertical Machining Center for high performance cutting with a spindle speed of 12,000 rpm. This machine is perfect for workpieces up to 35.4 x 20.1 x 17.7 in / 1,102 lbs and accommodates parts of many different sizes and materials. It is available with the most modern controls such as Fanuc, Heidenhain, and Siemens.
Specifications
| Manufacturer | Spinner |
| Model | VC750 Compact CNC Mill |
| Condition | New |
| Stock Number | 00015 |
| Table | XL | XL |
| Table Dimensions | 35.43 x 16.14 in | 900 x 410 mm | 39.37 x 16.14 in | 1000 x 410 mm |
| Max Table Load | 772 lbs | 350 kg | 772 lbs | 350 kg |
| T-Slots | 6 x 4 x 100 | 6 x 4 x 100 | 6 x 4 x 100 | 6 x 4 x 100 |
| X | 29.92 in | 760 mm | 37.4 in | 950 mm |
| Y | 18.11 in | 460 mm | 18.11 in | 460 mm |
| Z | 18.11 in | 460 mm | 18.11 in | 460 mm |
| Speed | 12,000 rpm |
| Performance | 15.8 - 20 hp | 11.8 - 14.9 kW |
| Torque | 55.3 - 70.1 ft-lbs | 75 - 95 Nm |
| Rapid Traverse X | 1,417 ipm | 36 m/min |
| Rapid Traverse Y | 1,417 ipm | 36 m/min |
| Rapid Traverse Z | 1,417 ipm | 36 m/min |
| Number of Stations | 32 / SK40 (opt BT40) |
| Max Tool Diameter | 2.95 in | 75 mm |
| Max Tool Diameter w/o Adjacent | 4.92 in | 125 mm |
| Max Tool Length | 11.81 in | 300 mm |
| Max Tool Weight | 15.43 lbs | 7 kg |
| Size | XL | XL |
| Length | 101.97 in | 2,590 mm | 114.57 in | 2,910 mm |
| Width | 66.93 in | 1,700 mm | 66.93 in | 1,700 mm |
| Height | 111.22 in | 2,825 mm | 111.22 in | 2,825 mm |
| Weight | 8,818 lbs | 4,000 kg | 9,039 lbs | 4,100 kg |
