VC1650 Large Vertical Machining Center
Location:Boca Raton, FL
Description

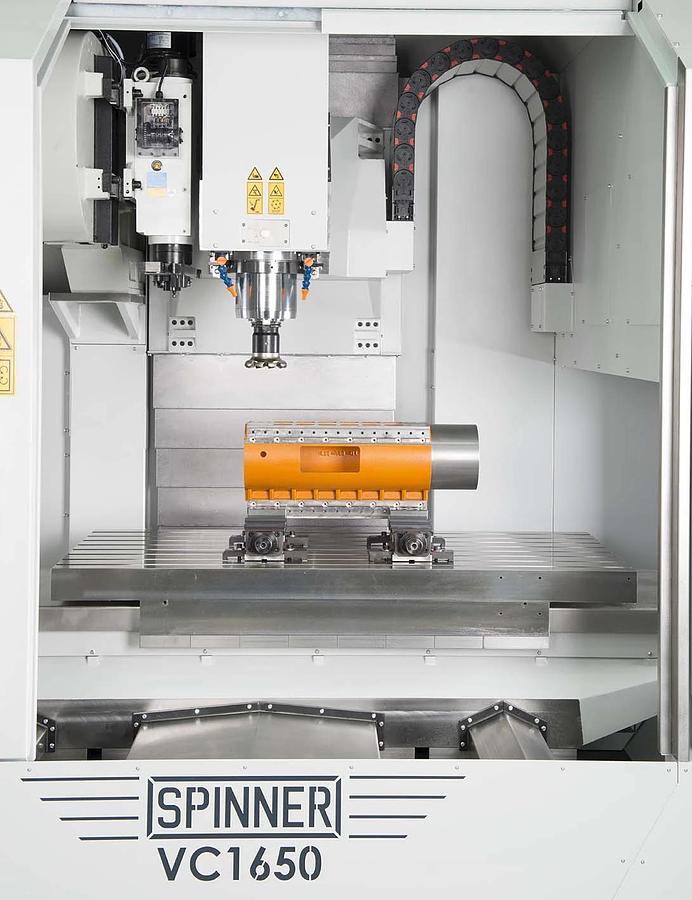

Large precision vertical machining center in a compact footprint with easy to reach table.
The VC1650 is a large 3-axis Vertical Machining Center for high performance cutting with spindle speeds up to 18,000 rpm. This machine is perfect for large workpieces with a 70.9 x 32.3 in / 14,409 lbs table to accommodate parts of many different sizes and materials. It is available with the most modern controls such as Fanuc, Heidenhain, and Siemens.

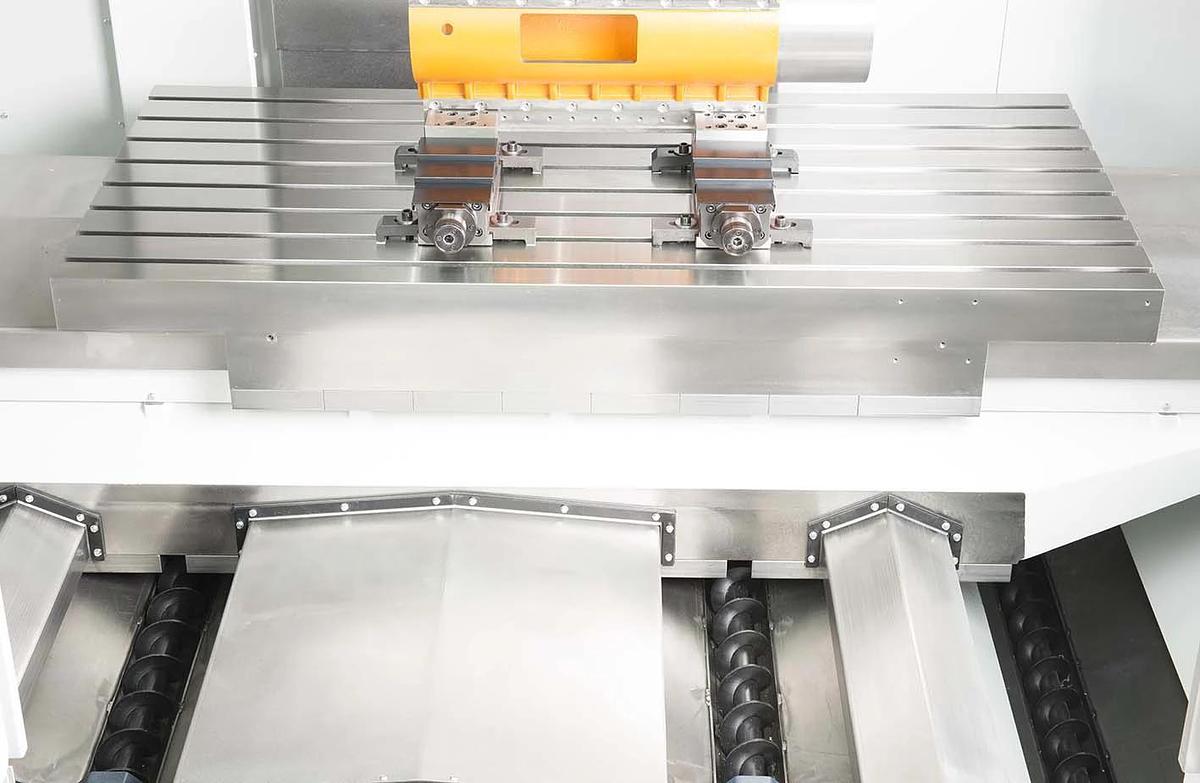

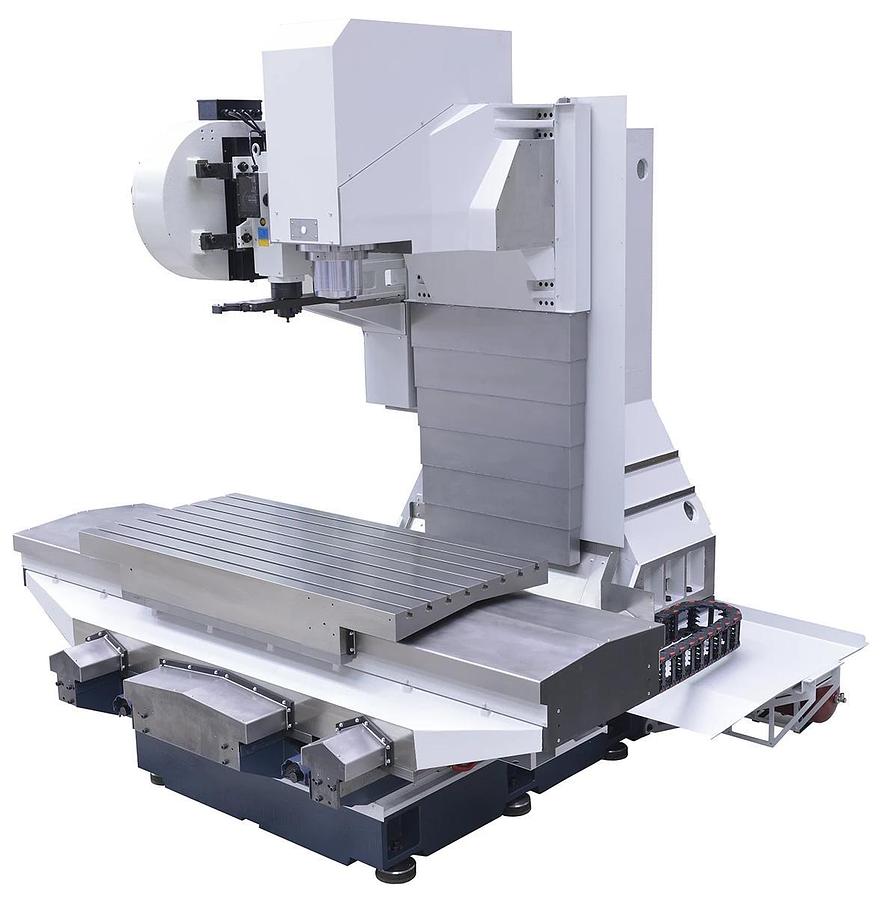

Designed as a large machining center, the VC1650 has a patented one-piece way covers in the X & Y axis, eliminating the accordion style cover, and reducing the required floor space up to 30% over similar machines with the same working area. The overall design is perfect where there is very limited floor space.
Specifications
| Manufacturer | Spinner |
| Model | VC1650 Large CNC Mill |
| Condition | New |
| Stock Number | 00016 |
| Table Dimensions | 70.9 x 32.3 in | 1,800 x 820 mm |
| Max Table Load | 14,409 lbs | 12,000 kg |
| T-Slots | 8 x 18H7 |
| X | 65 in | 1,650 mm |
| Y | 32.3 in | 820 mm |
| Z | 32.3 in | 820 mm |
| Speed | 8,000 rpm | 10,000 rpm | 14,000 rpm | 15,000 rpm | 18,000 rpm |
| Taper | SK50 | SK40 | SK40 | SK40 | HSK63 |
| Performance | 83 hp (62 kW) | 83 hp (62 kW) | 29.5 hp (22 kW) | 61.6 hp (46 kW) | 47 hp (35 kW) |
| Torque | 253 lb-ft (343 Nm) | 210 lb-ft (285 Nm) | 86 lb-ft (117 Nm) | 148 lb-ft (200 Nm) | 96 lb-ft (130 Nm) |
| Rapid Traverse X | 1,772 ipm | 45 m/min |
| Rapid Traverse Y | 1,772 ipm | 45 m/min |
| Rapid Traverse Z | 1,772 ipm | 45 m/min |
| Number of Stations | 32 / SK40 (opt 60) |
| Max Tool Diameter | 4.92 in | 125 mm |
| Max Tool Length | 15.75 in | 400 mm |
| Max Tool Weight | 33 lbs | 15 kg |
| Length | 139.8 in | 3,550 mm |
| Width | 108.3 in | 2,750 mm |
| Height | 124 in | 3,150 mm |
| Weight | 31,967 lbs | 14,500 kg |
