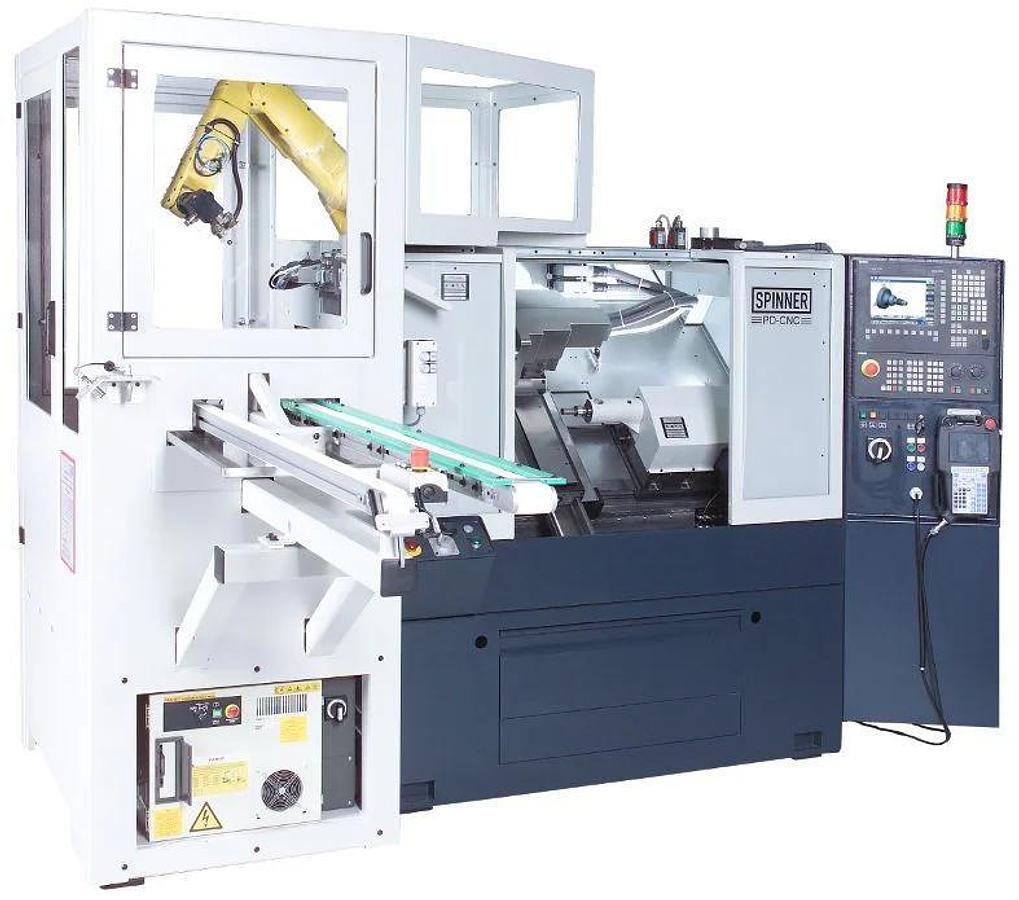

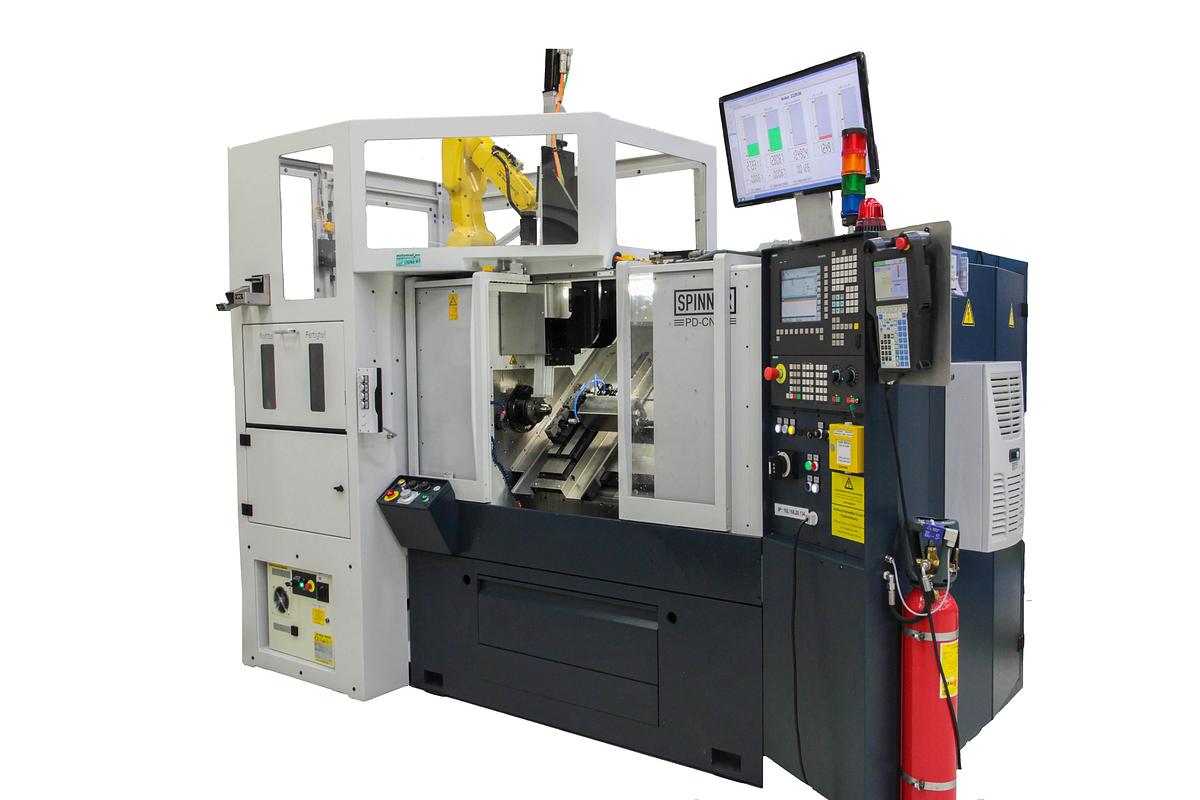

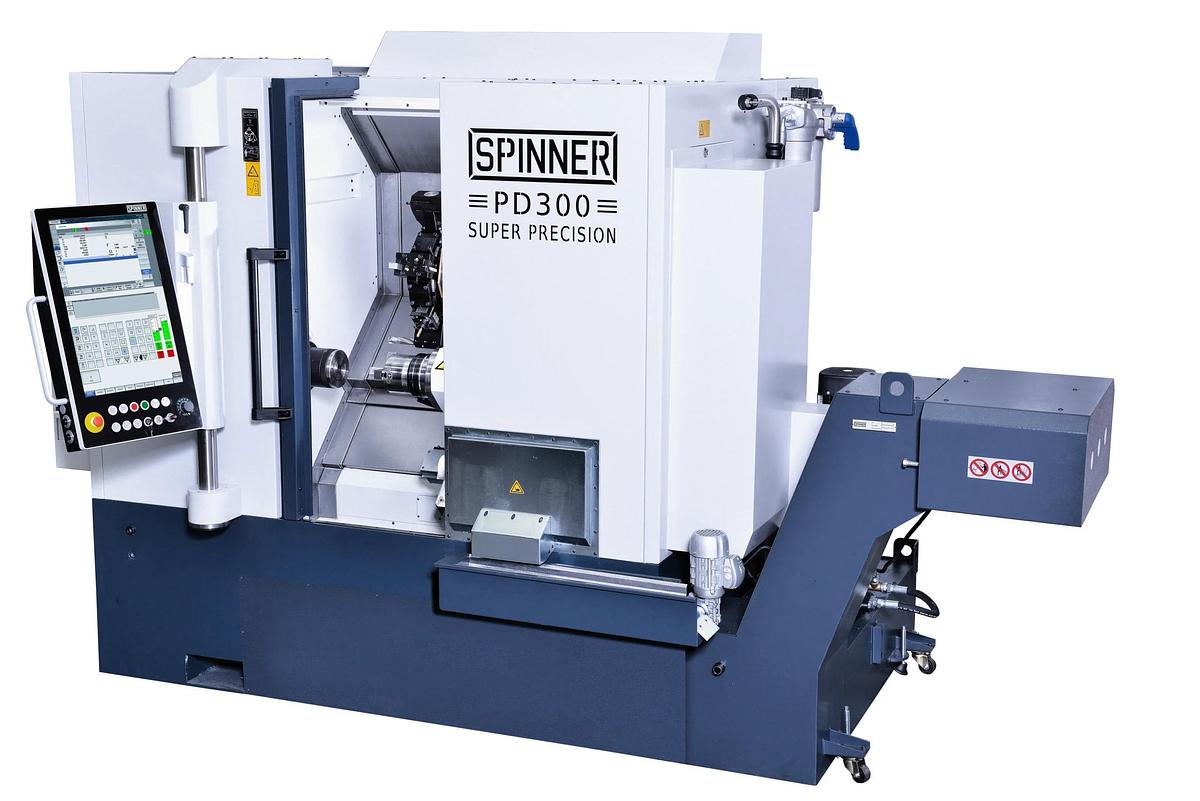

PD300 Micro Machining CNC Lathe
Location:Boca Raton, FL
Description
Compact high precision slant bed lathe with optional true Y-axis, live tooling and hard turning package.
High precision CNC lathe designed for micro machining and capable of hard turning. The PD 300 is a great choice when dimensional accuracy is highly demanded in the micron range but also best surface quality, form, and positional tolerance in the event of small and medium sized precision parts. Typically used in fine mechanics, optics, medical technology, or watch and jewelry sectors.
Specifications
| Manufacturer | Spinner |
| Model | PD300 Micro Machining |
| Condition | New |
| Stock Number | 00020 |
| Bar Capacity (Std) | 1.4 in | 36 mm |
| Bar Capacity (Opt) | 2.0 in | 52 mm |
| Swing Diameter | 15.7 in | 400 mm |
| Max Turning Diameter | 7.9 in | 200 mm |
| Max Turning Length | 13.8 in | 350 mm |
| X | 7.1 in | 180 mm |
| Y | +1.58 / -1.58 in | +40 / -40 mm |
| Z | 17.7 in | 450 mm |
| Speed | 7,000 rpm |
| Nose | 3.9 in | 100 mm |
| Chuck Diameter | 6.5 in | 165 mm |
| Performance (S6 40%) | 14.75 hp | 11 kW |
| Torque (S6 40%) | 60.5 ft-lb | 82 Nm |
| Rapid Traverse X | 590 ipm | 15 m/min |
| Rapid Traverse Y | 590 ipm | 15 m/min |
| Rapid Traverse Z | 945 ipm | 24 m/min |
| Stations | 12 / BMT45 |
| Live Tooling | 6,000 rpm |
| Performance | 7.4 hp | 5.5 kW |
| Torque | 25.8 ft-lb | 35 Nm |
| Length | 88.5 in | 2,247 mm |
| Wide | 75.8 in | 1,925 mm |
| Height | 84.8 in | 2,155 mm |
| Weight | 8,157 lbs | 3,700 kg |
