GTZ-2000 - Multi-tasking Turning Center
Location:Boca Raton, FL
Description
BRAND NEW MULTI-TASKING MACHINING TECHNOLOGY

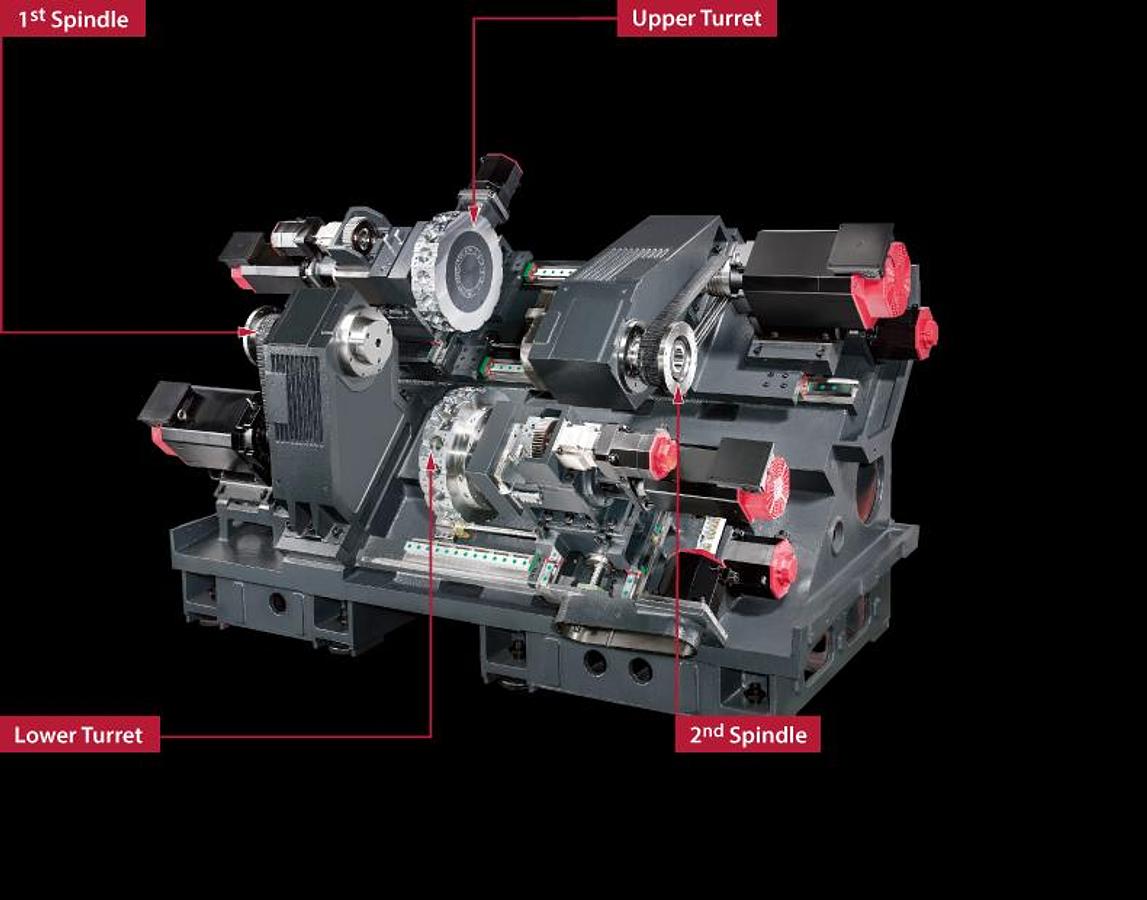

New twin spindle and twin turret combination
Upper and lower turret can be adjusted based on different machining requirements
Production capacity is 150% larger than average models

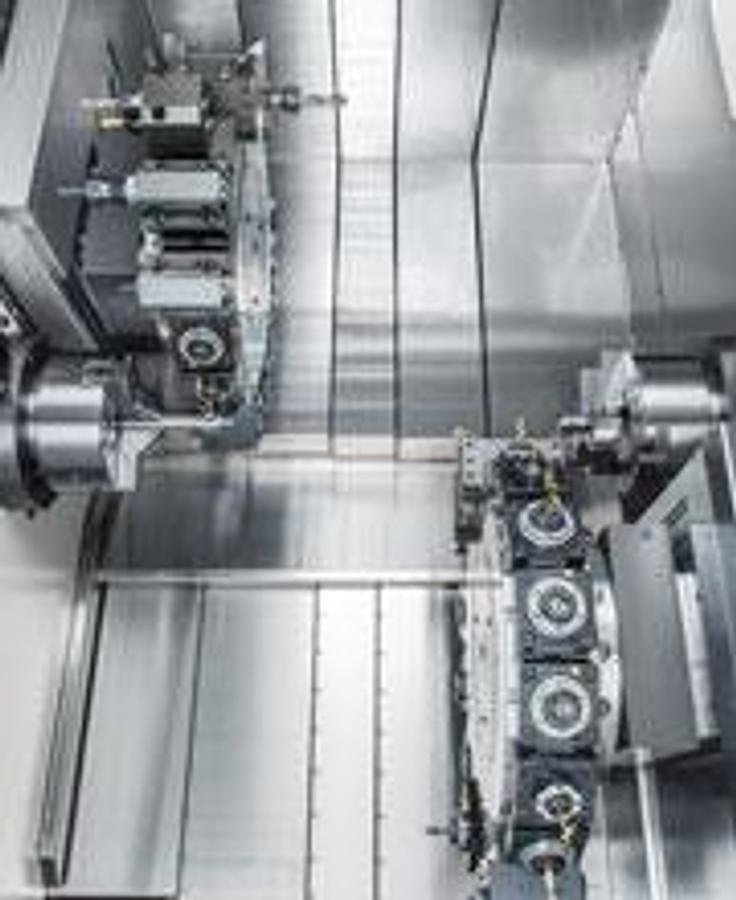

Upper turret working on left spindle, Lower turret working on right spindle

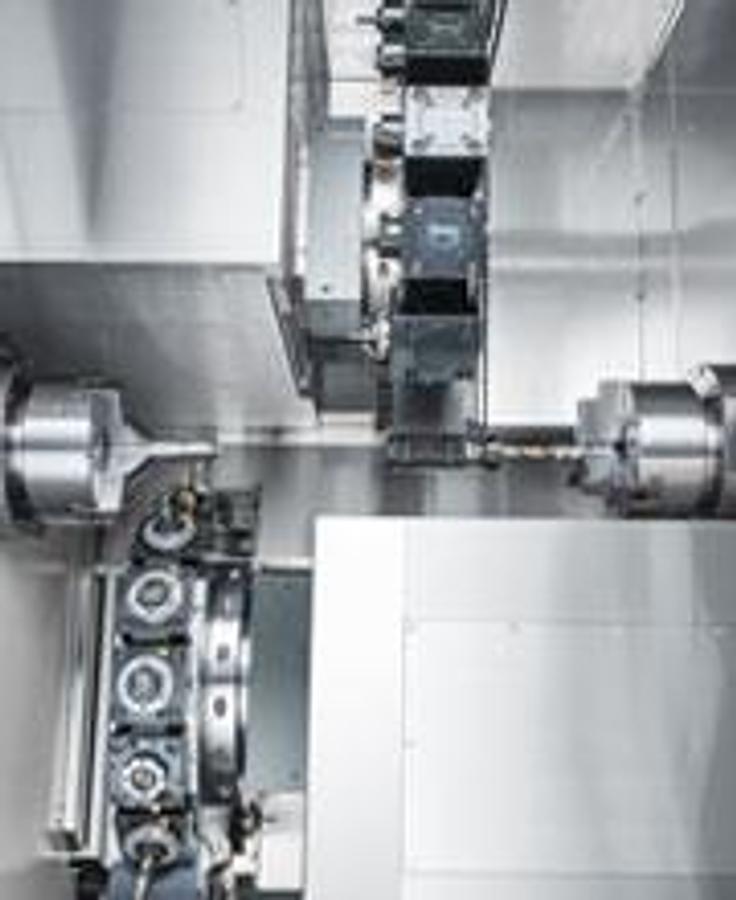

Upper turret working on right spindle, Lower turret working on left spindle

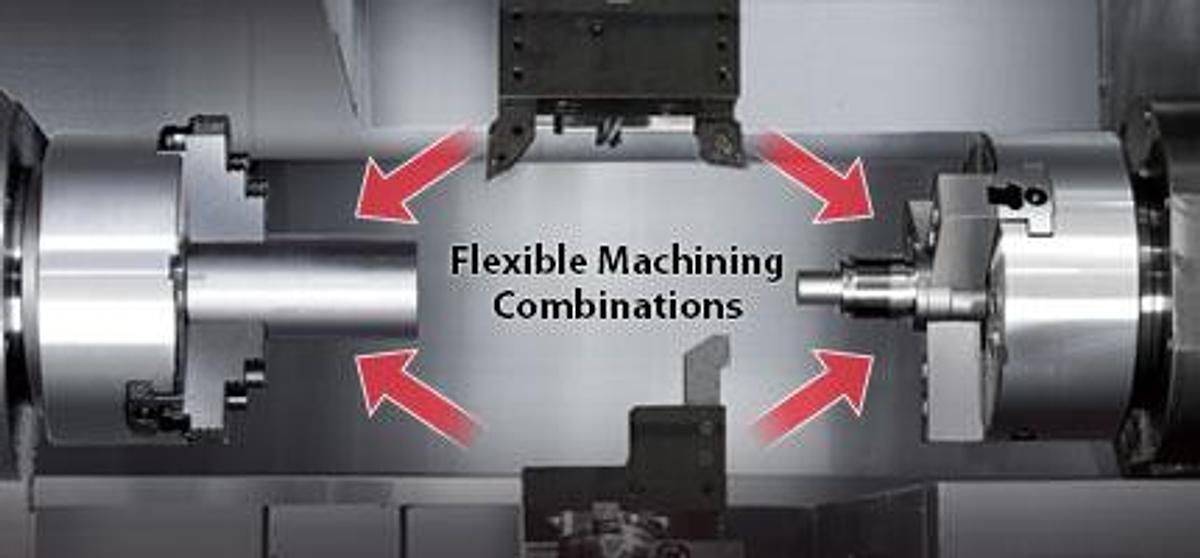

Work-piece can be moved between both spindles

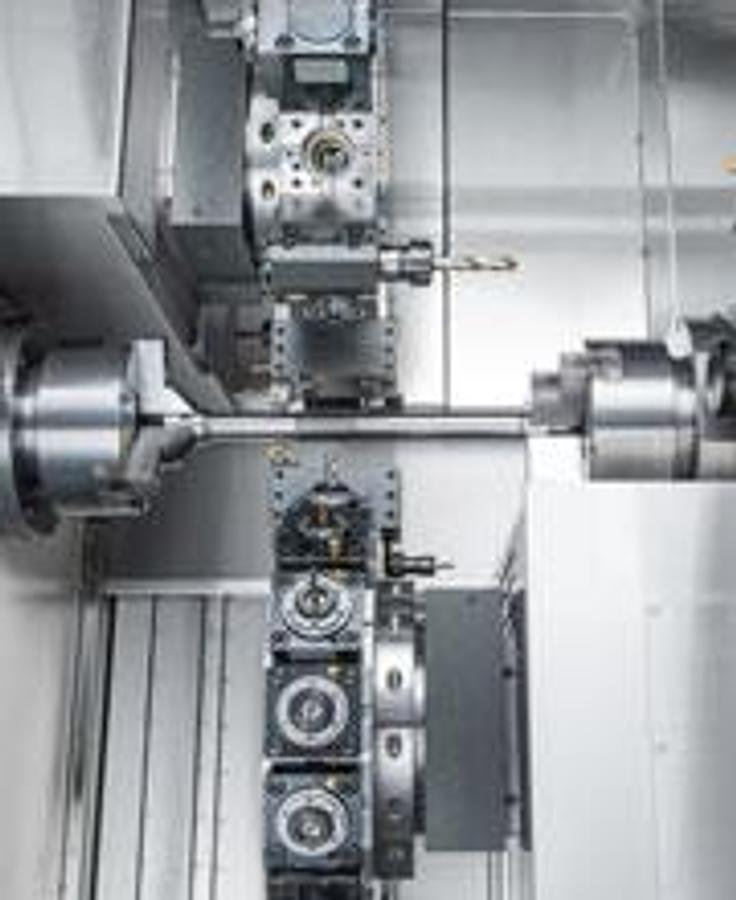

Both turrets can work on the work-piece simultaneously
SUPER RIGIDITY STRUCTURE
The low center of gravity 45° slant bed design provide a super rigid foundation for the headstock and turret.
By using Finite Element Analysis ( FEA ), optimal reinforced ribbings are directly cast into the one-piece bed structure.

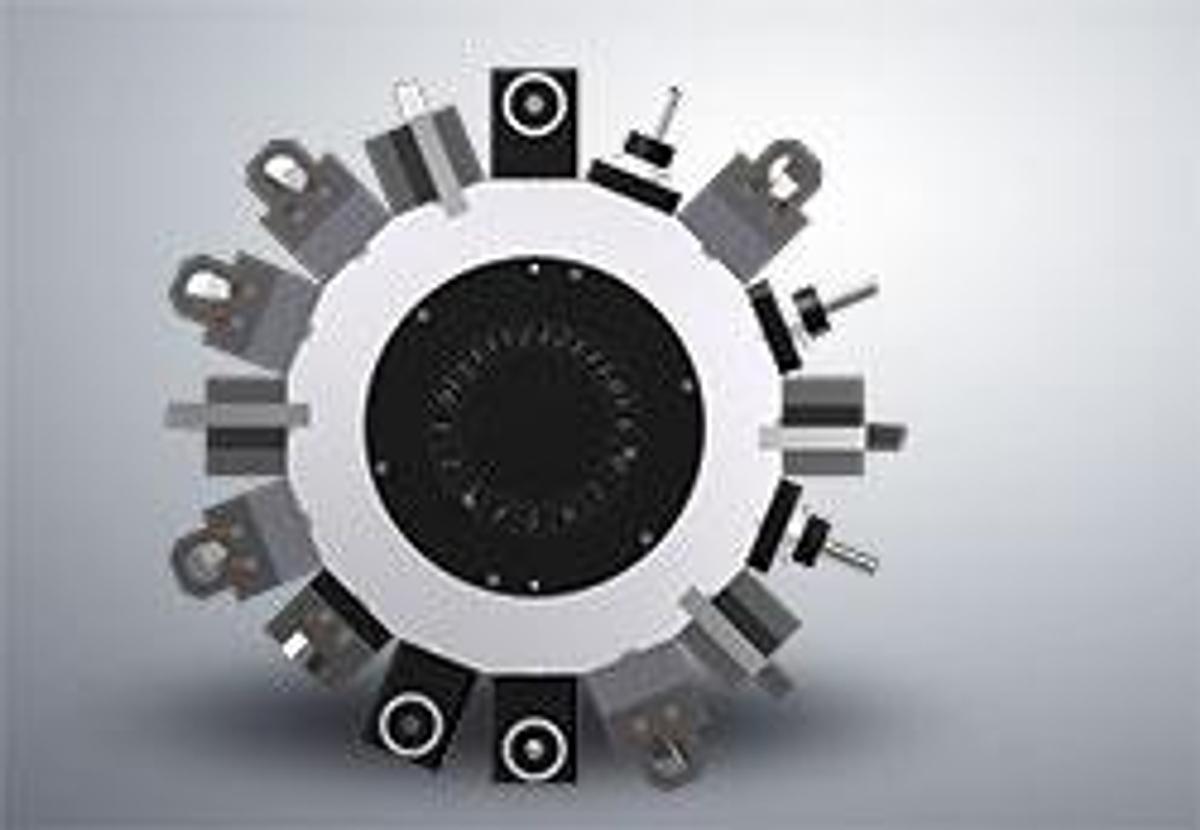

The optional 16-station turret

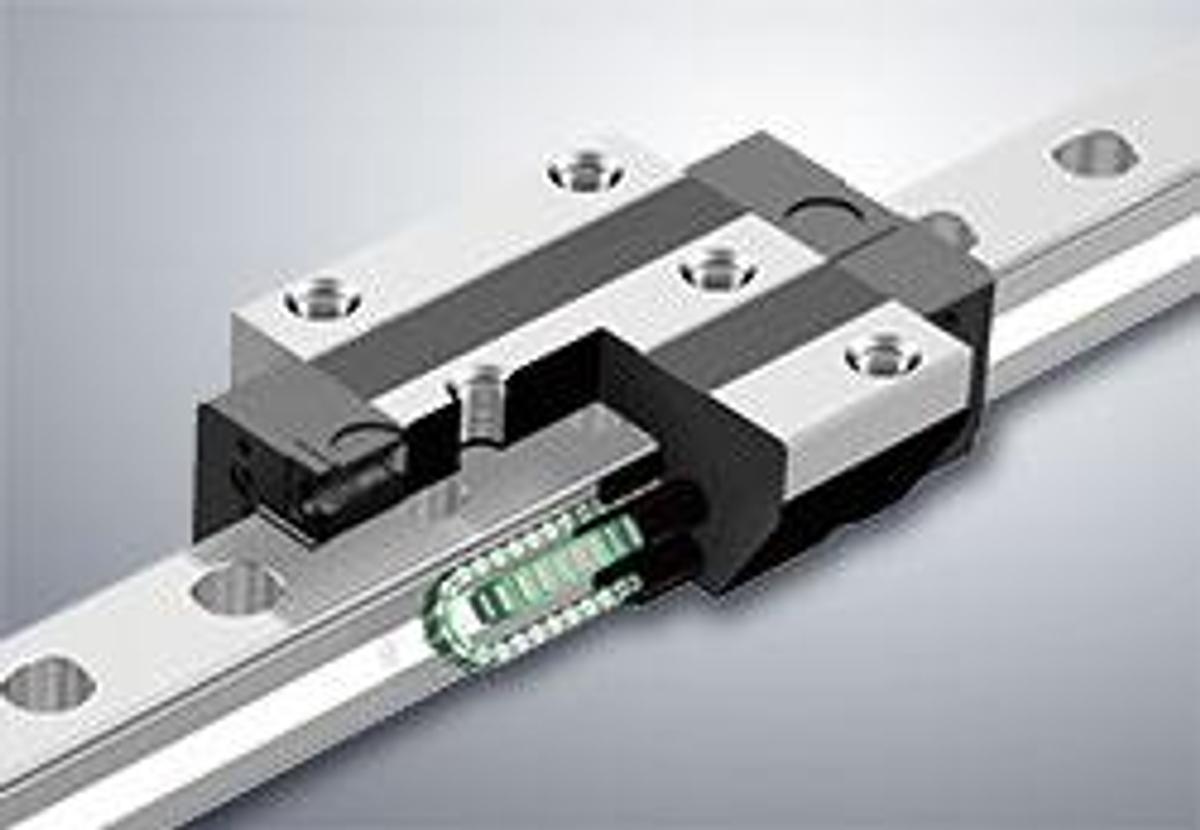

Roller type linear guide way

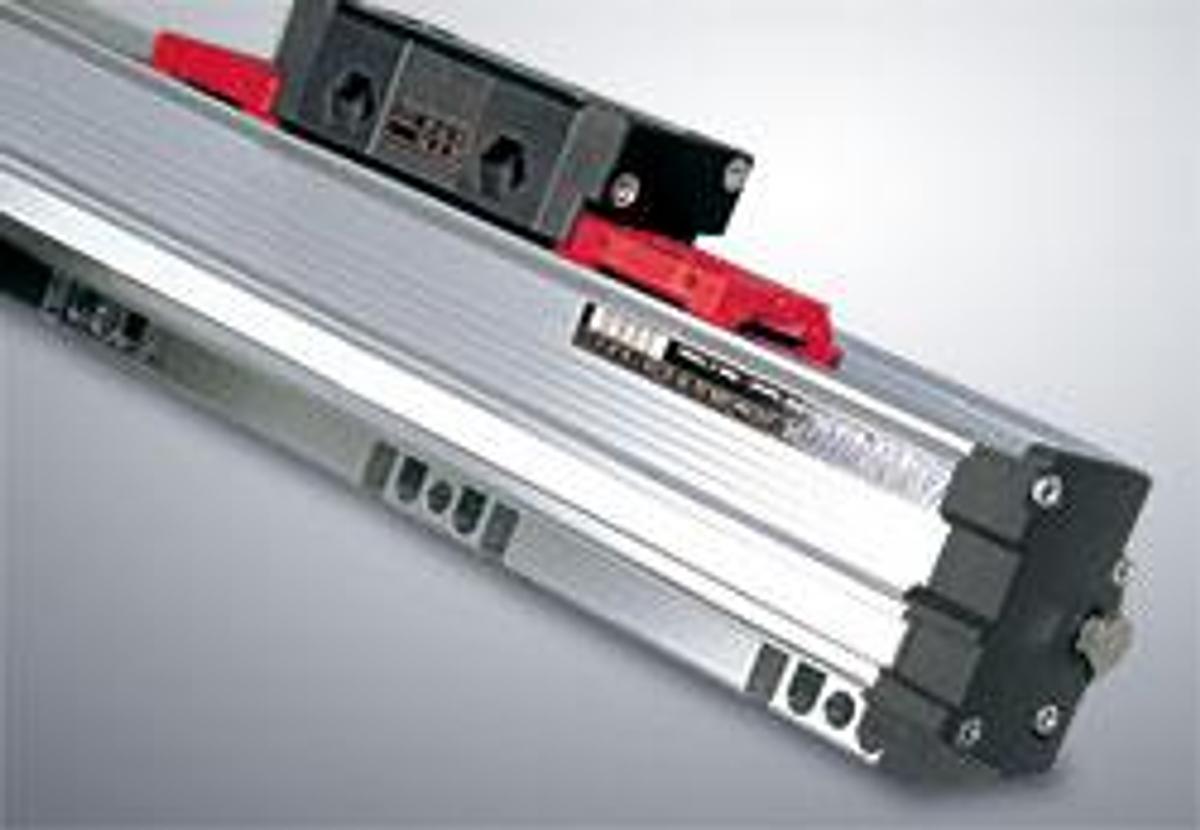

The optional high resolution close-loop linear scale
Specifications
| Manufacturer | Yama Seiki |
| Model | GTZ-2000 |
| Condition | New |
| Max. Swing Diameter | Ø 10.62" |
| Max. Turning Diameter | Ø 9.44" |
| Max. Turning Length | 17.16" |
| Spindle Speed | 4,800 rpm |
| Spindle Motor (cont. / 30min.) | 15 / 20 HP |
| Max. swing diameter | GTZ-2000: Ø 270 mm ( Ø 10.6" ) |
| Max. turning diameter | GTZ-2000: Ø 250 mm ( Ø 9.8" ) |
| Max. turning length | GTZ-2000: 604.8 / 615.8*1 mm ( 23.8" / 24.2" ) | GTZ-2600: 592.8 / 603.8*1 mm ( 23.3" / 23.8" ) |
| Chuck size | GTZ-2000: 6" ( Big-bore ) | GTZ-2600: 8" ( Big-bore ) |
| Bar capacity | GTZ-2000: Ø 51 mm ( Ø 2" ) | GTZ-2600: Ø 65 mm ( Ø 2.5" ) |
