FV-560 - 5-axis Vertical Machining Center

X-axis travel : 22.04" / 37.79"

Y-axis travel : 20.07" / 23.62"

Z-axis travel : 18.11" / 18.89"

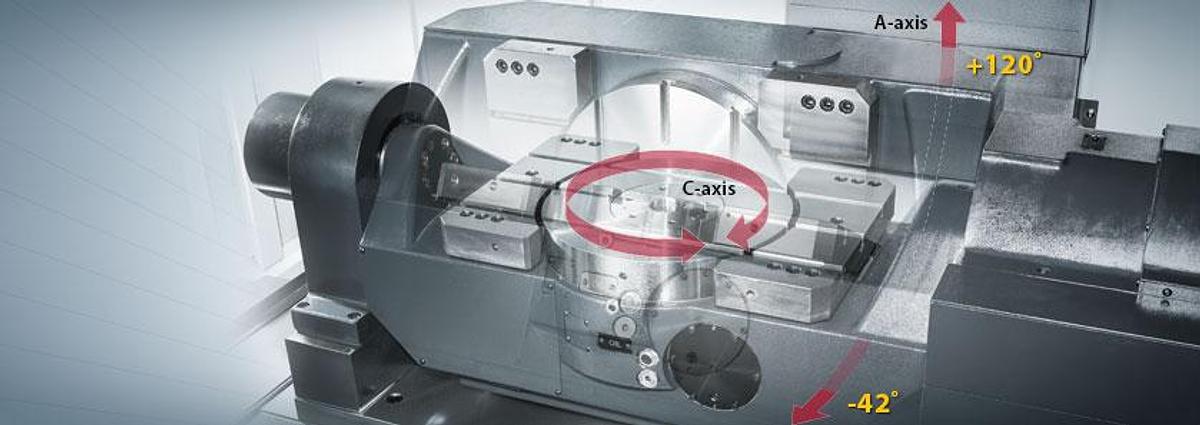

A-axis swiveling range : 200˚ ( 100˚ ~ -100˚ ) /
162˚ ( -42˚ ~ +120˚ )

C-axis rotary range : 360˚

Table size : ( Ø 8.26" ) ; 22.04" x 14.37" ( Ø 13.77" )
  ( X x Y )

Spindle taper : BBT40

Spindle motor output : 7.4 / 10 HP ; 13 / 18 HP
   ( cont. / 30 min. )

X / Y / Z axes rapid feed rate : 1,260 / 1,260 / 945 IPM
1,415 / 1,415 / 945 IPM

Tool magazine capacity : 24 / 30 T

5-AXIS VERTICAL MACHINING CENTER

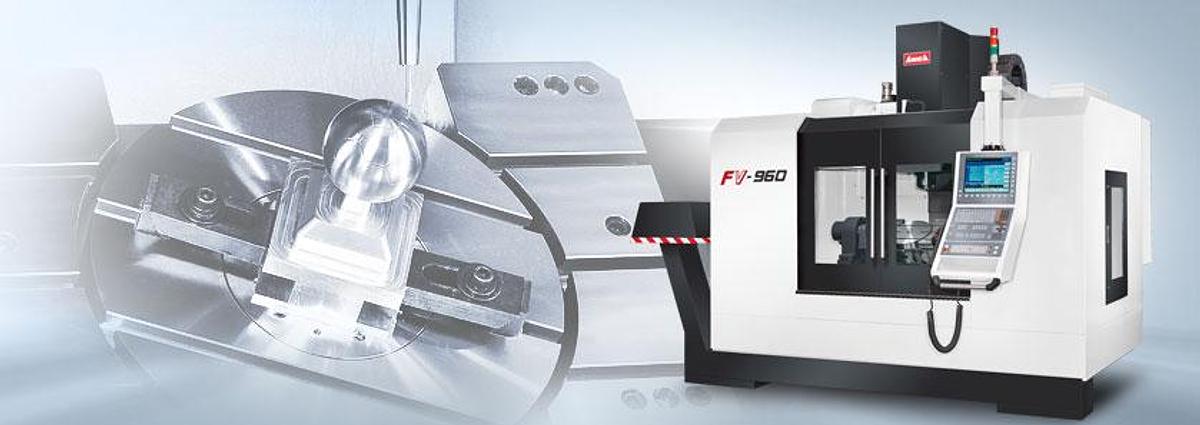

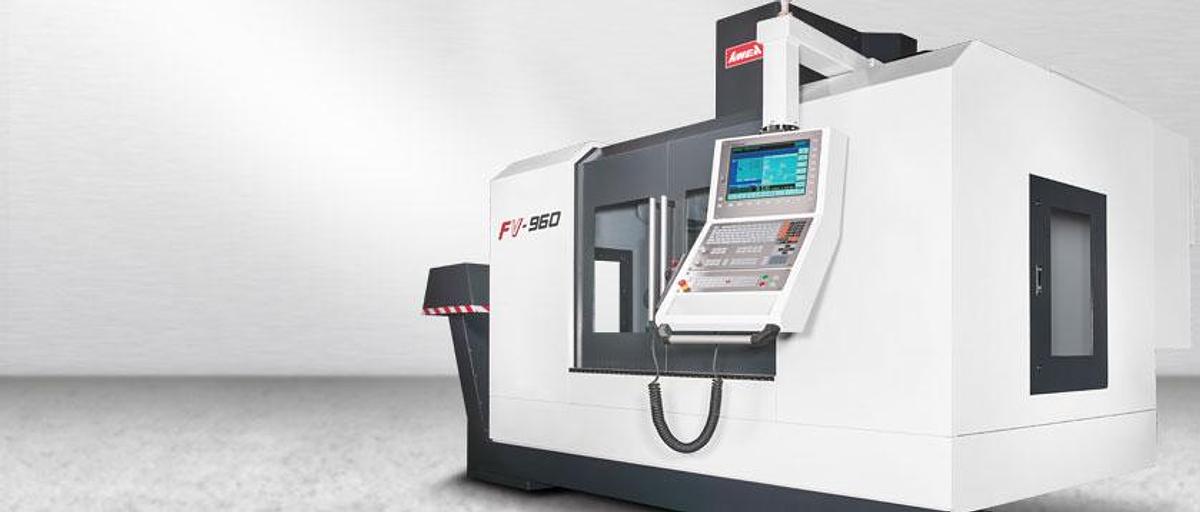

Derived from YAMA SEIKI's mature R&D technology and manufacturing capability, FV-960 is especially designed for medium and small intricate parts machining. FV-960 is equipped with high efficiency direct drive spindle and strong roller linear guide ways, combines with high performance A / C axes rotary table to provide you high productivity and comprehensive 5-axis cutting solution. FV-960 has the best performance/cost ratio among the 5-axis machines in the same range, which can meets your various needs for today and tomorrow.

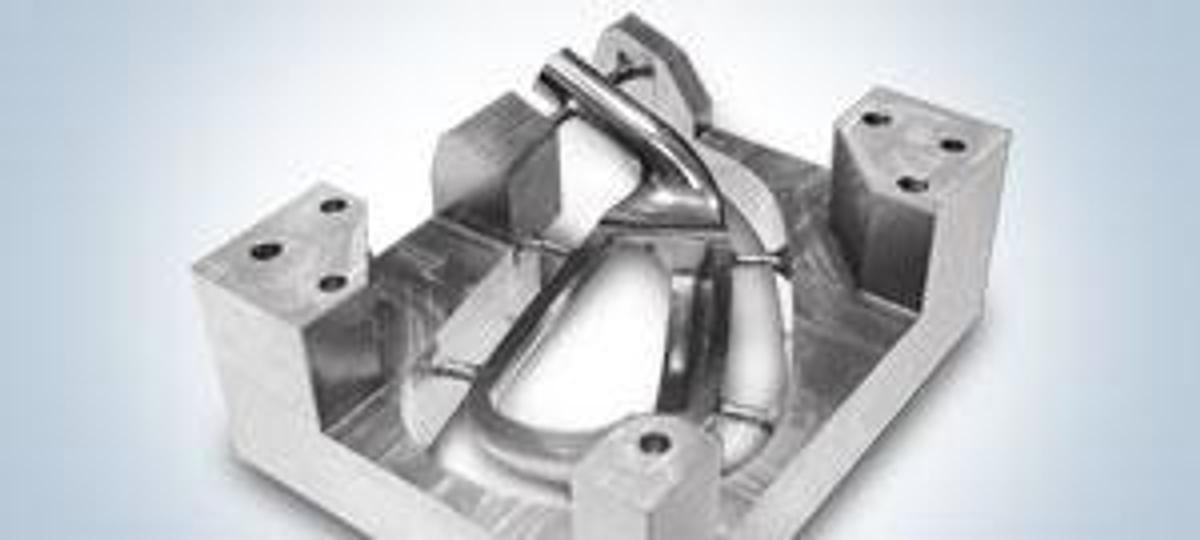

High precision, high complexity parts machining requirement

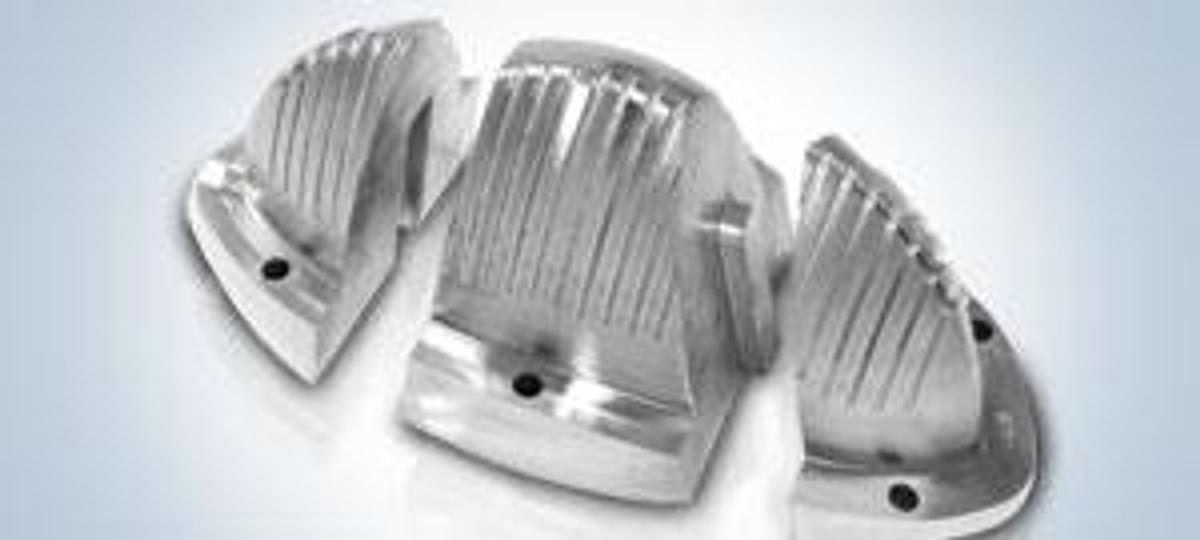

High precision, high stability parts machining requirement

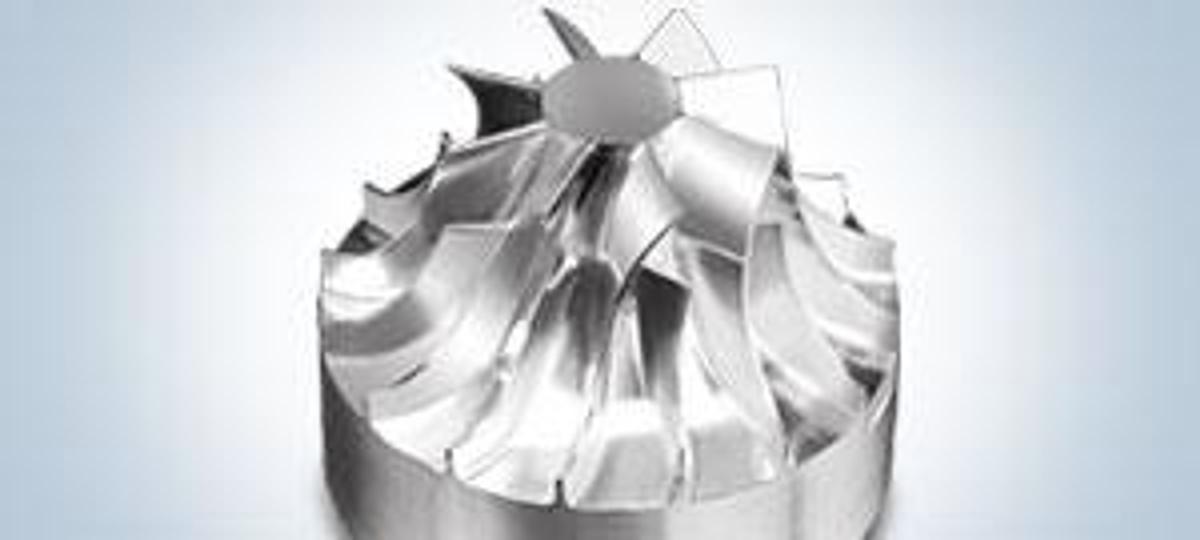

High efficiency, difficult cutting materials machining requirement

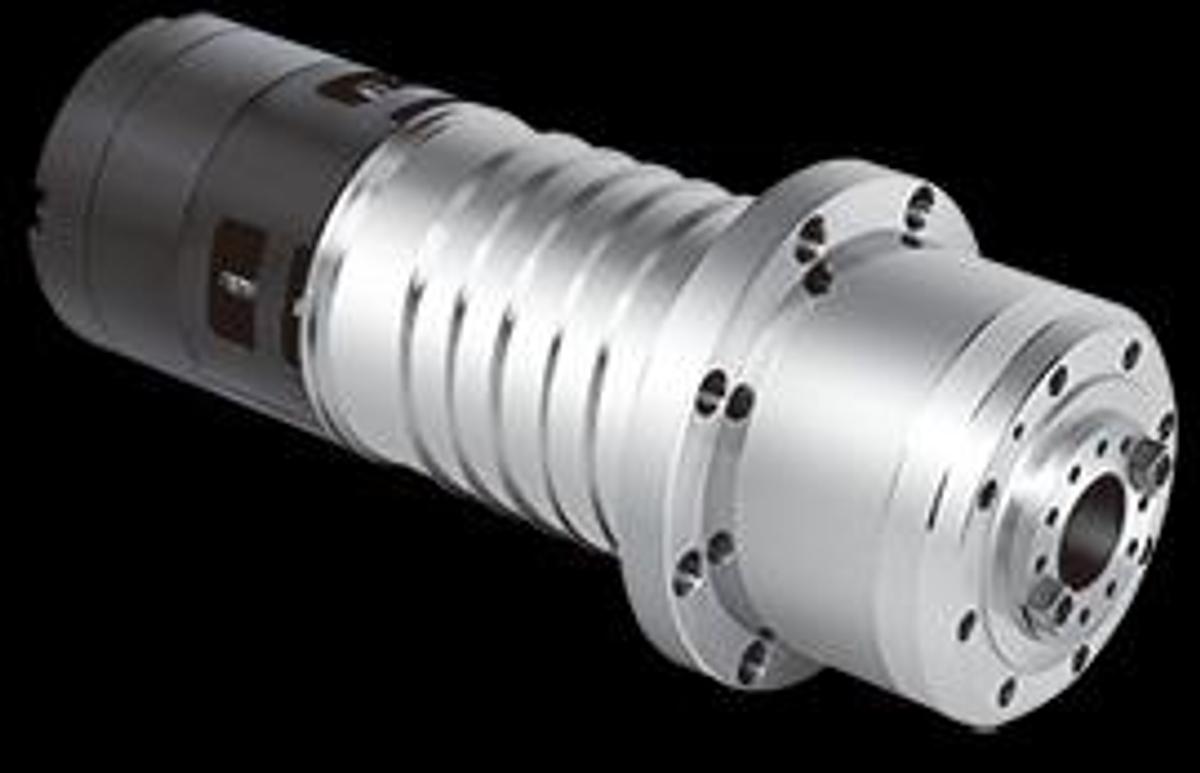

High Performance Direct Drive Spindle

Direct-drive spindle efficiently separates the heat generated from the motor, which reduces deformation, therefore increasing machining accuracy.

Floating type hydraulic tool release device eliminates pressure on the spindle bearing when releasing a tool.

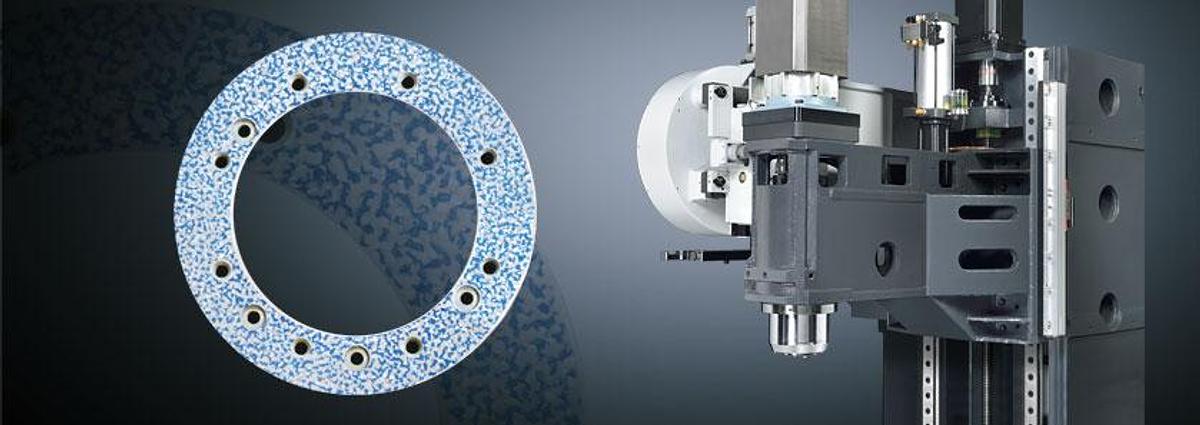

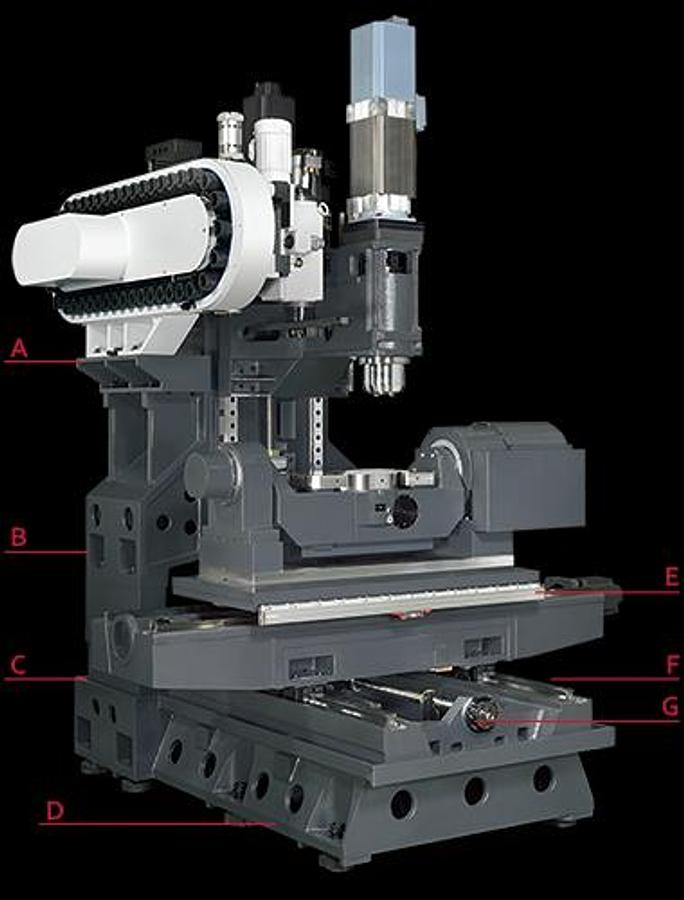

The contact surfaces between headstock and spindle are all precisely hand scraped to ensure optimal performance and precision.

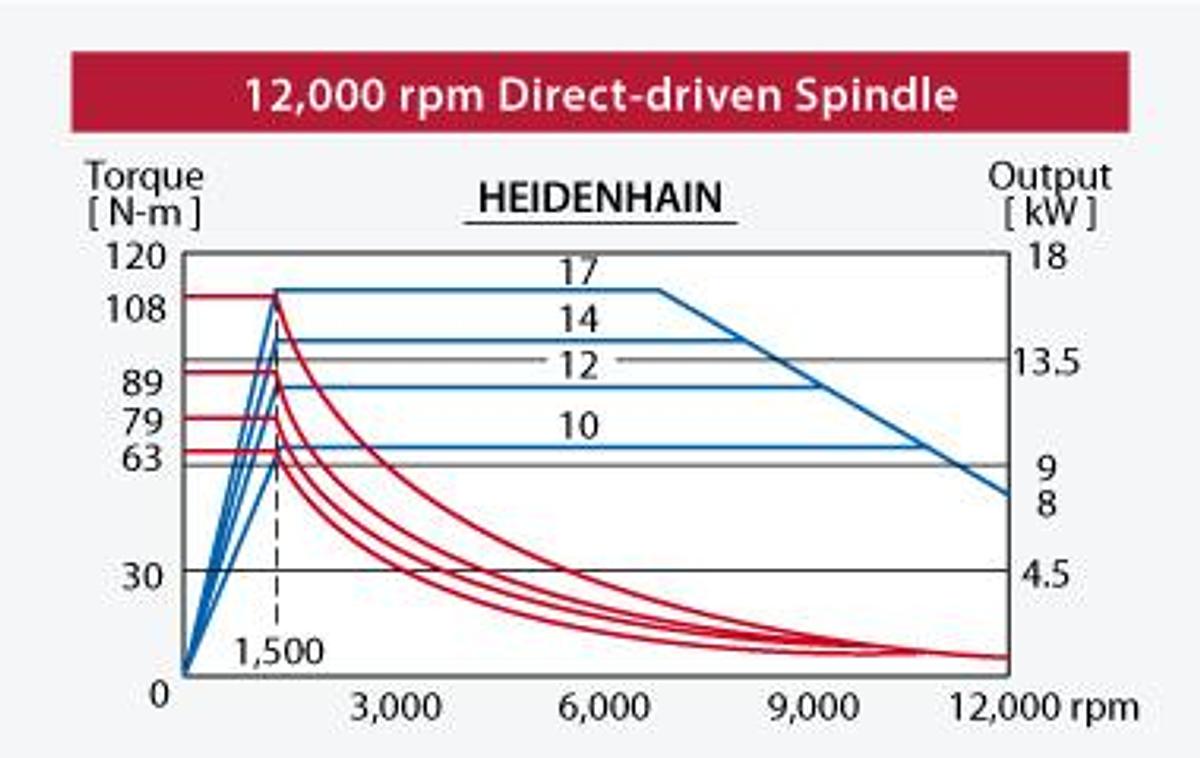

Adopted with high power HEIDENHAIN spindle motor, 12,000 rpm and 15,000 rpm spindle for options to meet your variety of processing characteristics.

The Best Configuration

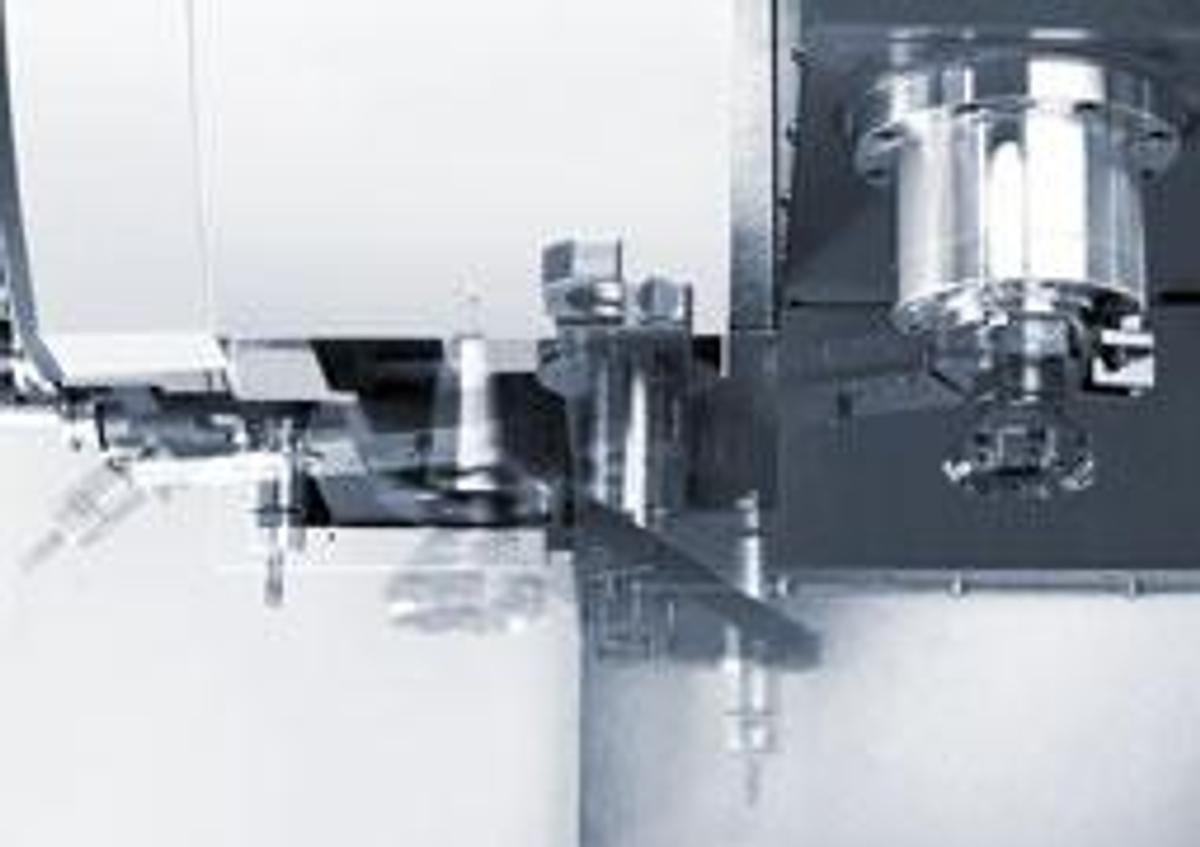

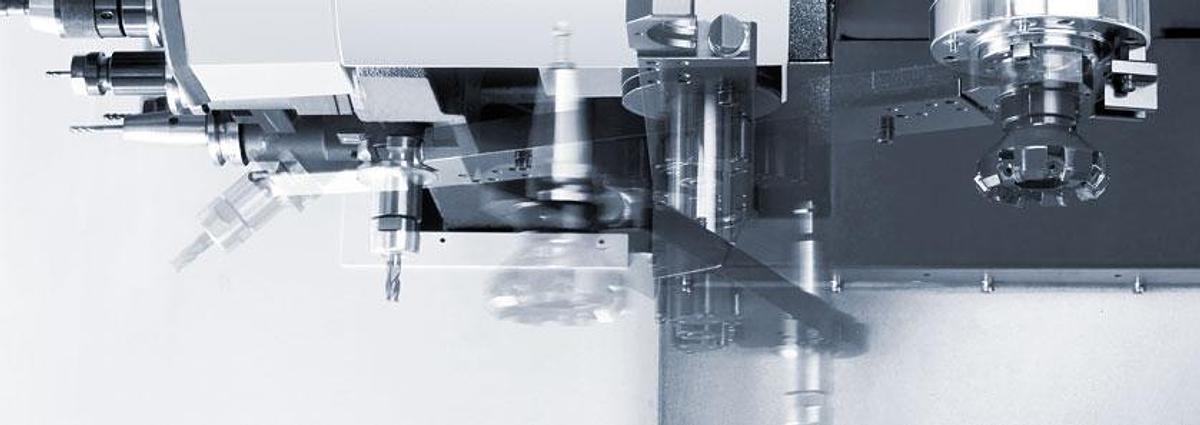

FV-960 is standard with 30T arm type tool exchange system and random type tool selection to shorten tool exchange time, and enhance processing efficiency.

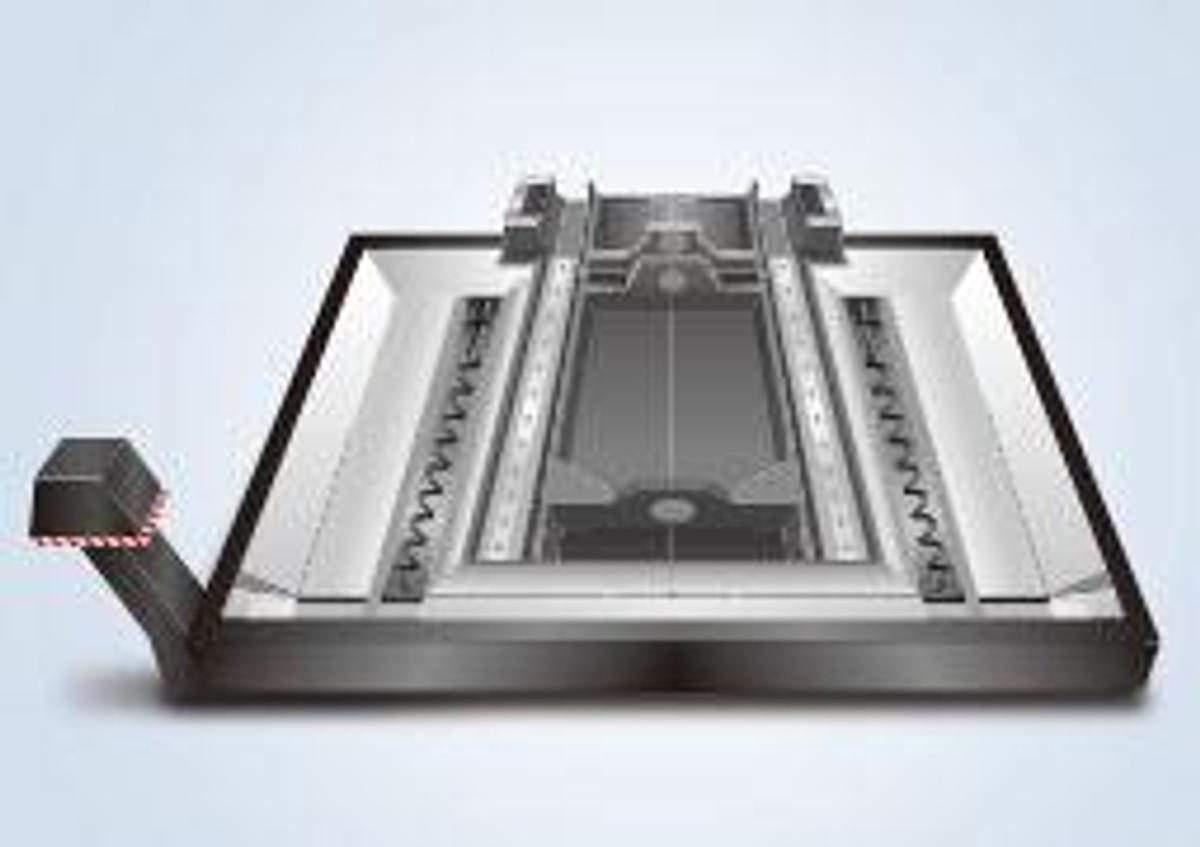

Chip removal system is adapted with chip wash down, chip auger, and chip conveyor to provide high efficiency and high reliability achievement.

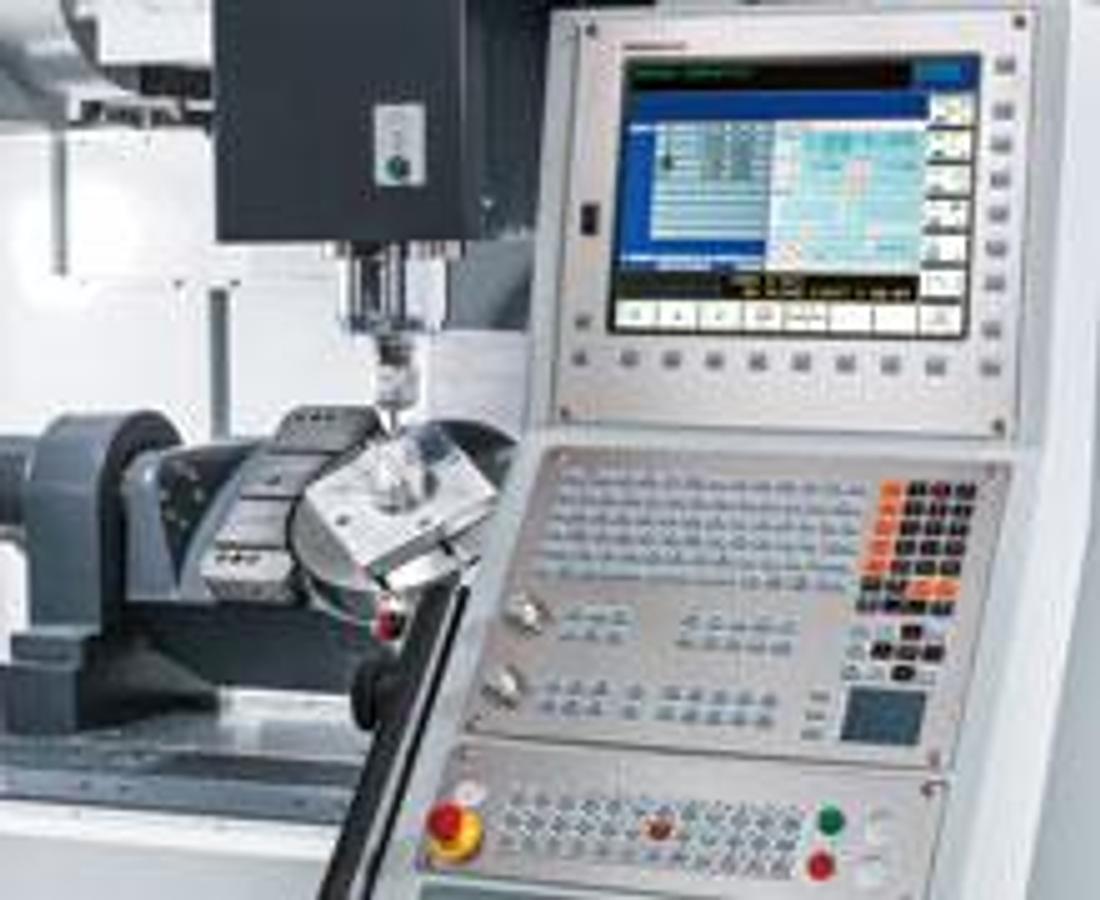

The HEIDENHAIN iTNC530 features optimized motion control, short block processing times and special control strategies. It enables you to reach very high machining speeds and the best possible contour accuracy—particularly when machining 2-D contours or 3-D shapes.
