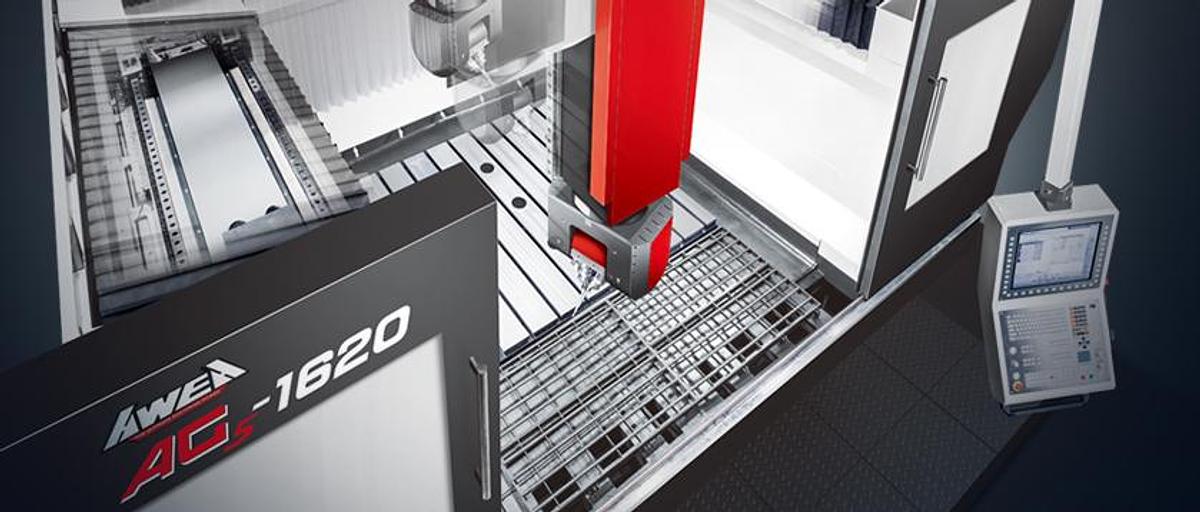

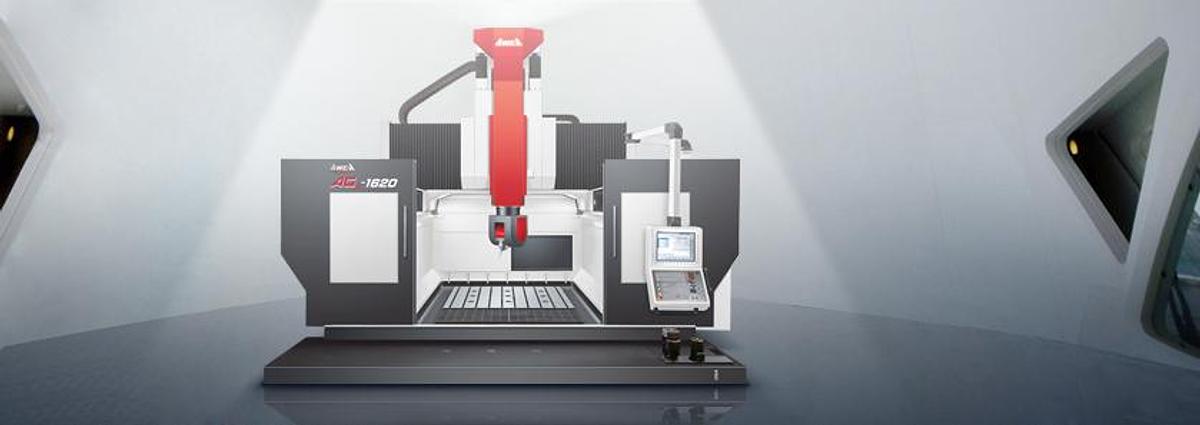

AG5 - Gantry Type High Speed 5 axes Machining Center

X-axis travel : 62.9" / 125.9"

Y-axis travel : 78.7"

Z-axis travel : 39.3"

Dist. between columns : 118.1" ( 110.4" )
( with water eliminator )

Table load capacity : 4.2 PSI

Spindle taper : HSK-A63

Spindle motor ( S1 / S6 40% ) : 56 / 74 HP

X / Y axes rapid feed rate : 2,362 IPM

Z-axis rapid feed rate : 1,968 IPM

Gantry Type High Speed 5 Axes Machining Centers

• 40% less floor space required compared to other bridge type machines with similar travel ranges.
• All axial movements are executed by the cutting tool instead of the work-piece, causing less load on the axes and thus improving dynamic accuracy.

• ITALIAN made two axes head designed for high performance & high stability.
• A variety of milling heads are available optionally - high rotation speed / high torque / compact structure.

• The X and Y axes are driven by linear motors providing low wear, zero backlash and high acceleration.
• The Z-axis is driven by symmetrically arranged servo motors and ballscrews providing optimal dynamic performance.
• The standard HEIDENHAIN linear scales ensure precise positioning accuracy.

• The GERMAN made hydraulic unit requires only 20% of the space ordinary hydraulic units occupy. It uses up to 90% less electricity than traditional hydraulic units, thus significantly reducing running costs.

• AWEA technicians have attended TECHNAI OEM training in Italy and can provide fast and efficient after-sales service for the two axes head to considerably reduce machine downtime and costs for our customers.

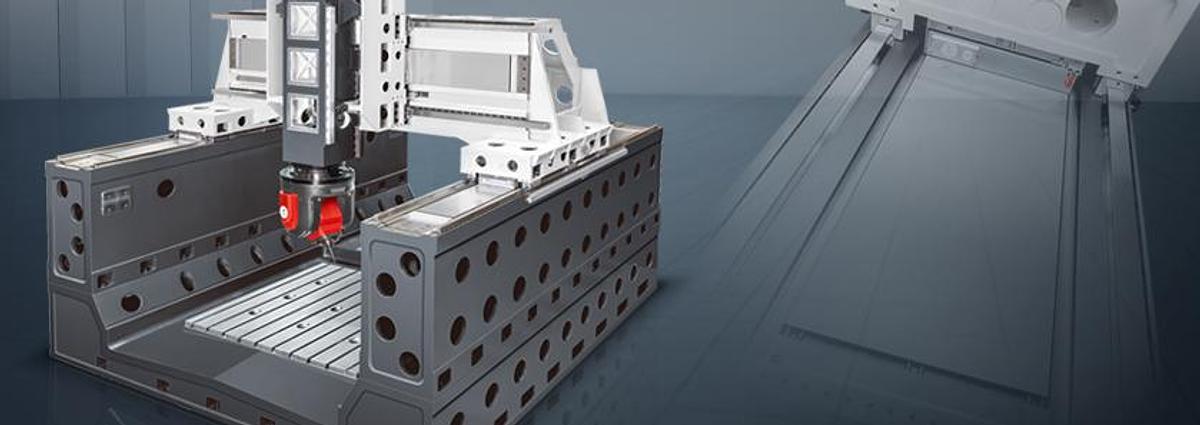

Super Rigid Structure

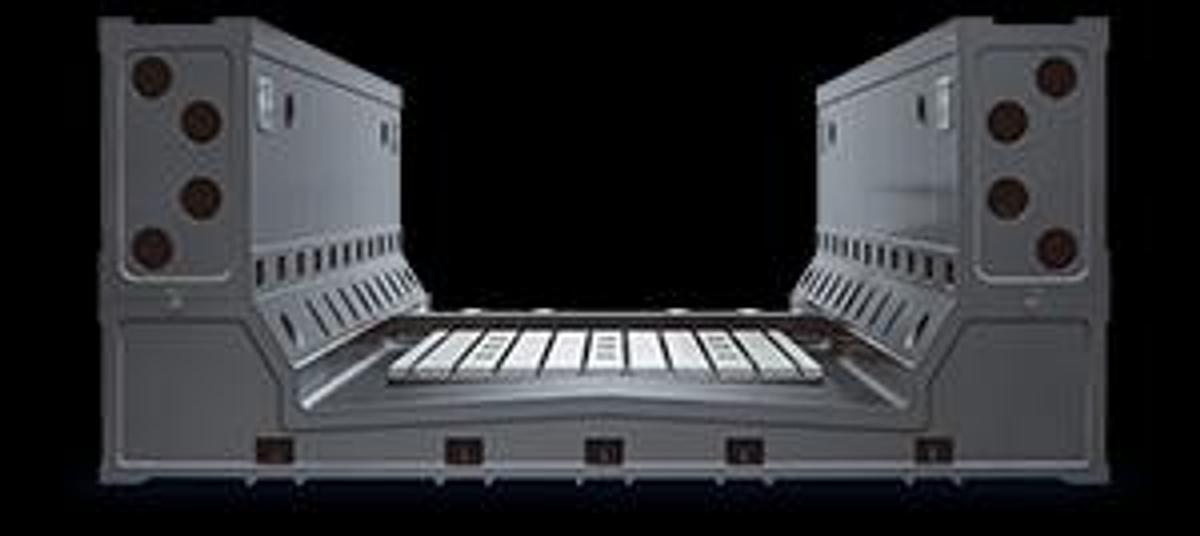

• The highly rigid U-shaped machine base provides shock dampening and extremely low deformation properties. It offers excellent support for all moving members even under high-speed and heavy cutting conditions.

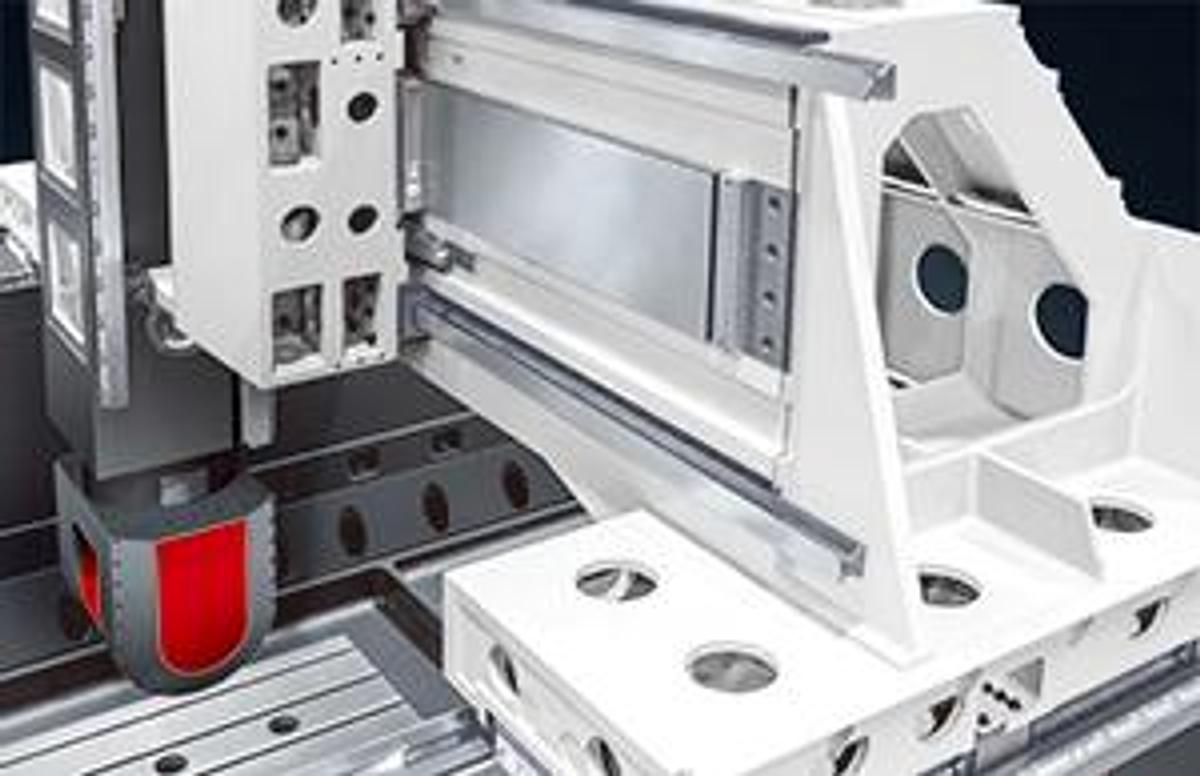

• The X-axis is supported by 4 linear guideways and 12 sliding blocks, that provide excellent rigidity and enhance accuracy.

• The highly tensioned Y-axis' box structure with special light weight rib enhancements provides the structural rigidity needed for heavy cutting. It reduces the inertia during high speed movements and adds significantly to the dynamic response ability of the X-axis.

• The super rigid roller type linear guide ways on the X, Y and Z axes provide heavy-duty cutting, fast movement and low friction capabilities.

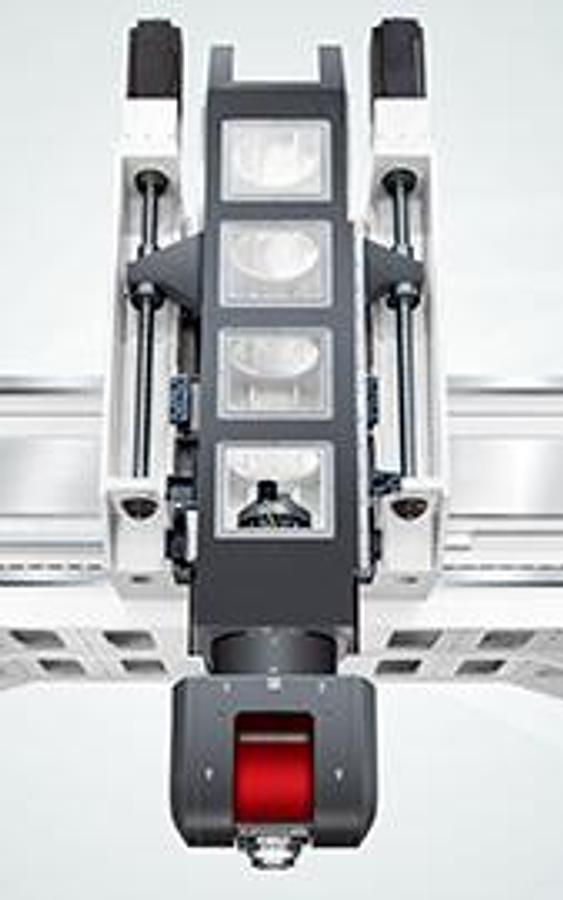

• The Z-axis adopts a dual drive system with two servo motors and ballscrews arranged symmetrically to balance torque and control thermal distortion, thus offering heavy duty cutting with optimal accuracy.

• Two linear guideways with three sliding blocks each support the headstock. They ensure excellent machining accuracy even when the Z-axis is fully extended.
• The headstocks' multi-layered box structure design is light weight and highly rigid. It also offers excellent cooling properties, thereby ensuring optimal accuracy during long term precision cutting operations.

• The 24T / 30T chain type ATC imposes no force on the spindle bearings during tool changes, thus effectively extending the spindle's service life.
• The tool magazine is fully isolated from the work area. The auto door opens during tool changes only, thus preventing chips and coolant from contaminating the ATC mechanism, the tool magazine, and the tools and thereby ensuring long term tool change accuracy.

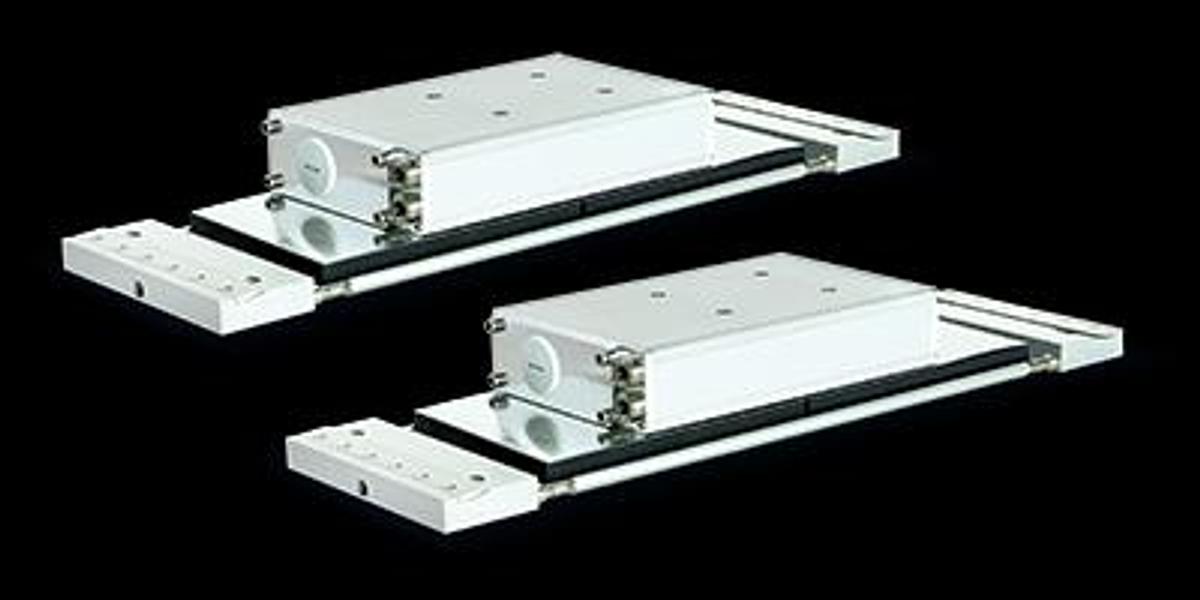

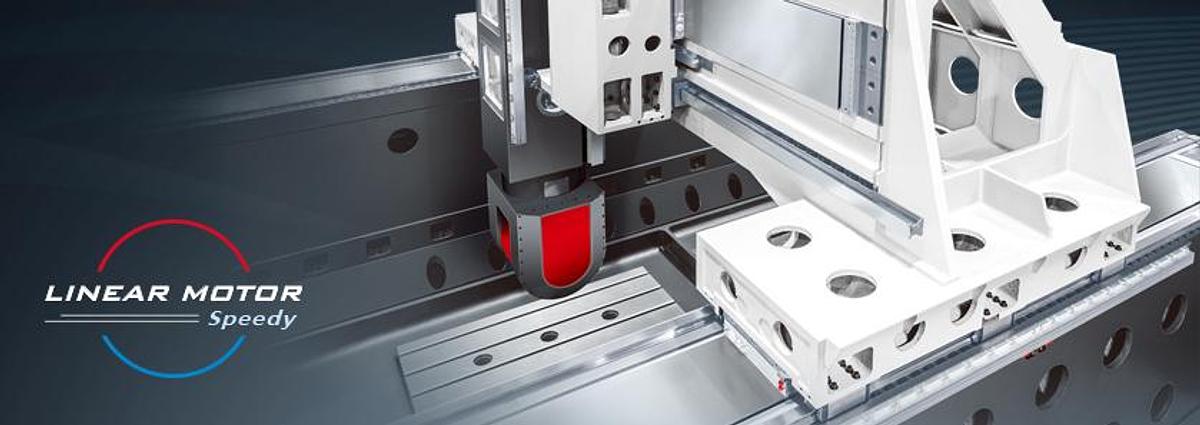

Advanced Linear Motor Drive Technology

The X and Y axes are driven by contactless linear motors. Compared to traditional motors they offer better positioning accuracy and higher efficiency. The drive system is frictionless and free of wear and tear, thus enhancing the dynamic responses of the axes and ultimately the surface quality of the work piece.

High Speed

• Ample 17,000 Nm ( peak ) thrust European made linear motors.
• Without any internal friction the full thrust is available to move the axes.
• Closed-loop high-resolution optical scales on all linear axes ensure optimal accuracy.
• Axial control with optimized parameters.

High Precision

• Optimal positioning accuracy with zero backlash.
• Free of internal friction and wear the linear motors ensure high accuracy for a long time.
• The comprehensive coolant circulation design effectively reduces thermal deformation.

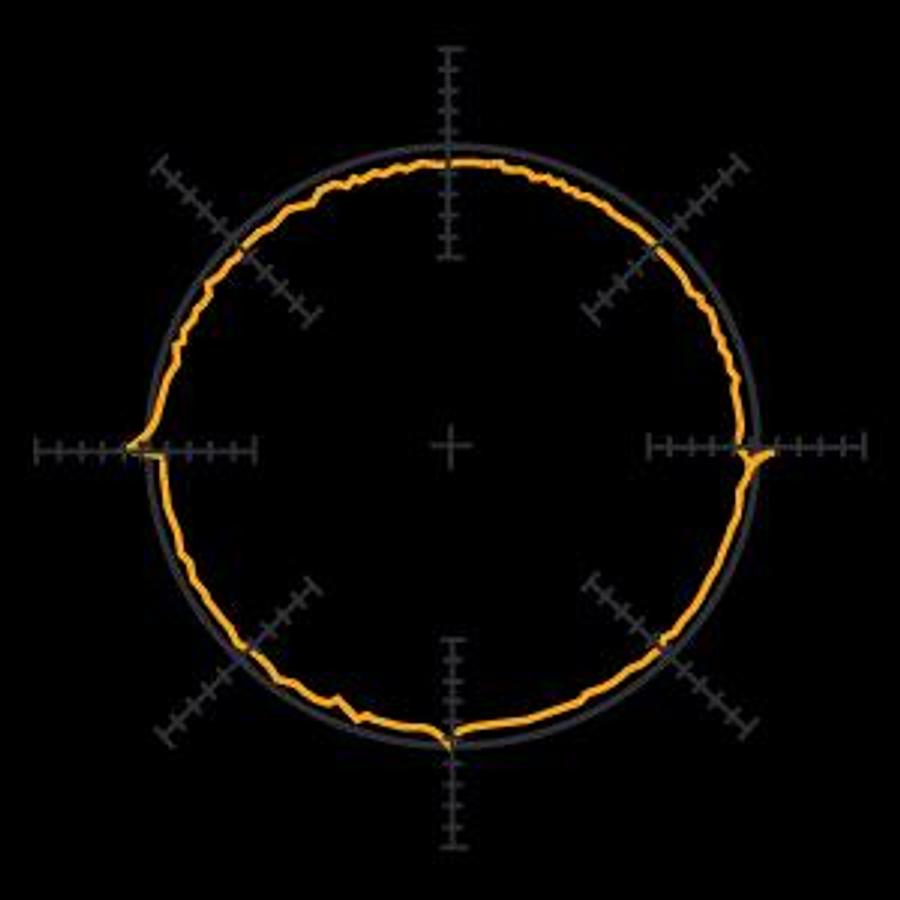

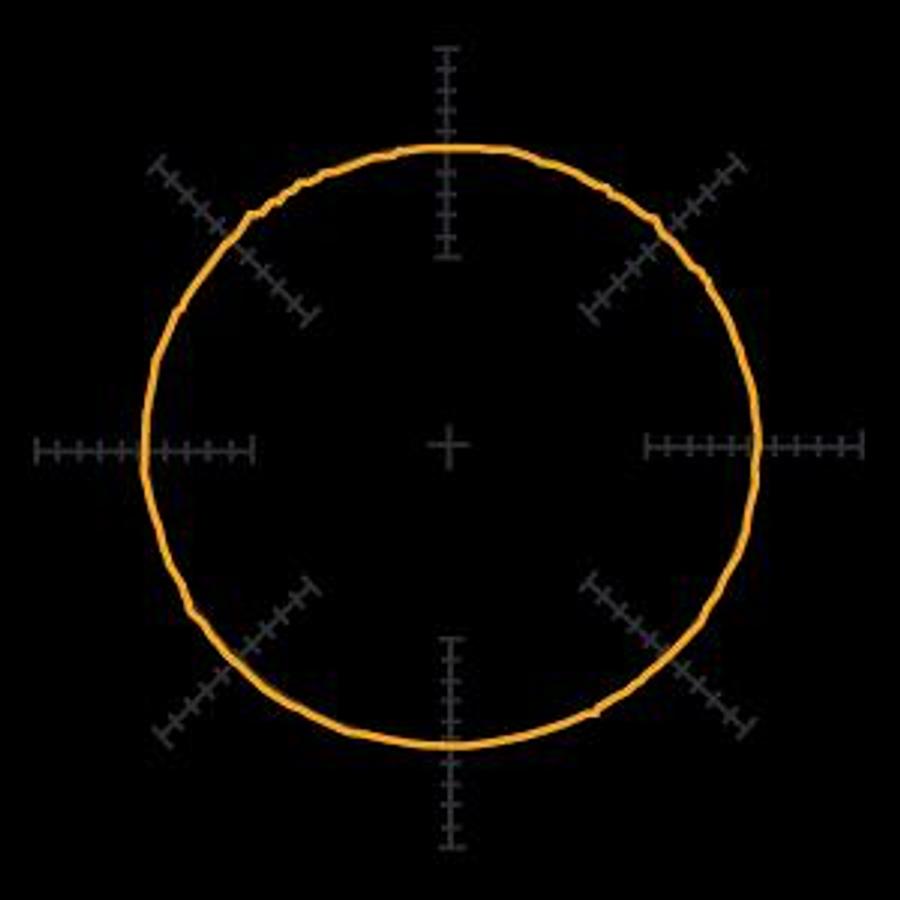

Ball Bar Inspection

Diameter : 300 mm
Feedrate : 4 m/min.
Quality : ca. 1,2t

Linear motor drive

Error : 4μm

Ball screw drive

Error : 5μm

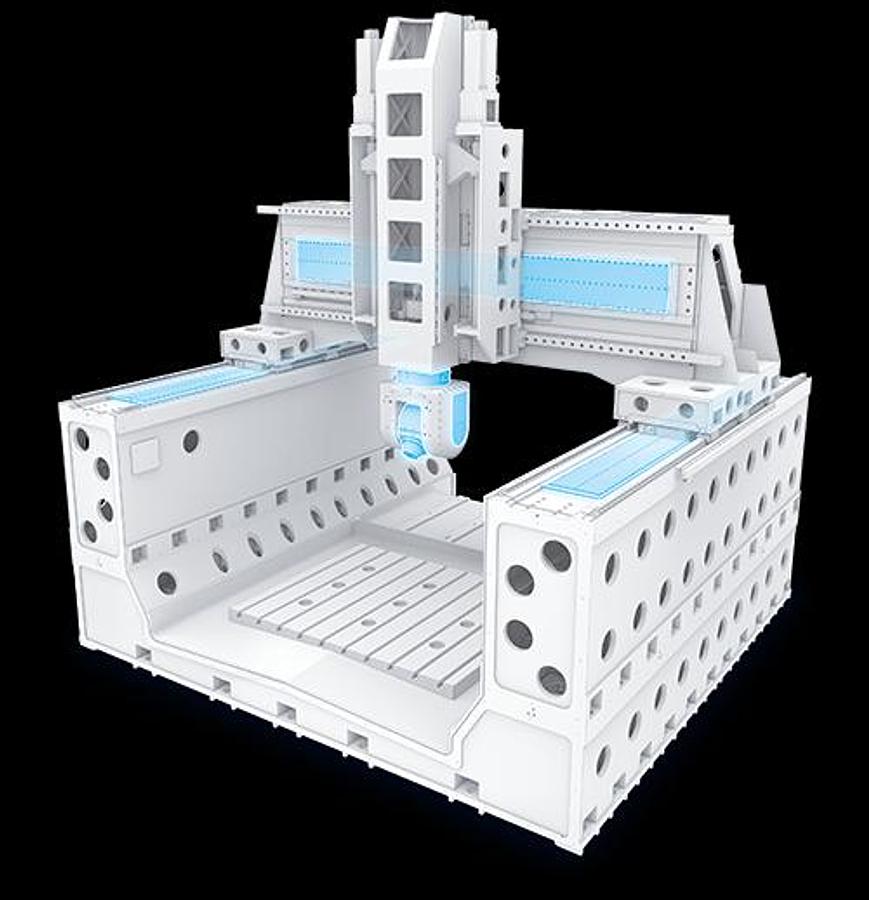

Cooling System

The built-in spindle, the B and C axes direct drive motors, as well as the X and Y axes linear motors are equipped with a comprehensive cooling system to ensure high accuracy in long-term and heavy duty operations.

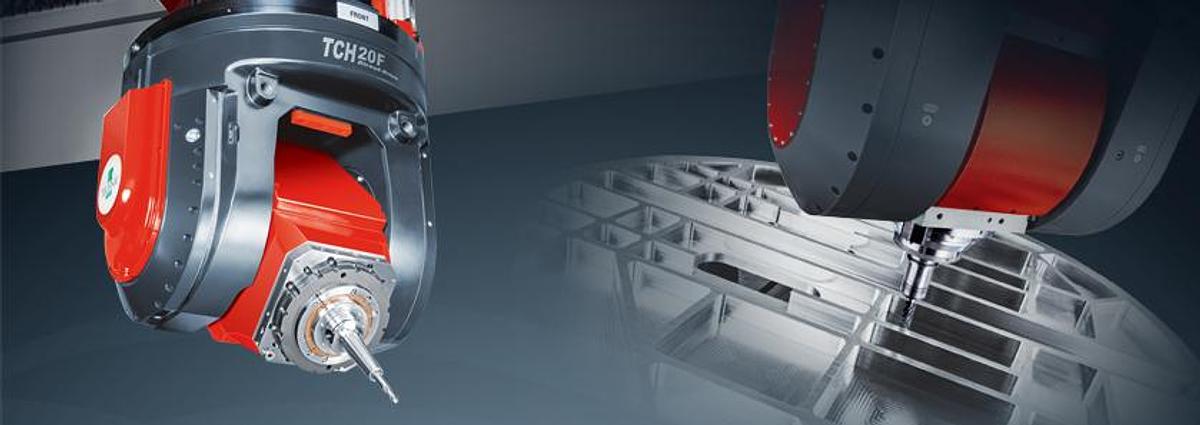

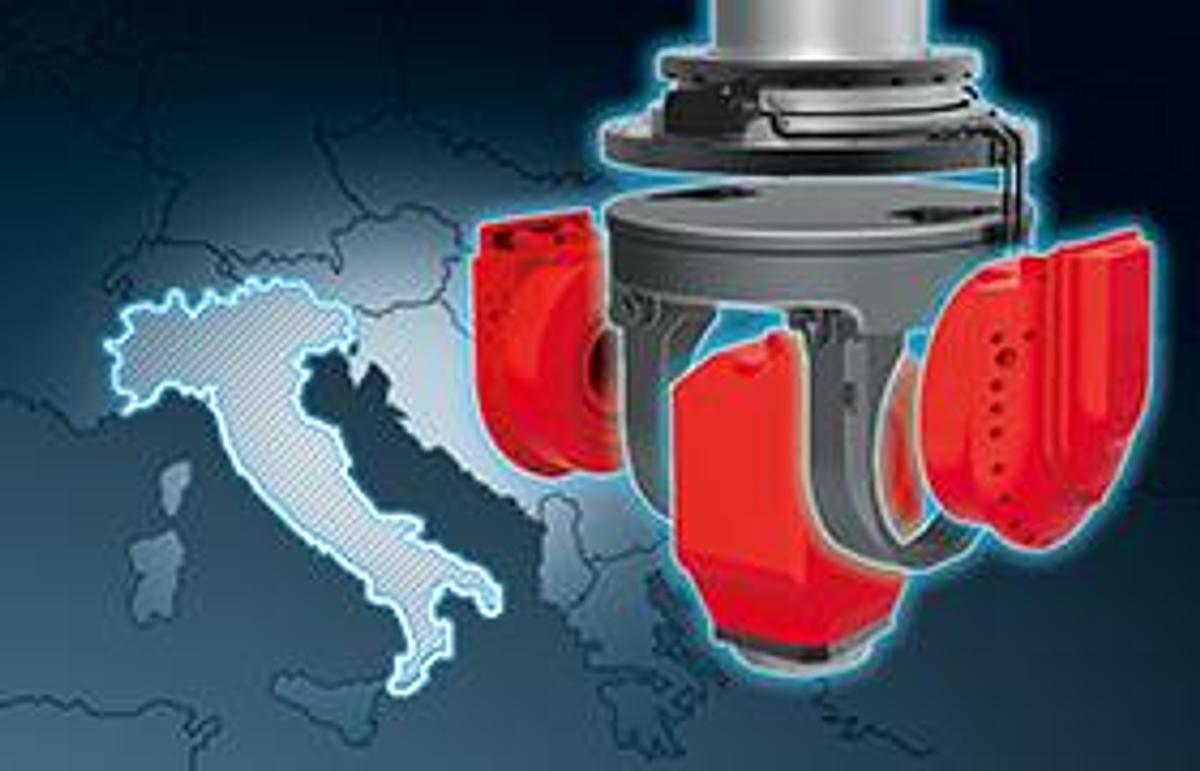

ITALIAN Made Two Axes Head

The rigid fork structure of the two axes head is made from GGG40 modular graphite cast iron and can easily sustain and disperse the complex cutting forces imposed on it during heavy cutting.

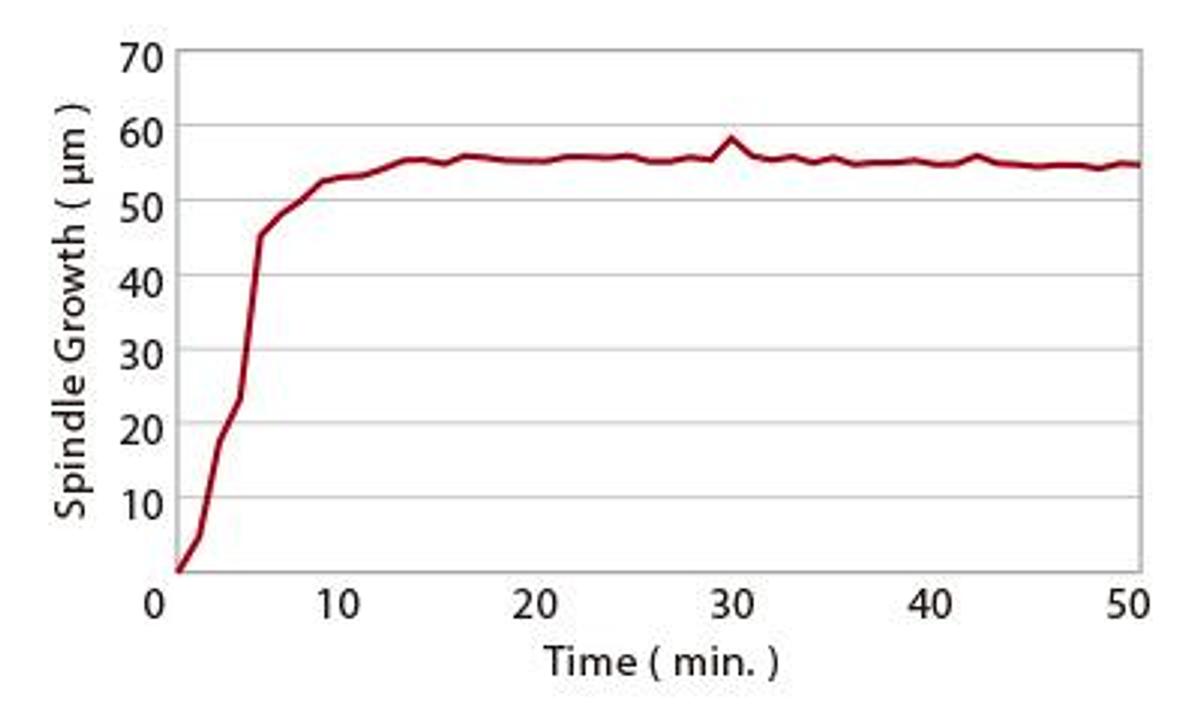

The spindle reaches thermal stability within 10 minutes from a cold start; afterwards thermal expansion is limited to less than 0.01 mm, even during long time machining.

• Driven by three direct drive motors that provide high rotation speed, high torque and zero backlash.
• Equipped with cross roller bearings to sustain axial and radial loads from all directions.
• Disk type hydraulic clamping system featuring agile response and better heat dissipation to accommodate frequent clamping demands.
• High resolution absolute encoders ensure optimal machining accuracy.

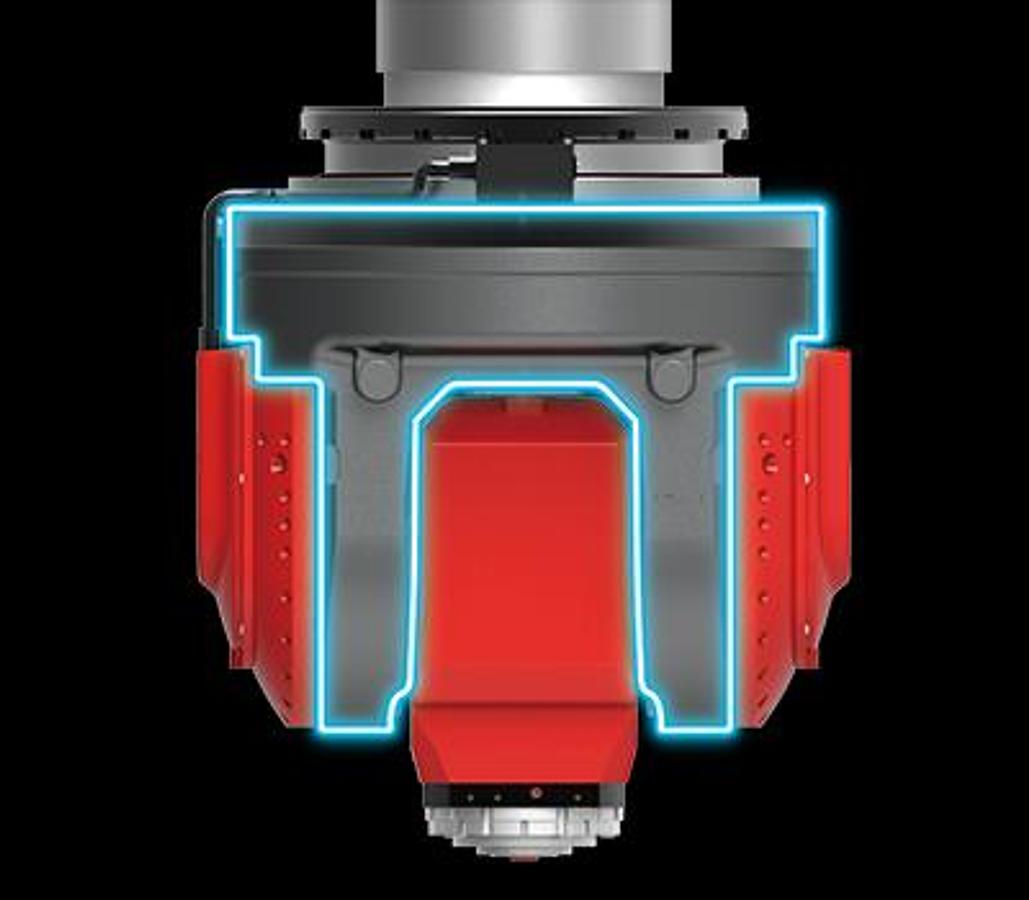

The symmetric fork structure

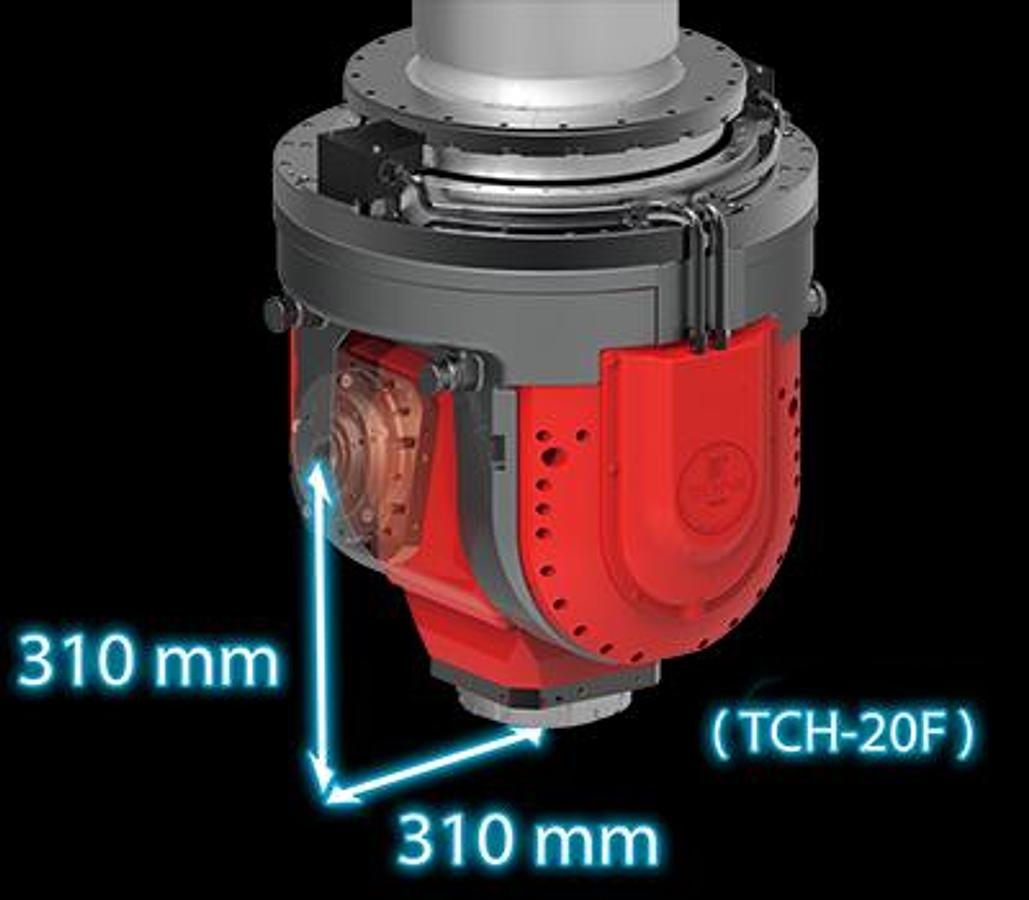

Compact design with low interference

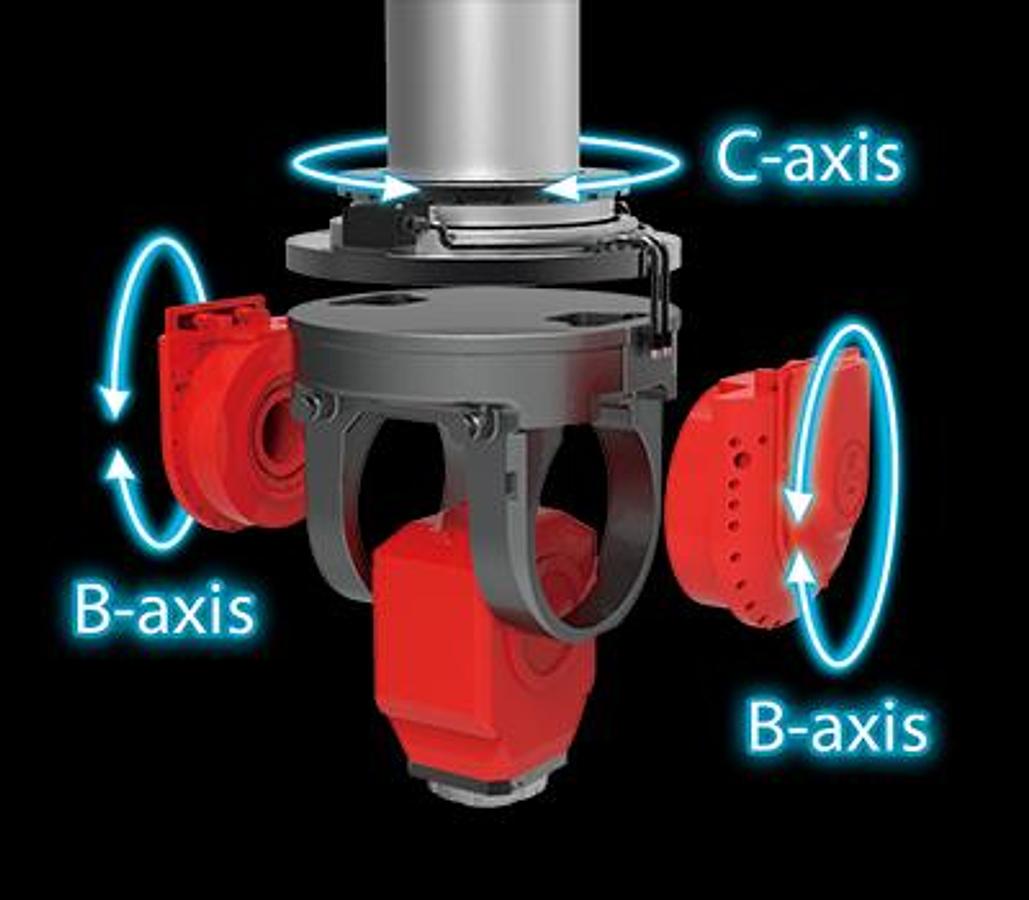

High torque direct drive motors

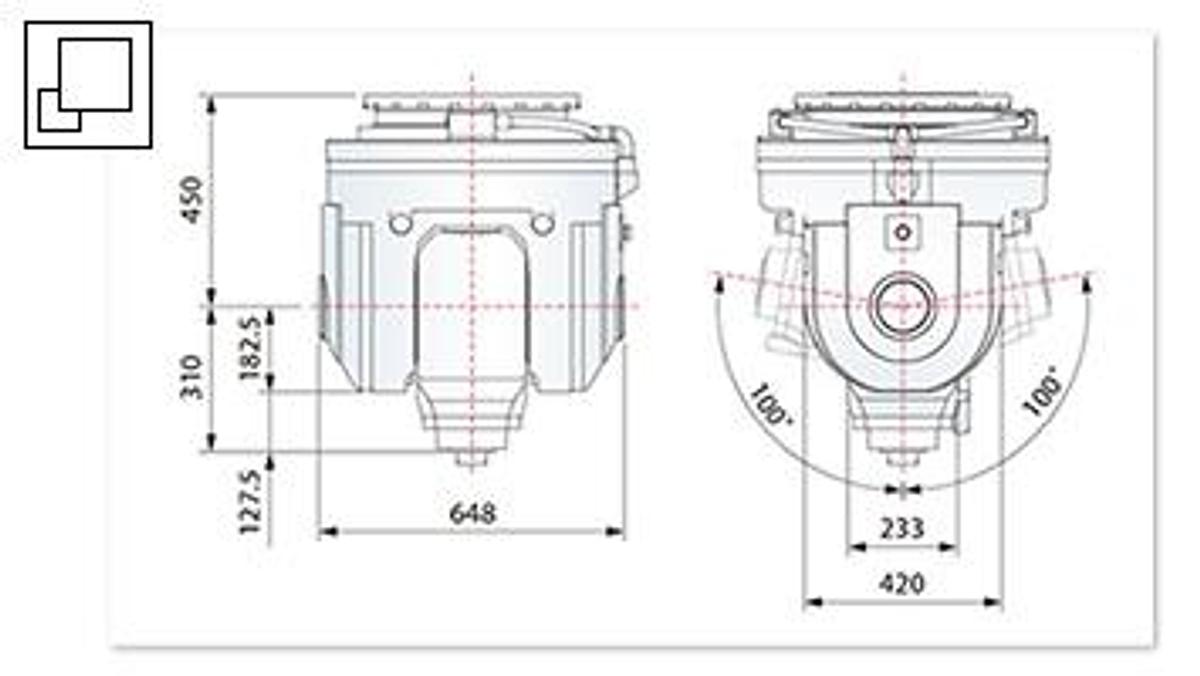

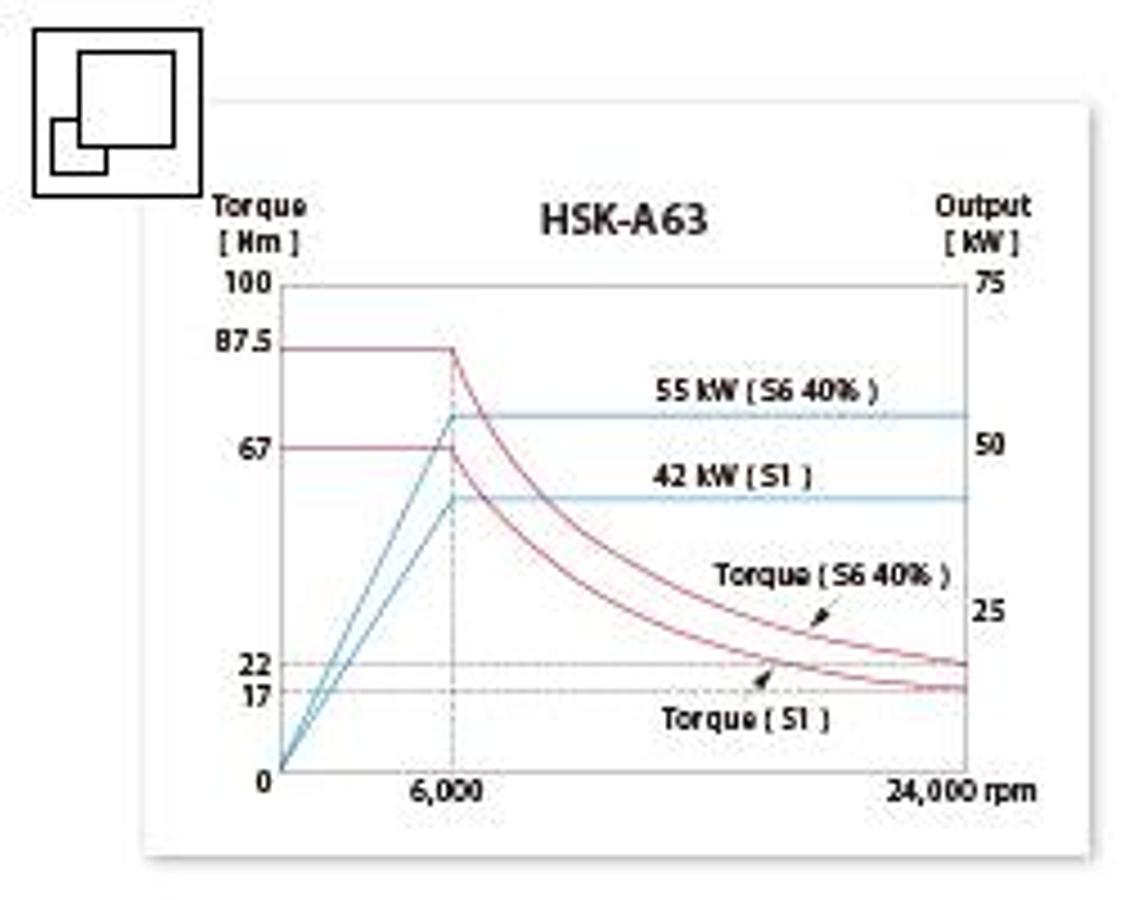

TCH-20F High Speed Built-in Spindle

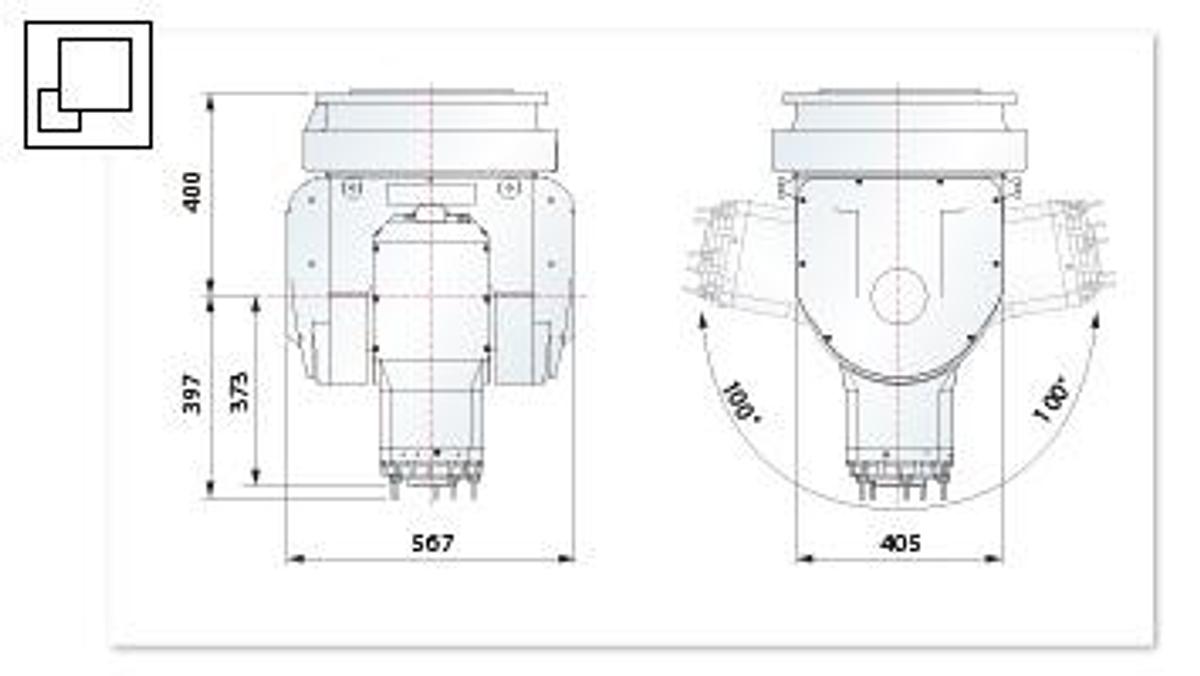

TCH-19 High Speed Built-in Spindle

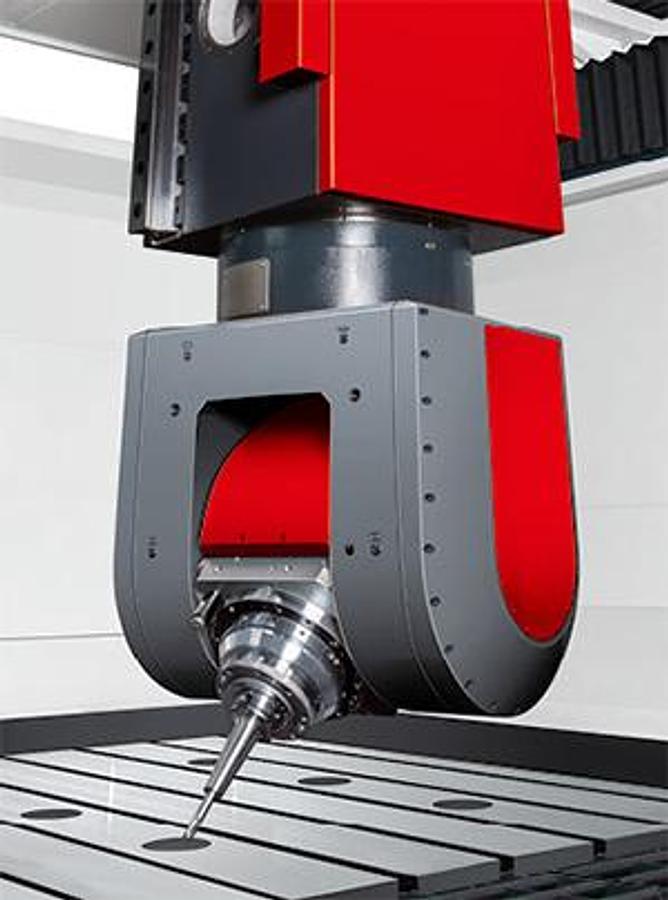

GERMAN made two axes head ( KESSLER )
