GTZ-2000Y - Multi-tasking Turning Center
Location:Boca Raton, FL
Description
Brand New Multi-Tasking Machining Technology

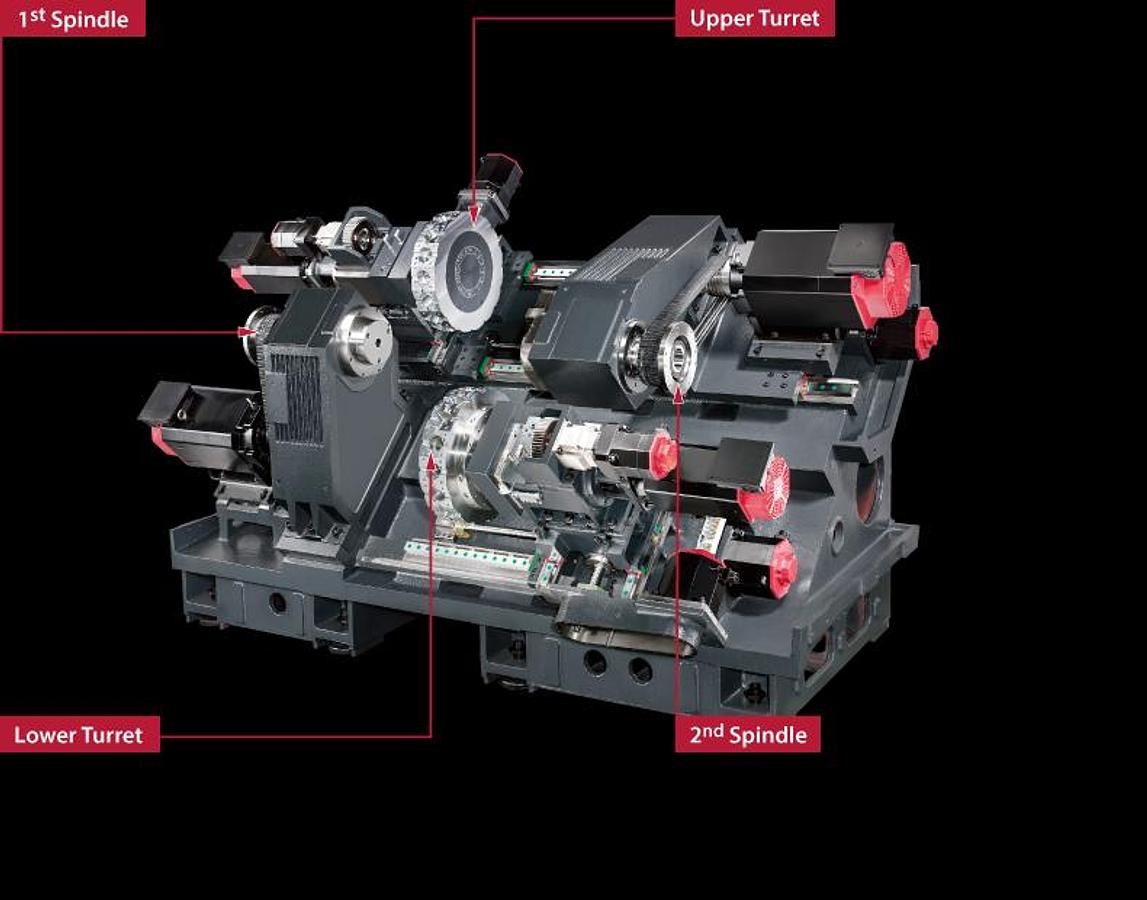

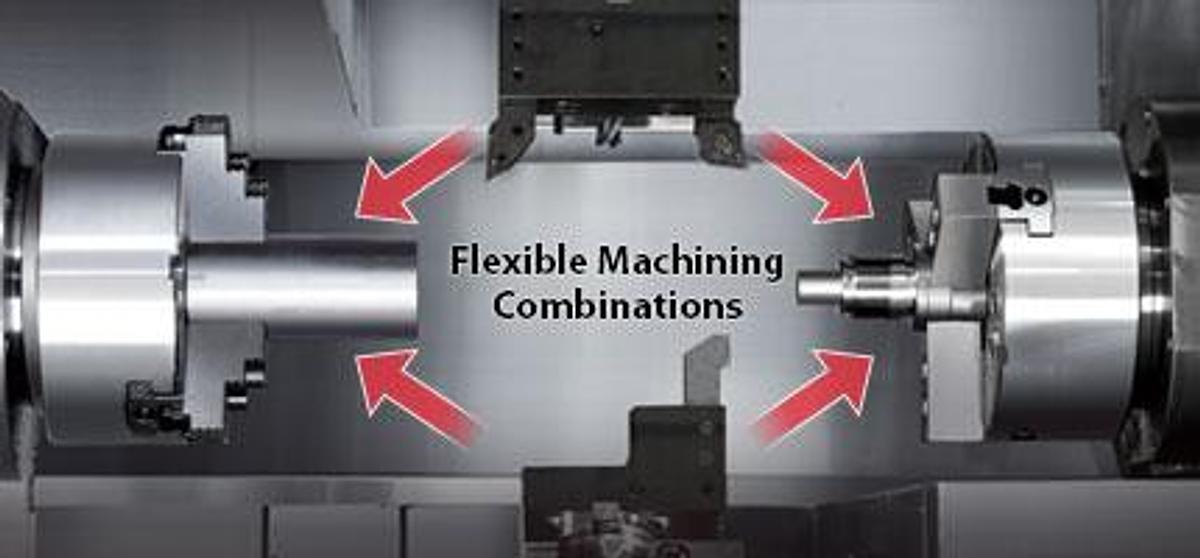

New twin spindle and twin turret combination
Upper and lower turret can be adjusted based on different machining requirements
Production capacity is 1.5 times larger than average models

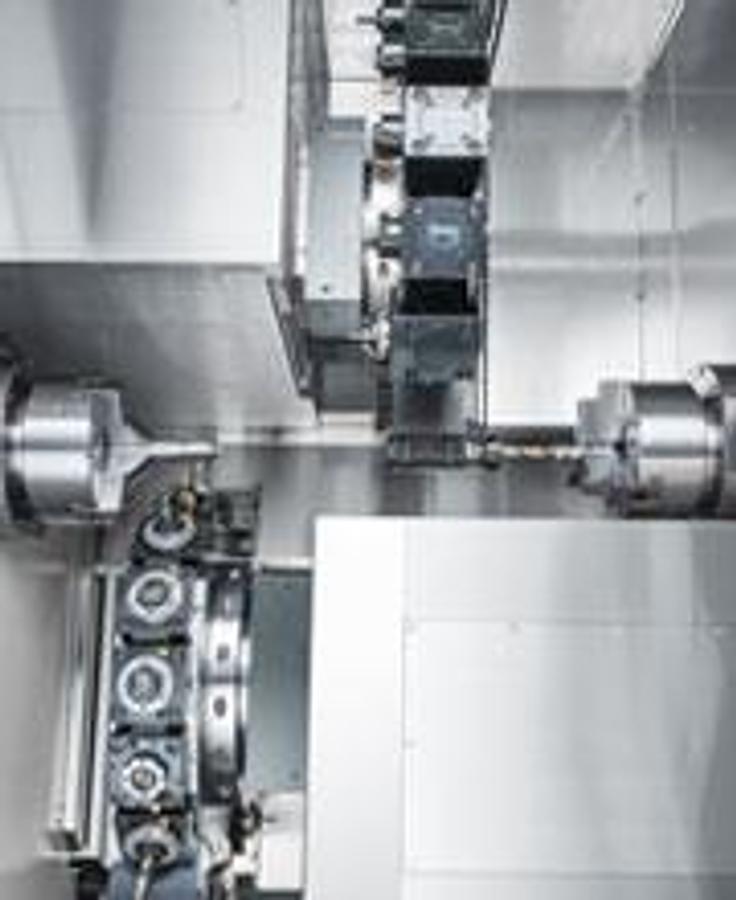

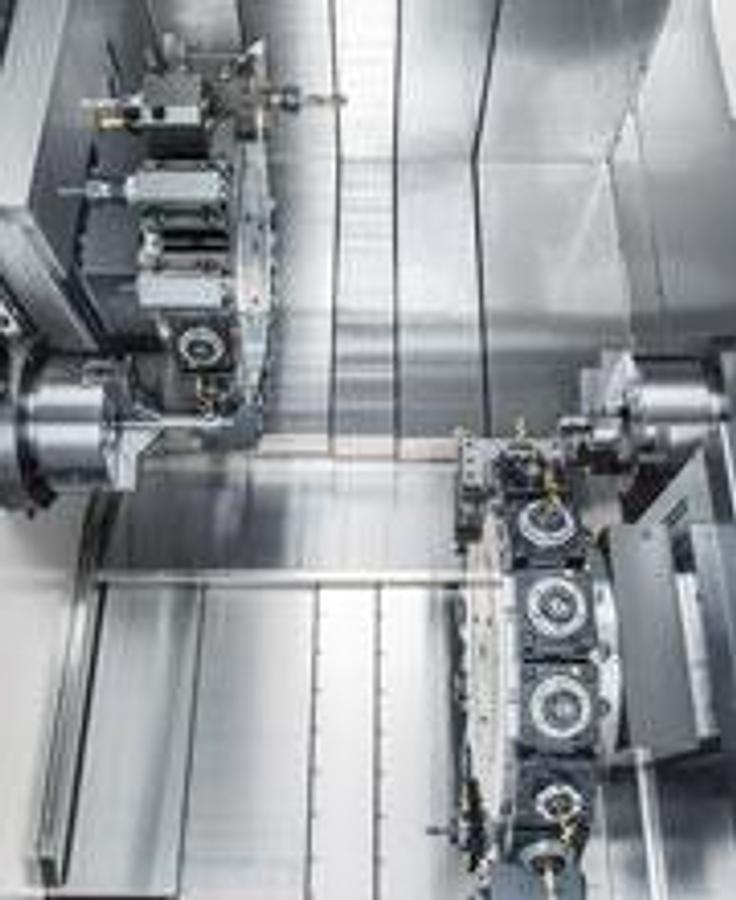

Upper turret working on left spindle, Lower turret working on right spindle
Upper turret working on right spindle, Lower turret working on left spindle
Work-piece can be moved between both spindles

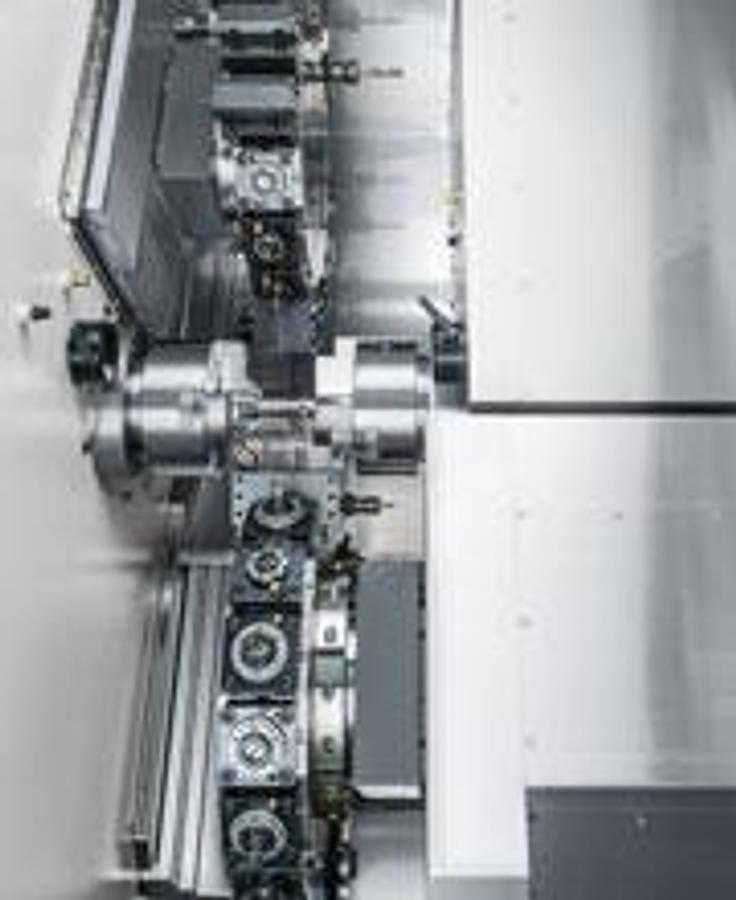

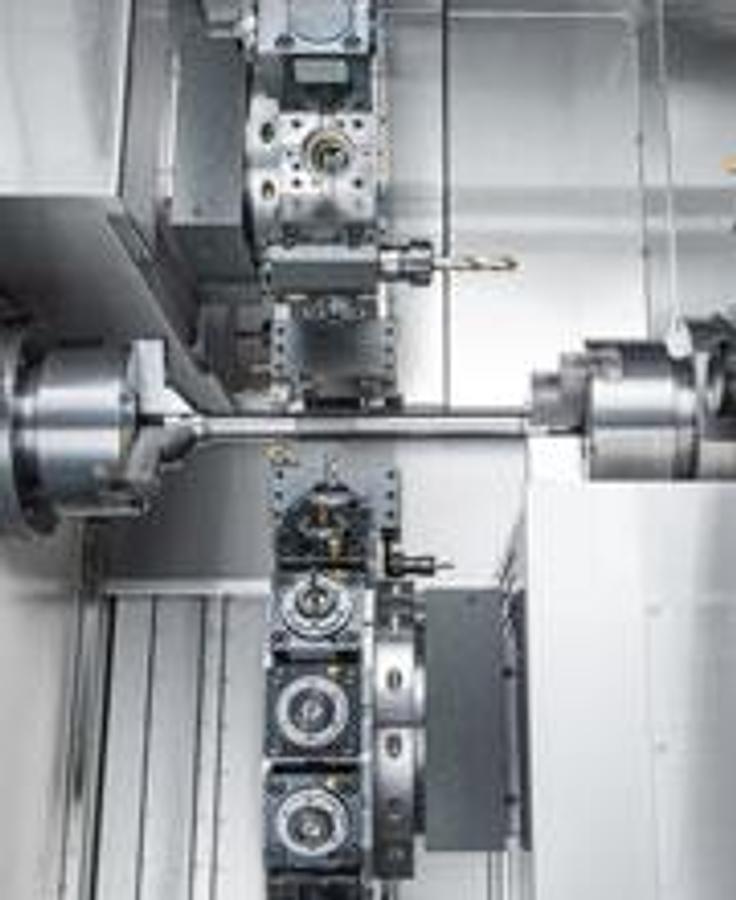

Both turrets can work on the work-piece simultaneously
High Rigidity Structure
The low center of gravity 45° slant bed design provide a super rigid foundation for the headstock and turret.
By using Finite Element Methods ( FEM ), optimal reinforced ribbings are directly cast into the one-piece bed structure.

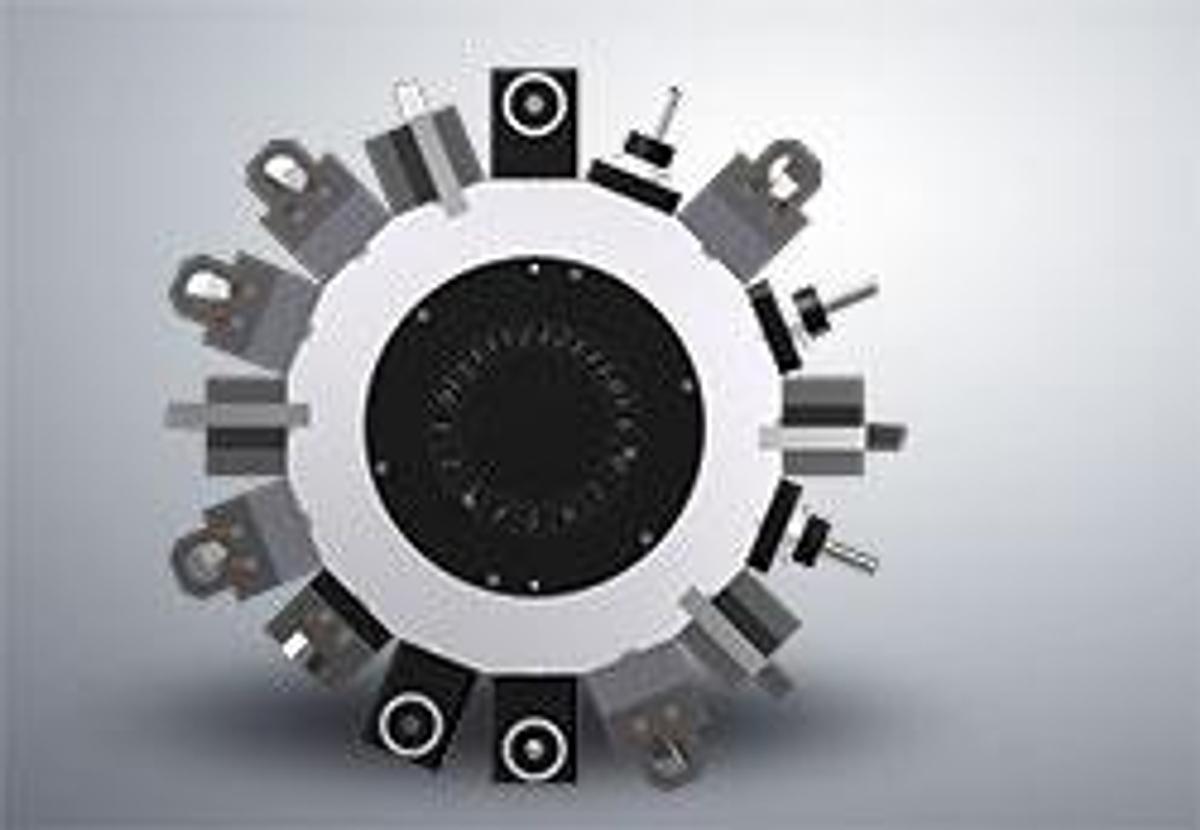

The optional 16-station turret

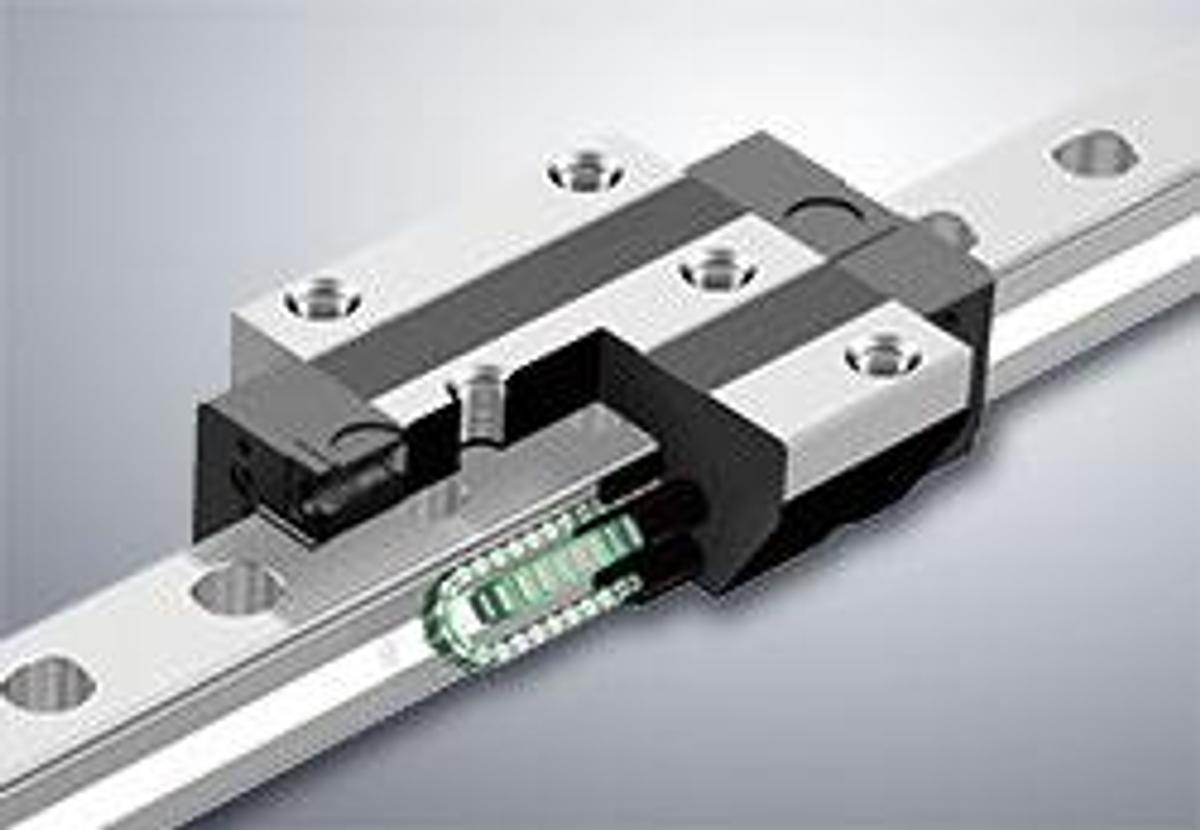

Roller type linear guide way

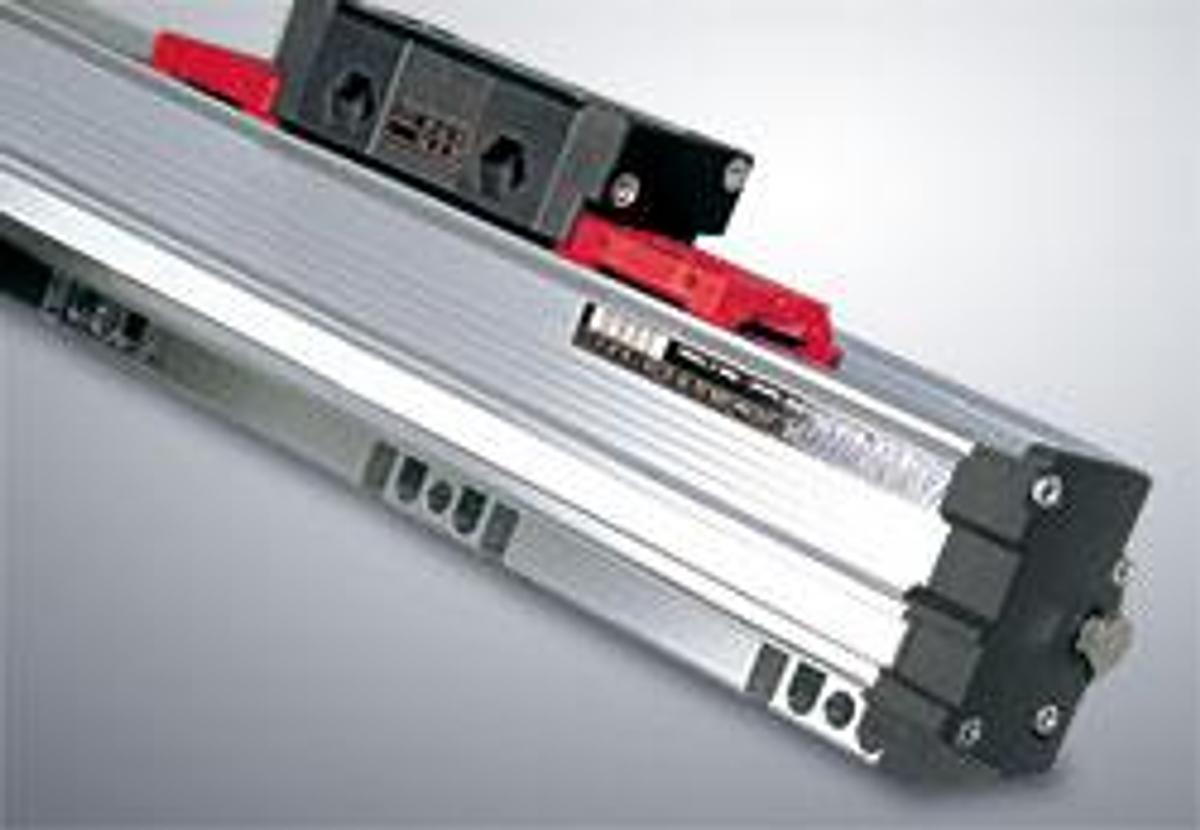

The optional high resolution close-loop linear scale
Specifications
| Manufacturer | Yama Seiki |
| Model | GTZ-2000Y |
| Condition | New |
| Stock Number | 00021 |
| Max. Swing Diameter | Ø 10.62" |
| Max. Turning Diameter | Ø 9.84" |
| Max. Turning Length | 23.77" |
| Spindle Speed | 48 ~ 4,800 rpm |
| Spindle Motor ( cont./ 30min.) | 15 / 20 HP |
| Live tooling | 12 + 12 T, C & Y Axes |
| Max. swing diameter | GTZ-2000: Ø 270 mm ( Ø 10.62" ) |
| Max. turning diameter | GTZ-2000: Ø 240 mm ( Ø 9.44" ) |
| Max. turning length | GTZ-2000: 436 mm ( 17.16" ) | GTZ-2600: 436 / 419 mm ( 17.16" / 16.49" ) |
| Chuck size | GTZ-2000: 6" ( Big-bore ) | GTZ-2600: 8" ( Big-bore ) / 10" |
| Bar capacity | GTZ-2000: Ø 51 mm ( Ø 2.00" ) | GTZ-2600: Ø 65 mm ( Ø 2.55" ) |
